XZU435L-TKFRWW3 (2006)

Toyota Dyna

Production Aug 2006 - Aug 2007
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )N04C..XZU415,425,435..DCR

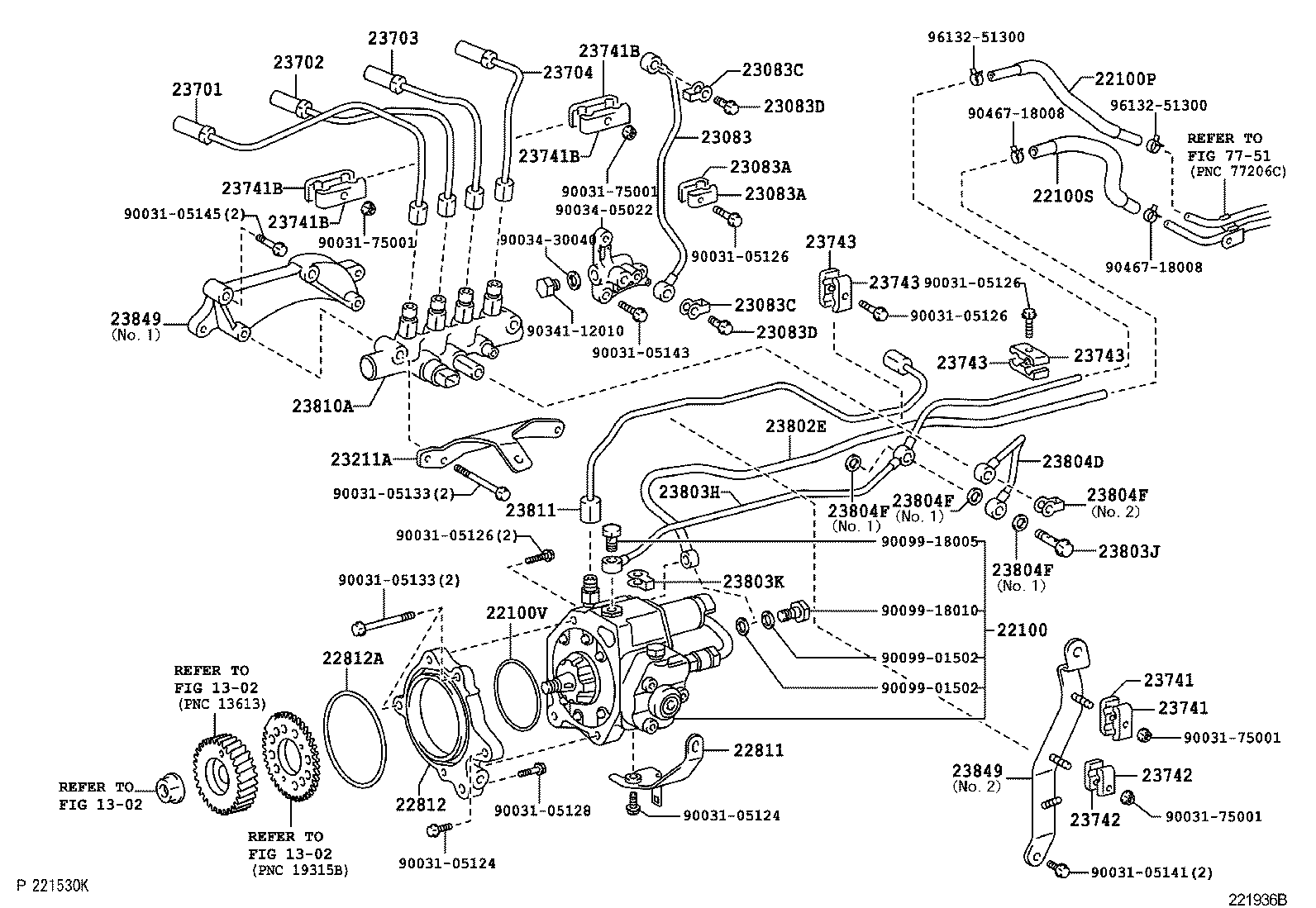

Click highlighted areas on diagram

diagram 1302 1302 1302 22100 22100P 22100S 22100V 22811 22812 22812A 23083 23083A 23083A 23083C 23083C 23083D 23083D 23211A 23701 23702 23703 23704 23741 23741 23741B 23741B 23741B 23741B 23742 23742 23743 23743 23743 23743 23802E 23803H 23803J 23803K 23804D 23804F 23804F 23804F 23804F 23810A 23811 23849 23849 7751 9003105124 9003105124 9003105126 9003105126 9003105126 9003105126 9003105128 9003105133 9003105133 9003105141 9003105143 9003105145 9003175001 9003175001 9003175001 9003175001 9003405022 9003430040 9009901502 9009901502 9009918005 9009918010 9034112010 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-78183

N04C..XZU415,425,435

 1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
23273-78050

N04C..XZU415,425,435

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23271-78050

N04C..XZU415,425,435

 1
22100V - RING, O(FOR INJECTION PUMP)
90033-01075

N04C..XZU415,425,435

 1
22811 - STAY, INJECTION PUMP, NO.1
82702-37350

N04C..XZU415,425,435

 1
22812 - RETAINER, INJECTION PUMP
22811-78110

N04C..XZU415,425,435

 1
22812A - RING, O
90033-01076

N04C..XZU415,425,435

 1
23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803-78150

N04C..XZU415,425,435

 1
23083A - CLAMP, NOZZLE LEAKAGE
90034-68024

N04C..XZU415,425,435

 2
23083A - CLAMP, NOZZLE LEAKAGE
90034-68024

N04C..XZU415,425,435

 2
23083C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90032-09020

N04C..XZU415,425,435

 2
23083C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90032-09020

N04C..XZU415,425,435

 2
23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90034-01009

N04C..XZU415,425,435

 2
23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90034-01009

N04C..XZU415,425,435

 2
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23849-78110

N04C..XZU415,425,435

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78090

N04C..XZU415,425,435

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78090

N04C..XZU415,425,435

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78090

N04C..XZU415,425,435

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78080

N04C..XZU415,425,435

 1
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68032

N04C..XZU415,425,435

 2
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68032

N04C..XZU415,425,435

 2
23741B - CLAMP, INJECTION PIPE
23741-78010

N04C..XZU415,425,435

 4
23741B - CLAMP, INJECTION PIPE
23741-78010

N04C..XZU415,425,435

 4
23741B - CLAMP, INJECTION PIPE
23741-78010

N04C..XZU415,425,435

 4
23741B - CLAMP, INJECTION PIPE
23741-78010

N04C..XZU415,425,435

 4
23742 - CLAMP, INJECTION PIPE, NO.2
90034-68026

N04C..XZU415,425,435

 2
23742 - CLAMP, INJECTION PIPE, NO.2
90034-68026

N04C..XZU415,425,435

 2
23743 - CLAMP, INJECTION PIPE, NO.3
90034-68033

N04C..XZU415,425,435

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90034-68033

N04C..XZU415,425,435

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90034-68033

N04C..XZU415,425,435

 4
23743 - CLAMP, INJECTION PIPE, NO.3
90034-68033

N04C..XZU415,425,435

 4
23802E - PIPE SUB-ASSY, FUEL
23811-78130

N04C..XZU415,425,435

 1
23803H - PIPE SUB-ASSY, FUEL RETURN
23803-78140

N04C..XZU415,425,435

 1
23803J - BOLT, UNION(FOR FUEL RETURN PIPE)
90031-09074

N04C..XZU415,425,435

 1
23803K - GASKET(FOR FUEL RETURN PIPE)
90032-09021

N04C..XZU415,425,435

 1
23804D - PIPE SUB-ASSY, FUEL, NO.4
23803-78160

N04C..XZU415,425,435

 1
23804F - GASKET(FOR FUEL PIPE NO.4)
90032-09021

N04C..XZU415,425,435

NO.2

 1
90034-30040

N04C..XZU415,425,435

NO.1

 3
23804F - GASKET(FOR FUEL PIPE NO.4)
90032-09021

N04C..XZU415,425,435

NO.2

 1
90034-30040

N04C..XZU415,425,435

NO.1

 3
23804F - GASKET(FOR FUEL PIPE NO.4)
90032-09021

N04C..XZU415,425,435

NO.2

 1
90034-30040

N04C..XZU415,425,435

NO.1

 3
23804F - GASKET(FOR FUEL PIPE NO.4)
90032-09021

N04C..XZU415,425,435

NO.2

 1
90034-30040

N04C..XZU415,425,435

NO.1

 3
23810A - RAIL ASSY, COMMON
23810-78020

N04C..XZU415,425,435

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78120

N04C..XZU415,425,435

 1
23849 - SUPPORT, FUEL
23849-78060

N04C..XZU415,425,435

NO.2

 1
23849-78050

N04C..XZU415,425,435

NO.1

 1
23849 - SUPPORT, FUEL
23849-78060

N04C..XZU415,425,435

NO.2

 1
23849-78050

N04C..XZU415,425,435

NO.1

 1
Common parts
90031-05124
90031-05126
90031-05128
90031-05133
90031-05141
90031-05143
90031-05145
90031-75001
90034-05022
90034-30040
90099-01502
90099-18005
90099-18010
90341-12010
90467-18008
96132-51300
Linked diagrams
1302
7751
