XZU435L-TKFRWW3 (2006)

Toyota Dyna

Production Aug 2006 - Aug 2007
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )N04C..XZU415,425,435..DCR

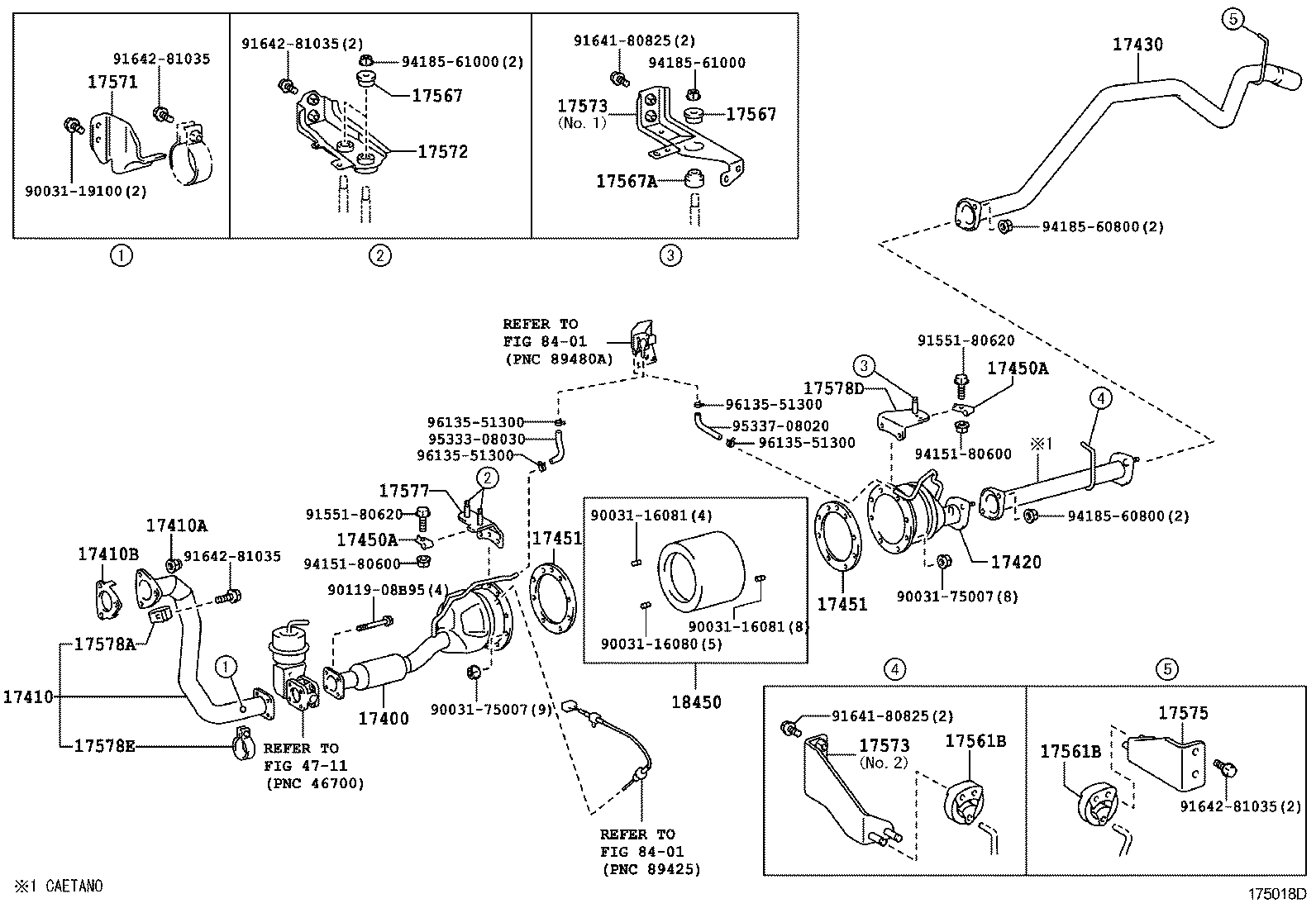

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17420 17430 17450A 17450A 17451 17451 17561B 17561B 17567 17567 17567A 17571 17572 17573 17573 17575 17577 17578A 17578D 17578E 18450 4711 8401 8401 9003116080 9003116081 9003116081 9003119100 9003175007 9003175007 9011908B95 9155180620 9155180620 9164180825 9164180825 9164281035 9164281035 9164281035 9164281035 9415180600 9415180600 9418560800 9418560800 9418561000 9418561000 9533308030 9533708020 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17406-78170

N04C..XZU415,425,435

*114=TOYOTA/7809/Y

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78201

N04C..XZU415,425,435

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XZU415,425,435

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C..XZU415,425,435

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78600

N04C..XZU415,425,435

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78780

N04C..XZU415,425,435

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78021

N04C..XZU415,425,435

 2
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78021

N04C..XZU415,425,435

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU415,425,435

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU415,425,435

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XZU415,425,435

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

N04C..XZU415,425,435

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030

N04C..XZU415,425,435

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030

N04C..XZU415,425,435

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78040

N04C..XZU415,425,435

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050

N04C..XZU415,425,435

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210

N04C..XZU415,425,435

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230

N04C..XZU415,425,435

NO.1

 1
17573-78240

N04C..XZU415,425,435

NO.2

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230

N04C..XZU415,425,435

NO.1

 1
17573-78240

N04C..XZU415,425,435

NO.2

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78220

N04C..XZU415,425,435

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78060

N04C..XZU415,425,435

 1
17578A - CLAMP, MUFFLER
17578-78020

N04C..XZU415,425,435

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78120

N04C..XZU415,425,435

 1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78080

N04C..XZU415,425,435

*115=TOYOTA/7808/Y

 1
Common parts
90031-16080
90031-16081
90031-19100
90031-75007
90119-08B95
91551-80620
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08030
95337-08020
96135-51300
Linked diagrams
4711
8401
