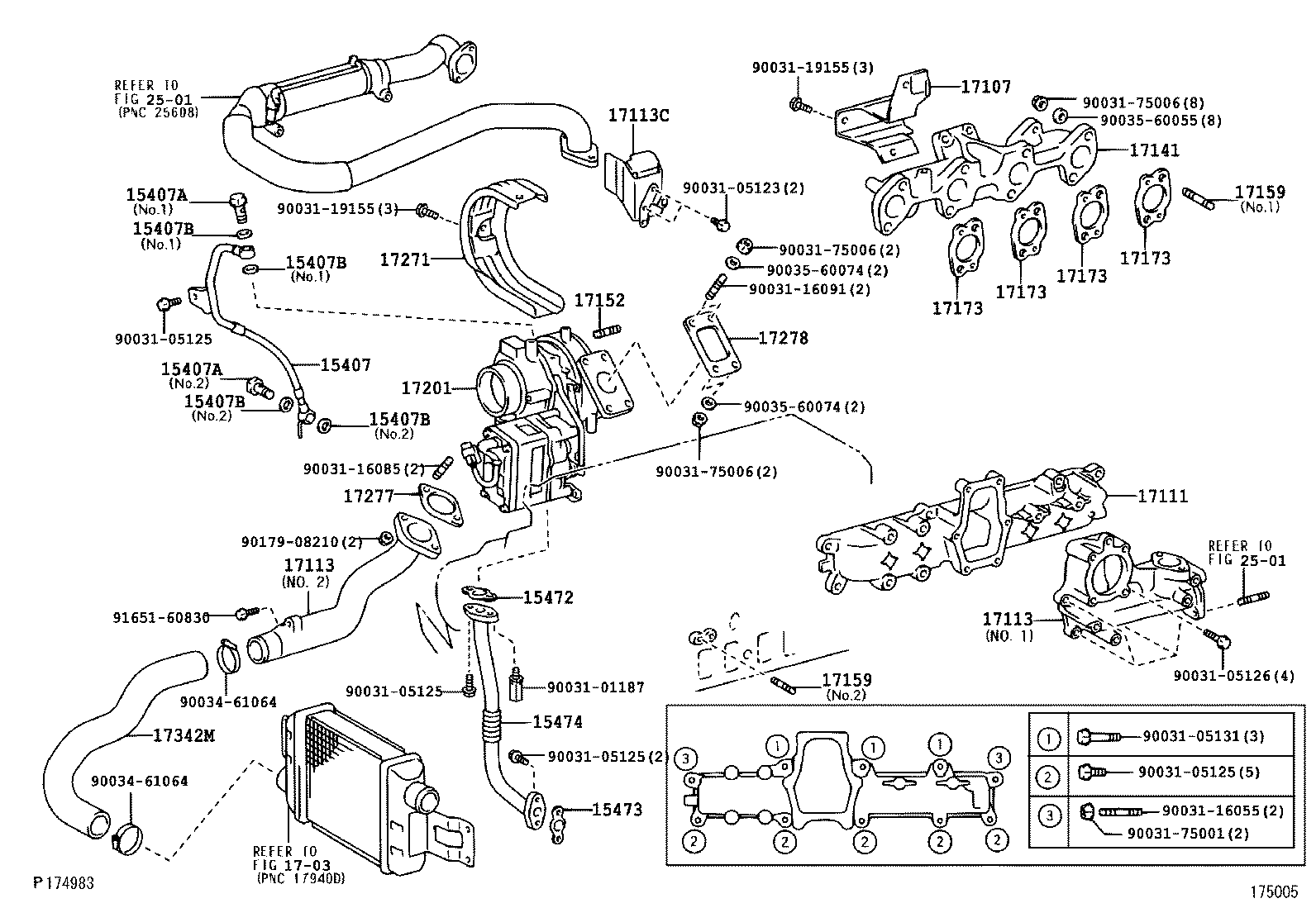

XZU435L-TKFRWW3 (2006)
Toyota Dyna
(0608- )N04C..XZU415,425,435..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 29601-78090 |
N04C..XZU415,425,435 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90031-09073 |
N04C..XZU415,425,435 NO.1 |
1 | ||
| 90034-01010 |
N04C..XZU415,425,435 NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90031-09073 |
N04C..XZU415,425,435 NO.1 |
1 | ||
| 90034-01010 |
N04C..XZU415,425,435 NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZU415,425,435 NO.1 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZU415,425,435 NO.1 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZU415,425,435 NO.1 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZU415,425,435 NO.1 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15471-78011 |
N04C..XZU415,425,435 |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78011 |
N04C..XZU415,425,435 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78110 |
N04C..XZU415,425,435 |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78061 |
N04C..XZU415,425,435 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZU415,425,435 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78100 |
N04C..XZU415,425,435 NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU415,425,435 NO.1 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78100 |
N04C..XZU415,425,435 NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU415,425,435 NO.1 |
1 | ||
| 17113C - INSULATOR, INTAKE PIPE | ||||
| 17107-78080 |
N04C..XZU415,425,435 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78100 |
N04C..XZU415,425,435 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZU415,425,435 NO.1 |
8 | ||
| 90031-16085 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZU415,425,435 NO.1 |
8 | ||
| 90031-16085 |
N04C..XZU415,425,435 NO.2 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZU415,425,435 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZU415,425,435 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZU415,425,435 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZU415,425,435 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78031 |
N04C..XZU415,425,435 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78020 |
N04C..XZU415,425,435 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-78020 |
N04C..XZU415,425,435 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-78020 |
N04C..XZU415,425,435 |
1 | ||
| 17342M - HOSE, AIR, NO.2 | ||||
| 17342-78010 |
N04C..XZU415,425,435 |
1 | ||
| Common parts | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16091 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90034-61064 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| 90179-08210 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||
