Toyota Dyna XZU430 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
GR
DYNA
XZU430R-TKFTSN3 (2003)
2202 - INJECTION PUMP ASSEMBLY

XZU430R-TKFTSN3 (2003)

Toyota Dyna

Production Apr 2003 - Feb 2008

Engine J05C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

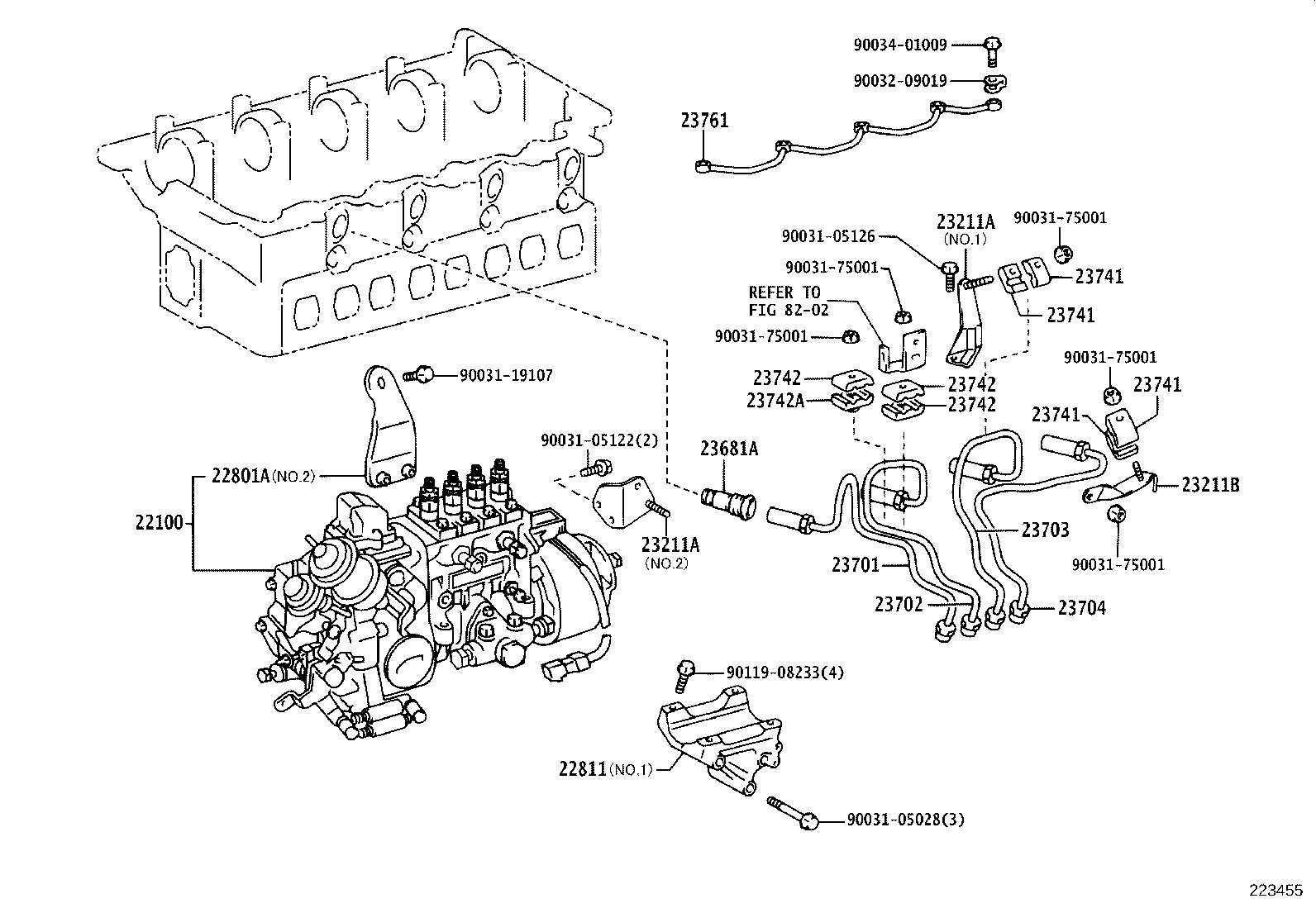

ILLUST NO. 1 OF 2(0304- )J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78390	J05C..XZU420,430	04/2003 - 10/2004	1
22010-78320	J05C..XZU420,430	10/2004 - 02/2008	1
22801A - BRACKET SUB-ASSY, INJECTION PUMP
22801-78041	J05C..XZU420,430 NO.1	04/2003 - 02/2008	1
22801-78070	J05C..XZU420,430 NO.2	04/2003 - 02/2008	1
22811 - STAY, INJECTION PUMP, NO.1
22811-78070	J05C..XZU420,430	04/2003 - 02/2008	1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23211-78140	J05C..XZU420,430 NO.2	04/2003 - 02/2008	1
23211-78040	J05C..XZU420,430 NO.1	04/2003 - 02/2008	1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23211-78140	J05C..XZU420,430 NO.2	04/2003 - 02/2008	1
23211-78040	J05C..XZU420,430 NO.1	04/2003 - 02/2008	1
23211B - BRACKET(FOR INJECTION PIPE NO.4)
23211-78030	J05C..XZU420,430	04/2003 - 02/2008	1
23681A - SEAL, NOZZLE HOLDER
23681-78010	J05C,S05C..XZU412,420,422,430..6F	10/2001 - 02/2008	4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78110	J05C..XZU420,430	10/2004 - 02/2008	1
23701-78030	J05C..XZU420,430	04/2003 - 10/2004	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78030	J05C..XZU420,430	04/2003 - 10/2004	1
23702-78110	J05C..XZU420,430	10/2004 - 02/2008	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78110	J05C..XZU420,430	10/2004 - 02/2008	1
23703-78030	J05C..XZU420,430	04/2003 - 10/2004	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78030	J05C..XZU420,430	04/2003 - 10/2004	1
23704-78100	J05C..XZU420,430	10/2004 - 02/2008	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU420,430	04/2003 - 02/2008	5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU420,430	04/2003 - 02/2008	5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU420,430	04/2003 - 02/2008	5
23742A - CLAMP, INJECTION PIPE, NO.3
23742-78040	J05C..XZU420,430	04/2003 - 02/2008	1
Common parts
90031-05028
90031-05122
90031-05126
90031-19107
90031-75001
90032-09019
90034-01009
90119-08233
Linked diagrams
8202

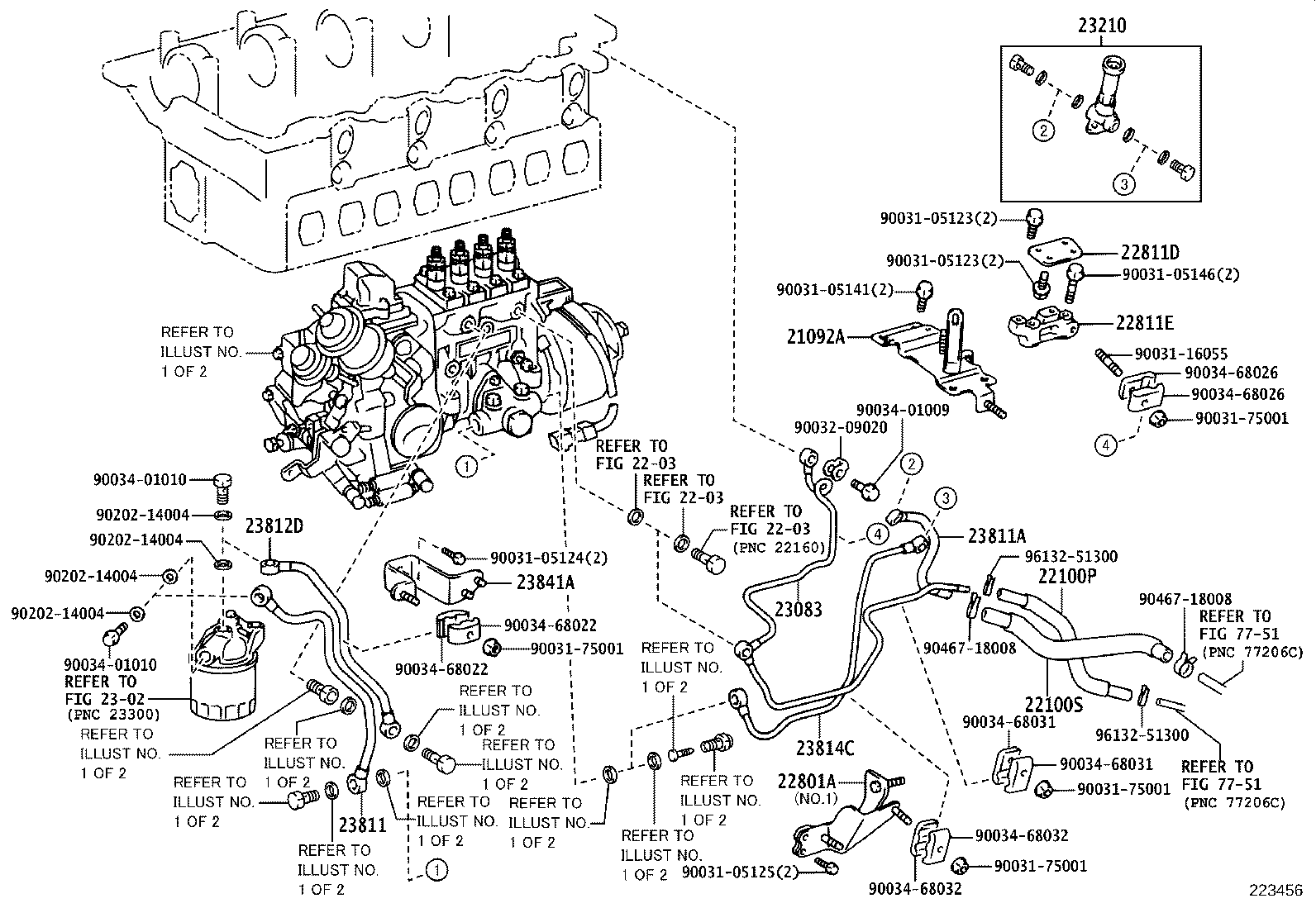

ILLUST NO. 2 OF 2(0304- )J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty
21092A - BRACKET SUB-ASSY, SOLENOID VALVE
21092-78010	J05C..XZU420,430	04/2003 - 02/2008	1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
23273-78050	J05C,S05C..XZU412,420,422,430..6F	10/2001 - 02/2008	1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23271-78050	J05C,S05C..XZU412,420,422,430..6F	10/2001 - 02/2008	1
22801A - BRACKET SUB-ASSY, INJECTION PUMP
22801-78041	J05C..XZU420,430 NO.1	04/2003 - 02/2008	1
22801-78070	J05C..XZU420,430 NO.2	04/2003 - 02/2008	1
22811D - STAY, INJECTION PUMP, NO.2
22811-78040	J05C..XZU420,430	04/2003 - 02/2008	1
22811E - STAY, INJECTION PUMP, NO.3
22811-78050	J05C..XZU420,430	04/2003 - 02/2008	1
23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803-78010	J05C..XZU420,430	04/2003 - 02/2008	1
23210 - PUMP ASSY, FUEL(FOR DIESEL)
23210-78010	J05C..XZU420,430	04/2003 - 02/2008	1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78010	J05C..XZU420,430	04/2003 - 02/2008	1
23811A - PIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23811-78050	J05C..XZU420,430	04/2003 - 02/2008	1
23812D - PIPE, FUEL, NO.2
23812-78010	J05C..XZU420,430	04/2003 - 02/2008	1
23814C - PIPE, FUEL DELIVERY
23814-78020	J05C..XZU420,430	04/2003 - 02/2008	1
23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23841-78010	J05C..XZU420,430	04/2003 - 02/2008	1
Common parts
90031-05123
90031-05124
90031-05125
90031-05141
90031-05146
90031-16055
90031-75001
90032-09020
90034-01009
90034-01010
90034-68022
90034-68026
90034-68031
90034-68032
90202-14004
90467-18008
96132-51300
Linked diagrams
2203
2302
7751

XZU430R-TKFTSN3 (2003)

ILLUST NO. 1 OF 2(0304- )J05C

ILLUST NO. 2 OF 2(0304- )J05C
