XZU430-TKFSS3 (2000)
Toyota Dyna

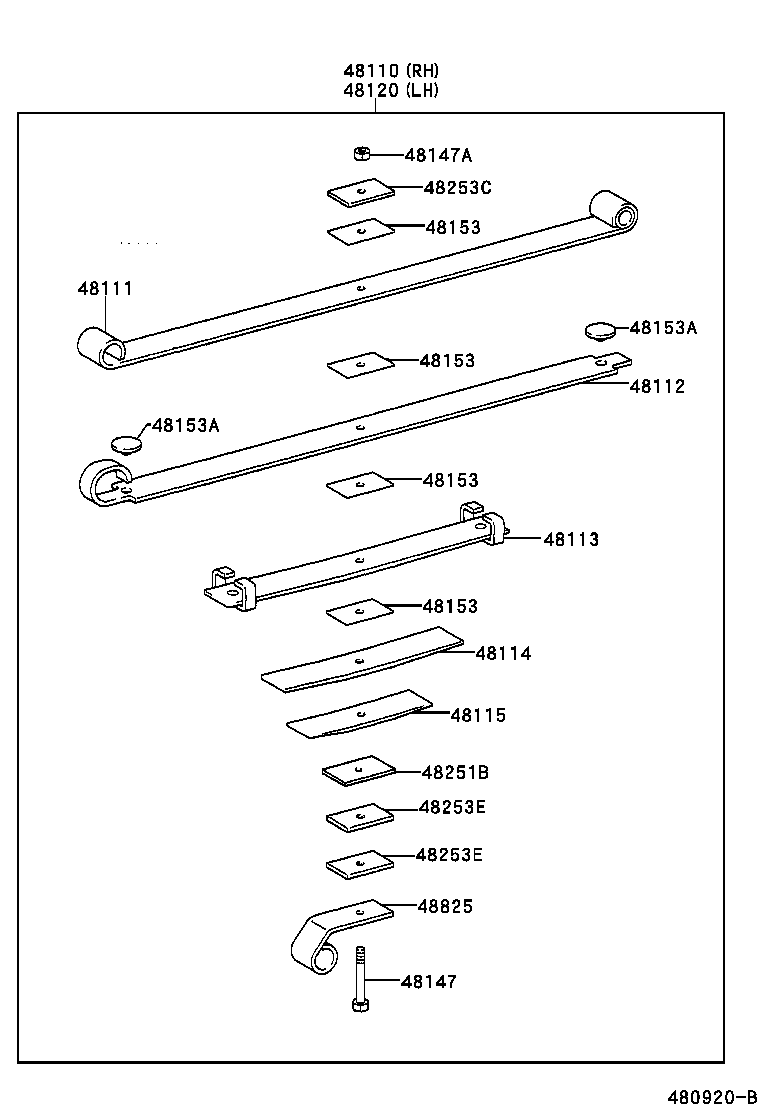

ILLUST NO. 2 OF 2(0010- )XZU410,420,430
6-LEAF,HEAVY DUTY SPRING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37650 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37590 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37730 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48110-37780 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48101-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48101-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48101-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48112-37740 |
XZU410,420,430 W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48112-37730 |
XZU410,420,430 W(STABILIZER),DRIVER SIDE |
1 | ||
| 48112-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48104-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48104-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48104-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48104-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48114-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48114-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48115-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48115-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37660 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37790 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48110-37600 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37740 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU410,420,430 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU410,420,430 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37780 |
XZU410,420,430 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZU402,41#,420,430 |
2 | ||

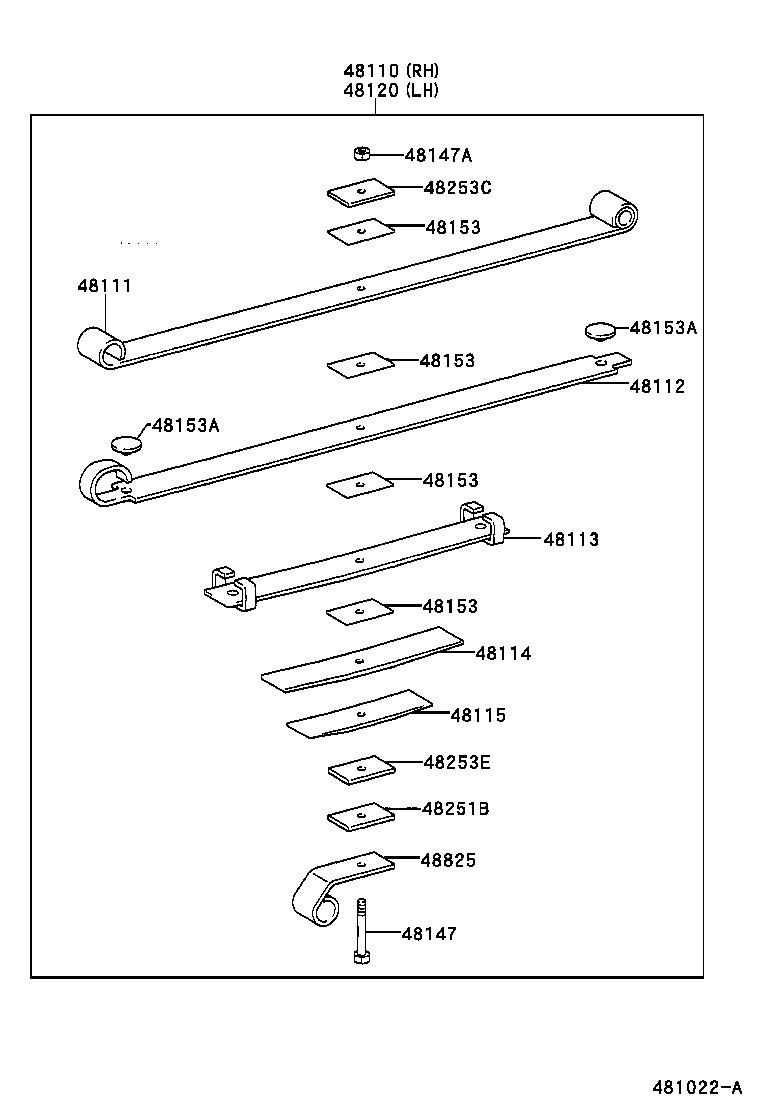

ILLUST NO. 2 OF 2(0010- )XZU410,420,430
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37650 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37590 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37730 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48110-37780 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48101-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48101-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48101-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48112-37740 |
XZU410,420,430 W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48112-37730 |
XZU410,420,430 W(STABILIZER),DRIVER SIDE |
1 | ||
| 48112-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48104-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48104-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48104-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48104-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48114-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48114-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48115-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48115-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37660 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37790 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48110-37600 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37740 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU410,420,430 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU410,420,430 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37780 |
XZU410,420,430 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||

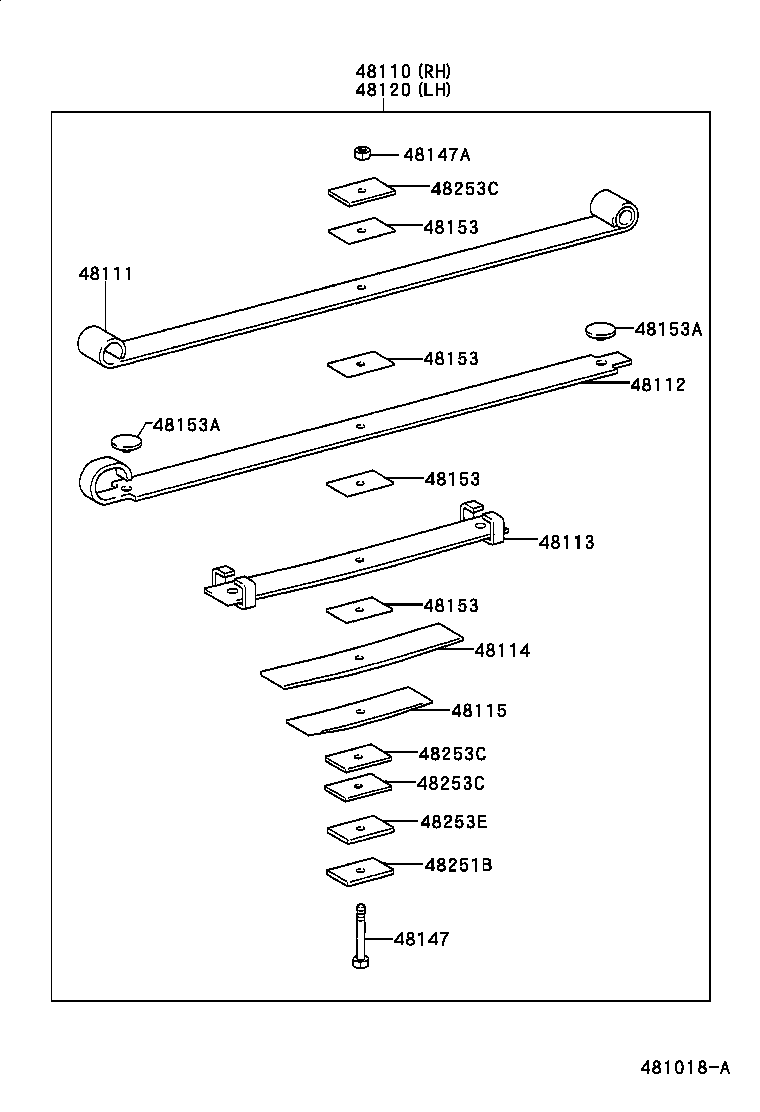

ILLUST NO. 2 OF 2(0010- )XZU410,420,430
5-LEAF,HEAVY DUTY SPRING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37650 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37590 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37730 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48110-37780 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48101-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48101-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48101-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48112-37740 |
XZU410,420,430 W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48112-37730 |
XZU410,420,430 W(STABILIZER),DRIVER SIDE |
1 | ||
| 48112-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48104-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48104-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48104-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48104-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48114-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48114-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48115-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48115-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37660 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37790 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48110-37600 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37740 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU410,420,430 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU410,420,430 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37780 |
XZU410,420,430 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||

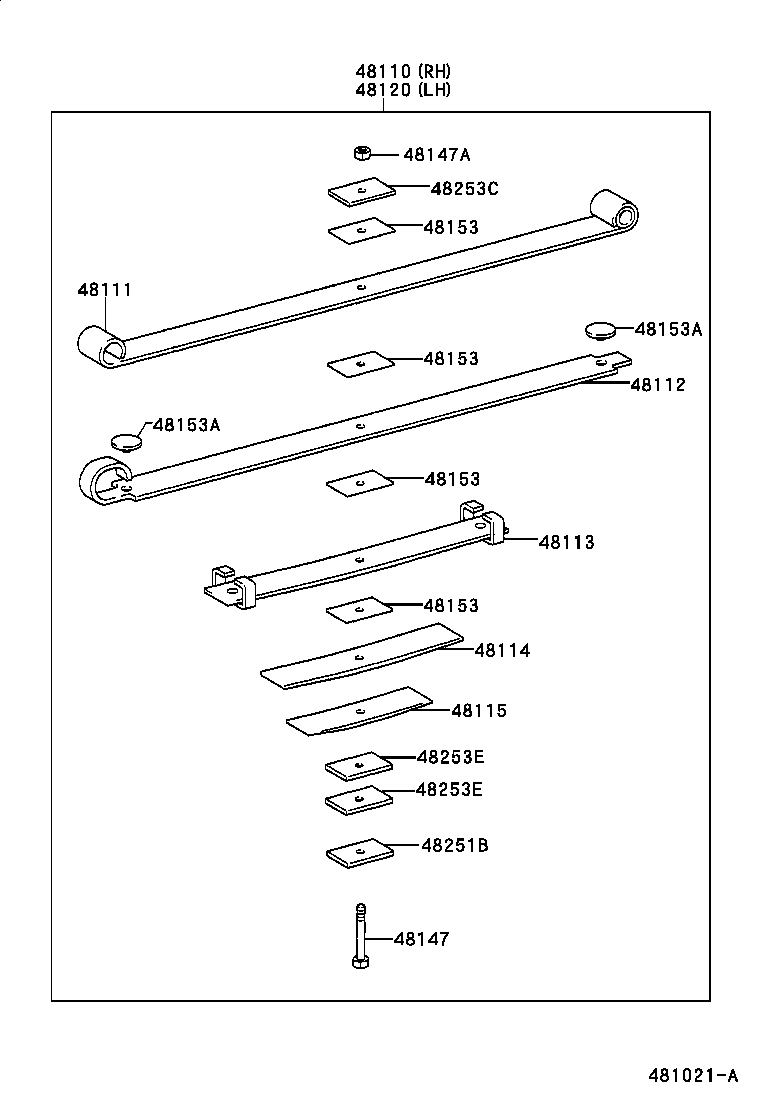

ILLUST NO. 2 OF 2(0010- )XZU410,420,430
6-LEAF,W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37650 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37590 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37730 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48110-37780 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48101-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48101-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48101-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48112-37740 |
XZU410,420,430 W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48112-37730 |
XZU410,420,430 W(STABILIZER),DRIVER SIDE |
1 | ||
| 48112-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48104-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48104-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48104-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48104-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48114-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48114-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48114-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37600 |
XZU410,420,430 PASSENGER SIDE |
1 | ||
| 48115-37730 |
XZU410,420,430 HEAVY DUTY SPRING,DRIVER SIDE |
1 | ||
| 48115-37590 |
XZU410,420,430 DRIVER SIDE |
1 | ||
| 48115-37740 |
XZU410,420,430 HEAVY DUTY SPRING,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37660 |
XZU410,420,430 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-37790 |
XZU410,420,430 5-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48110-37600 |
XZU410,420,430 5-LEAF |
1 | ||
| 48110-37740 |
XZU410,420,430 5-LEAF,W(STABILIZER) & HEAVY DUTY SPRING |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU410,420,430 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU410,420,430 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37730 |
XZU410,420,430 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37570 |
XZU410,420,430 |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37780 |
XZU410,420,430 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37730 |
XZU410,420,430 |
6 | ||
| 48116-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
XZU410,420,430 HEAVY DUTY SPRING |
4 | ||
| 48117-37730 |
XZU410,420,430 |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZU402,41#,420,430 |
2 | ||

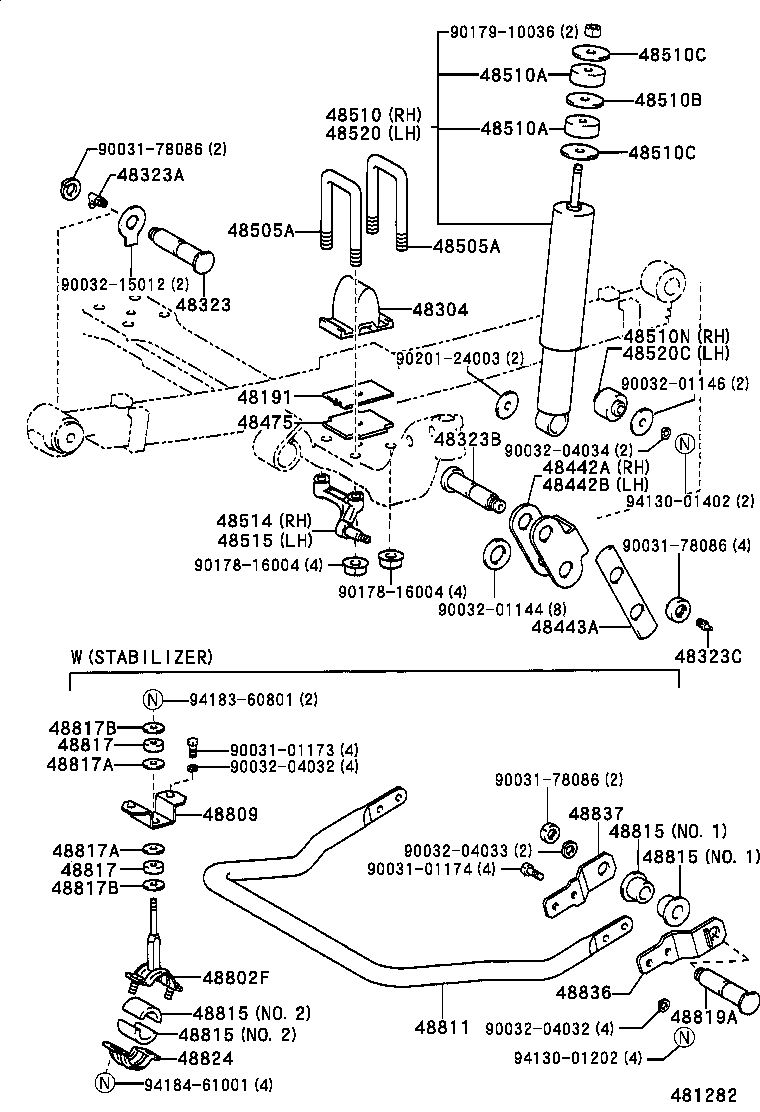

ILLUST NO. 1 OF 2(0010- )XZU410,411,420,430
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37070 |
XZU410,411,420,430 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37080 |
XZU410,411,420,430 |
2 | ||
| 48323 - PIN, FRONT SPRING BRACKET, FRONT | ||||
| 48323-37020 |
XZU410,411,420,430 |
2 | ||
| 48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN) | ||||
| 90034-08004 |
XZU410,411,420,430 |
2 | ||
| 48323B - PIN, FRONT SPRING BRACKET, REAR | ||||
| 48323-37030 |
XZU410,411,420,430 |
4 | ||
| 48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN) | ||||
| 90034-08006 |
XZU410,411,420,430 |
4 | ||
| 48442A - SHACKLE, FRONT SPRING, RH | ||||
| 48442-37040 |
XZU410,411,420,430 |
1 | ||
| 48442B - SHACKLE, FRONT SPRING, LH | ||||
| 48442-37050 |
XZU410,411,420,430 |
1 | ||
| 48443A - PLATE, FORNT SPRING SHACKLE, OUTER | ||||
| 48443-37010 |
XZU410,411,420,430 |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
XZU410,411,420,430 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU402,410,412,420,430 L=150 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU402,410,412,420,430 L=150 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80071 |
XZU402,41#,420,430 MARK 48511-37121 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU402,41#,420,430 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU402,41#,420,430 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XZU402,41#,420,430 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU402,41#,420,430 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU402,41#,420,430 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU402,41#,420,430 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XZU402,41#,420,430 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XZU402,41#,420,430 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80071 |
XZU402,41#,420,430 MARK 48511-37121 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU402,41#,420,430 |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37040 |
XZU402,41#,420,430 |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37020 |
XZU402,41#,420,430 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
XZU402,41#,420,430 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37040 |
XZU402,41#,420,430 NO.2 |
2 | ||
| 48815-37030 |
XZU402,41#,420,430 NO.1 |
4 | ||
| 48815-37020 |
XZU402,41#,420,430 NO.2 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37040 |
XZU402,41#,420,430 NO.2 |
2 | ||
| 48815-37030 |
XZU402,41#,420,430 NO.1 |
4 | ||
| 48815-37020 |
XZU402,41#,420,430 NO.2 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37040 |
XZU402,41#,420,430 NO.2 |
2 | ||
| 48815-37030 |
XZU402,41#,420,430 NO.1 |
4 | ||
| 48815-37020 |
XZU402,41#,420,430 NO.2 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37040 |
XZU402,41#,420,430 NO.2 |
2 | ||
| 48815-37030 |
XZU402,41#,420,430 NO.1 |
4 | ||
| 48815-37020 |
XZU402,41#,420,430 NO.2 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU402,41#,420,430 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU402,41#,420,430 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU402,41#,420,430 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU402,41#,420,430 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU402,41#,420,430 |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU402,41#,420,430 |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
XZU402,41#,420,430 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37060 |
XZU402,41#,420,430 |
2 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
XZU402,41#,420,430 |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
XZU402,41#,420,430 |
2 | ||
| Common parts | ||||
| 90031-01173 | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
(0010- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0110-0801)XZU414,424..RHD..75T..GEN ; (0110-0801)BU410,420,WU410,420,XZU412..65T ;
5-LEAF 48110-3V620,3V630
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(0110-0801)WU410..65T ; (0110-0801)XZU412,422..5F ; (0110-0801)XZU414..6F..ARL ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90101-12074 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
