XZU425L-TKFRDW3 (2007)

Toyota Dyna

Production Aug 2007 - May 2009
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )

Click highlighted areas on diagram

FUEL TANK

diagram 6765 6765 77017A 77017B 77017B 77018E 77018E 77022A 77022A 77022C 77022D 77023 77023 77026A 77026A 77026B 77100U 77100U 77154 77169A 77169A 77169B 77169B 77169B 77380 77380 77380 77601A 77601A 77633 77633 8401 8401 9015950219 9015950219 91672C1035 91672C1035 91672C1035 93319A4010 93319A4010 93319A4010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9415181000 9415181000 9613251100 9613251100
Part # Description Qty Price
Common parts
90159-50219
91672-C1035
93319-A4010
94130-00802
94151-81000
96132-51100
Linked diagrams
6765
8401

(7708- )BU20,25,3#

Click highlighted areas on diagram

diagram 77241 77241 77241A 77241A 77241B 77241B 77283 9015960038 9046108422 9046108422 9046110874 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9613230800
Part # Description Qty Price
Common parts
90159-60038
90461-08422
90461-10874
91611-40820
94110-40800
96132-30800

ILLUST NO. 1 OF 2(0110- )EUR..DCR,TD

Click highlighted areas on diagram

TANK

diagram 77012 77014A 77017B 77026B 77026B 77100A 77100B 77154 77154 77169A 77178 77178 77242A 77243A 77266A 77273D 77295C 77380 77380 77601A 77601A 77611A 77611A 77616C 77616C 77633 77633 77701T 8271116830 9017910015 9017910015 91645C1032 91645C1032 93319A4010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9613251100 9613251100 9613251100
Part # Description Qty Price
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-37010

XZU415,425,435

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
95333-06060

XZU415,425,435

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU415,425,435

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZU415,425,435

 2
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZU415,425,435

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

XZU415,425,435

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU415,425,435

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XZU415,425,435

 2
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZU415,425,435

 2
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZU415,425,435

 2
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055

XZU415,425

*H,L=550,ID=12

 1
95333-06030

XZU415,425,435

*H,L=220

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95333-06030

XZU415,425,435

*H,L=280

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-37010

XZU415,425,435

 1
77273D - VALVE, FUEL TANK BREATHER
77273-37010

XZU415,425,435

 1
77295C - GROMMET, FUEL TUBE
77295-27010

XZU415,425,435

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZU415,425,435

 2
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZU415,425,435

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU412,422..6F;BU410,420,WU410,420,XZU415,420,425,430,435..EUR,SA,TAIW

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU412,422..6F;BU410,420,WU410,420,XZU415,420,425,430,435..EUR,SA,TAIW

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU415,425,435

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU415,425,435

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU415,425,435

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU415,425,435

 2
77633 - STAY, FUEL TANK
77633-37100

XZU415,425,435

 2
77633 - STAY, FUEL TANK
77633-37100

XZU415,425,435

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

XZU415,425,435

 1
Common parts
82711-16830
90179-10015
91645-C1032
93319-A4010
94130-00802
96132-51100

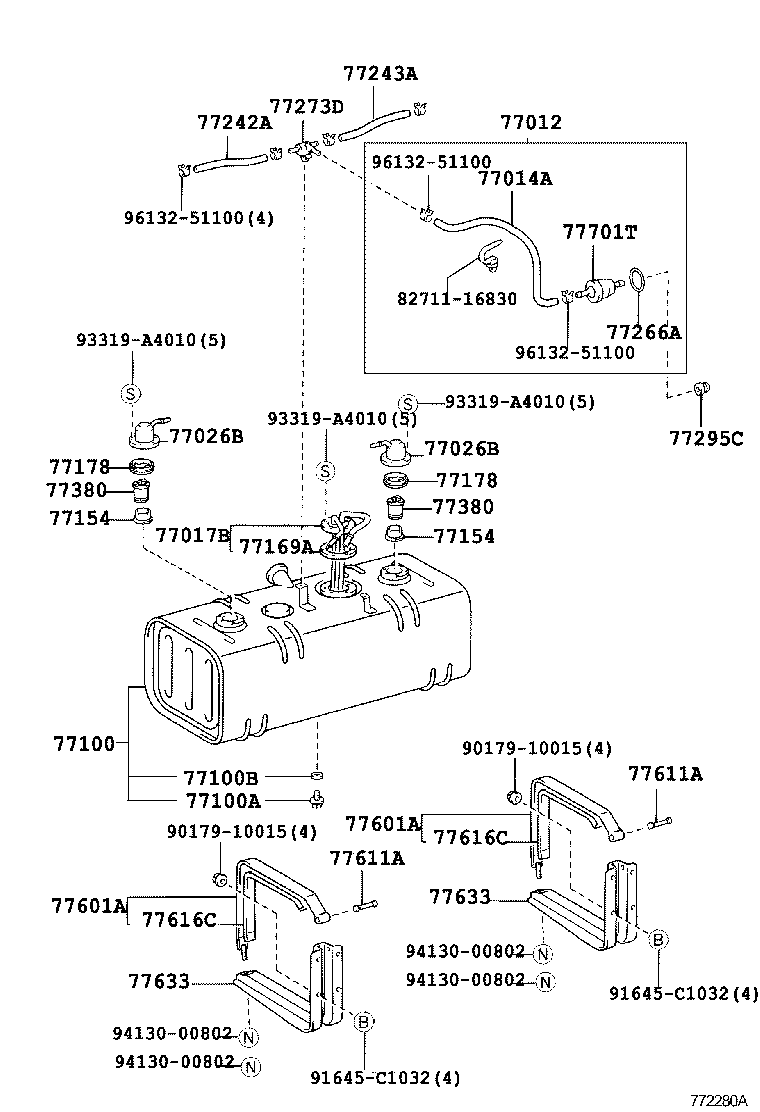

ILLUST NO. 1 OF 2(0708- )XZU415,419,425,429,435,439

Click highlighted areas on diagram

TANK

diagram 77012 77014A 77017B 77026B 77026B 77100 77100A 77100B 77154 77154 77169A 77178 77178 77242A 77243A 77266A 77273D 77295C 77380 77380 77601A 77601A 77611A 77611A 77616C 77616C 77633 77633 77701T 8271116830 9017910015 9017910015 91645C1032 91645C1032 93319A4010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9613251100 9613251100 9613251100
Part # Description Qty Price
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-37010

XZU415,425,435

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
95333-06060

XZU415,425,435

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU415,425,435

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZU415,425,435

 2
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZU415,425,435

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

XZU415,425,435

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU415,425,435

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XZU415,425,435

 2
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZU415,425,435

 2
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZU415,425,435

 2
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055

XZU415,425

*H,L=550,ID=12

 1
95333-06030

XZU415,425,435

*H,L=220

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95333-06030

XZU415,425,435

*H,L=280

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-37010

XZU415,425,435

 1
77273D - VALVE, FUEL TANK BREATHER
77273-37010

XZU415,425,435

 1
77295C - GROMMET, FUEL TUBE
77295-27010

XZU415,425,435

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZU415,425,435

 2
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZU415,425,435

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU412,422..6F;BU410,420,WU410,420,XZU415,420,425,430,435..EUR,SA,TAIW

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

XZU412,422..6F;BU410,420,WU410,420,XZU415,420,425,430,435..EUR,SA,TAIW

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU415,425,435

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU415,425,435

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU415,425,435

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU415,425,435

 2
77633 - STAY, FUEL TANK
77633-37100

XZU415,425,435

 2
77633 - STAY, FUEL TANK
77633-37100

XZU415,425,435

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

XZU415,425,435

 1
Common parts
82711-16830
90179-10015
91645-C1032
93319-A4010
94130-00802
96132-51100

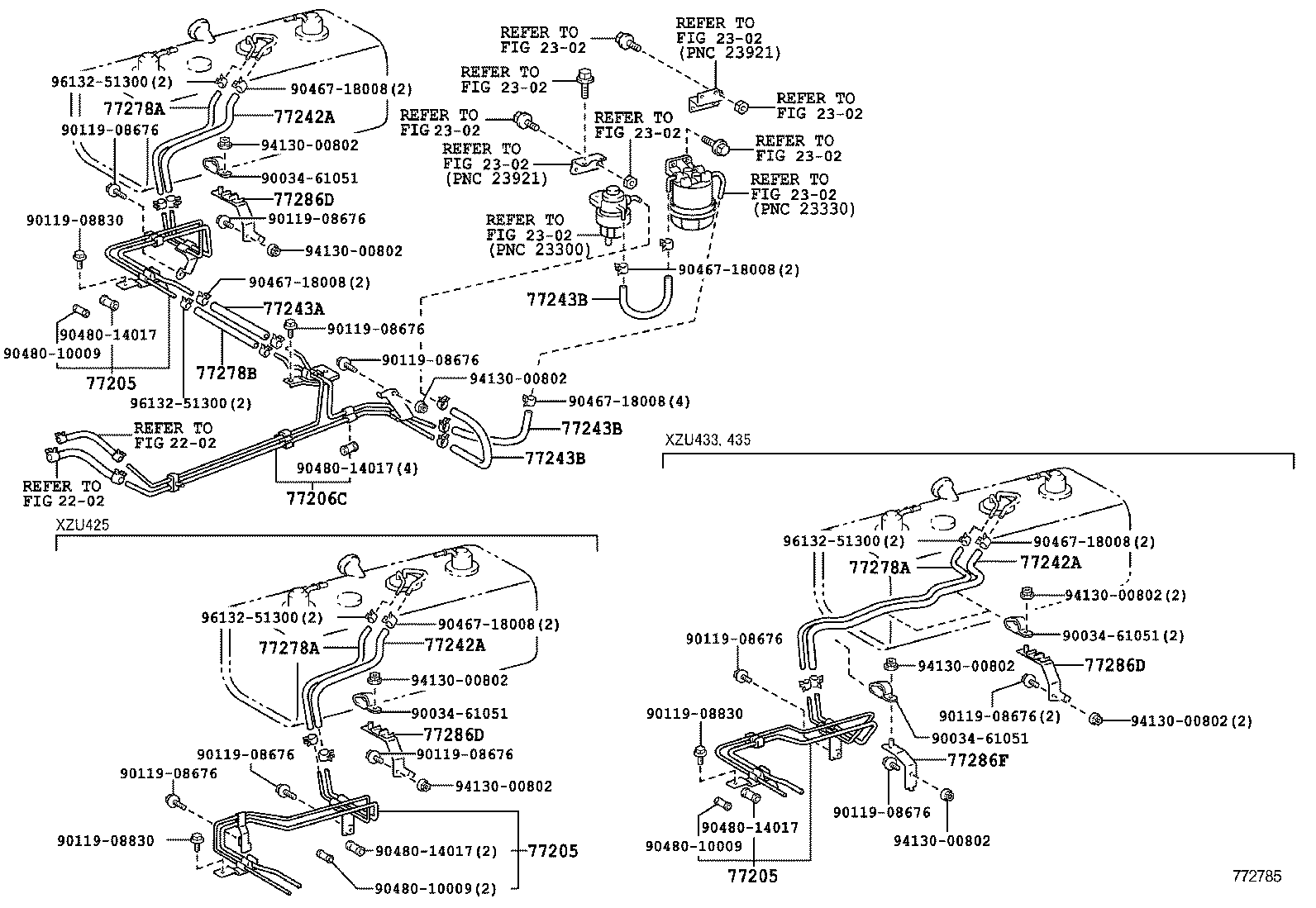

ILLUST NO. 2 OF 2(0708- )XZU415,425,433,435

Click highlighted areas on diagram

TUBE

diagram 2202 2202 2302 2302 2302 2302 2302 2302 2302 2302 2302 2302 77205 77205 77205 77206C 77242A 77242A 77242A 77243A 77243B 77243B 77243B 77278A 77278A 77278A 77278B 77286D 77286D 77286D 77286F 9003461051 9003461051 9003461051 9003461051 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9011908830 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9048010009 9048010009 9048010009 9048014017 9048014017 9048014017 9048014017 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37570

WU420,XZU42#

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37570

WU420,XZU42#

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37570

WU420,XZU42#

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055

XZU415,425

*H,L=550,ID=12

 1
95333-06030

XZU415,425,435

*H,L=220

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055

XZU415,425

*H,L=550,ID=12

 1
95333-06030

XZU415,425,435

*H,L=220

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12055

XZU415,425

*H,L=550,ID=12

 1
95333-06030

XZU415,425,435

*H,L=220

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95333-06030

XZU415,425,435

*H,L=280

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060

XZU415,425

*H,L=550,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060

XZU415,425

*H,L=550,ID=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08060

XZU415,425

*H,L=550,ID=7.6

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-37290

XZU415,425

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-37290

XZU415,425

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-37290

XZU415,425

 1
Common parts
90034-61051
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302
