XZU425L-TKFRDW3 (2007)

Toyota Dyna

Production Aug 2007 - May 2009
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0107-1610)LHD

Click highlighted areas on diagram

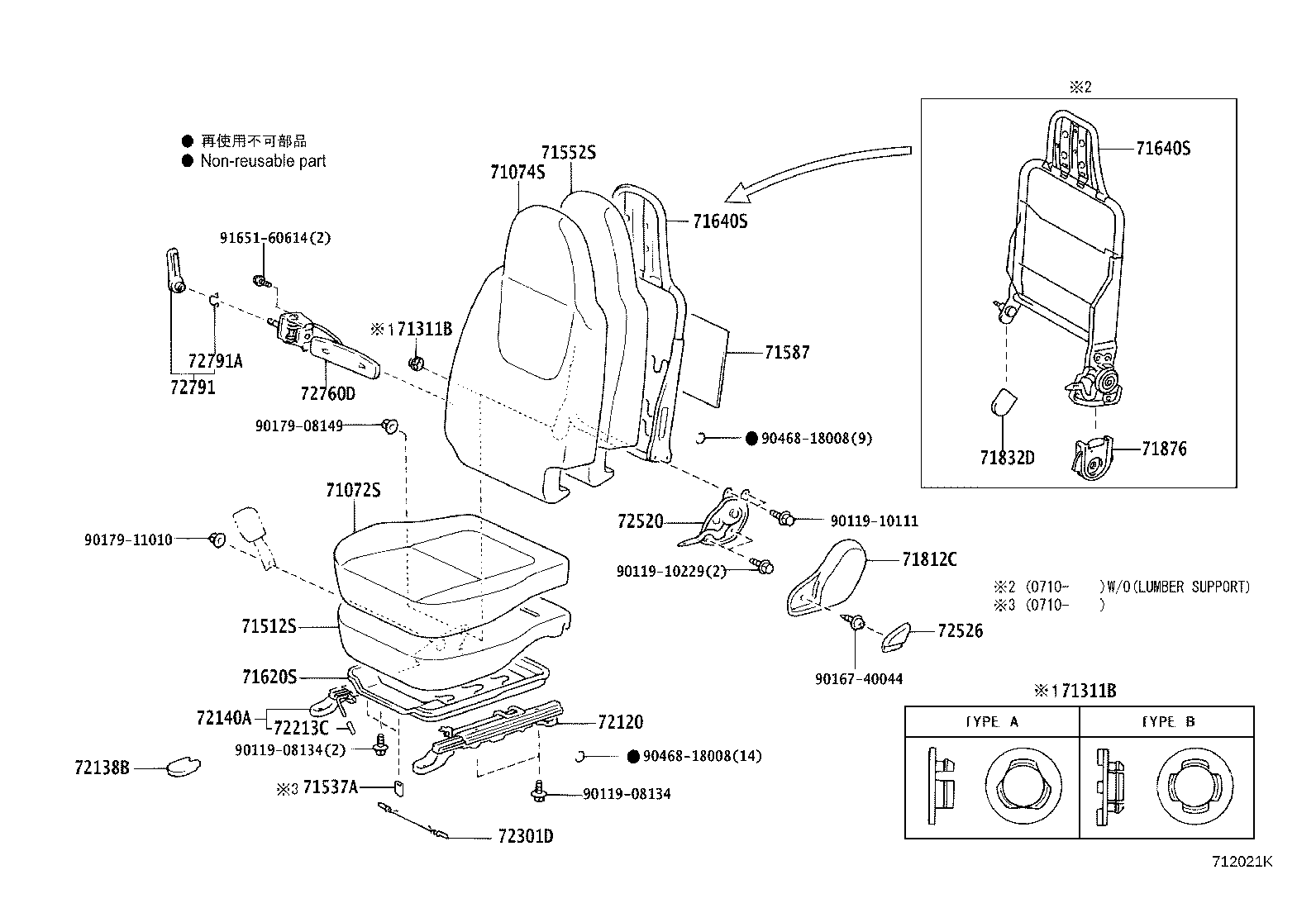

DRIVER SEAT

diagram 71072S 71074S 71311B 71311B 71512S 71537A 71552S 71587 71620S 71640S 71640S 71812C 71832D 71876 72120 72138B 72140A 72213C 72301D 72520 72526 72760D 72791 72791A 9011908134 9011908134 9011910111 9011910229 9016740044 9017908149 9017911010 9046818008 9046818008 9165160614
Part # Description Qty Price
Common parts
90119-08134
90119-10111
90119-10229
90167-40044
90179-08149
90179-11010
90468-18008
91651-60614

ILLUST NO. 2 OF 3(0107-1610)LHD

Click highlighted areas on diagram

PASSENGER SEAT, BENCH TYPE

diagram 71071S 71073S 71491C 71511S 71551S 71630S 71739 71848B 71910A 71910A 72641 78950 9011906077 9011908079 9011908C25 9046818008 9046818008 9356015030 9616000800
Part # Description Qty Price
Common parts
90119-06077
90119-08079
90119-08C25
90468-18008
93560-15030
96160-00800

(7708- )

Click highlighted areas on diagram

diagram 70011 70011 70011 70011 70012 70012 70012 70012 70012B 70012B 70012B 70013 70013 70013 70013 70014 70014 70014 70014 70021 70022 70023 70024 71203 71204 7123495405 7123495406 7123495407 71242 71242 71242 71243 71243 71243 71307 71307 71308 71308 71812 71812 71812 71812 71812 71812 71812 71812 71901 72110S 72120S 72510 72520 9011408060 9011906061 9011906061 9011908060 9015980012 9015980012 9015980012 9017908039 9017908039 9017908039 9017908039 9020212004 9038612008 9046708067 9046708067 9046806045 9046806045 9054006001 9054006004 9161140612 9161140612 9161160816 9161160825 9161160825 9161660616 9161660816 9165160816 9324116012 9324116012 9331915012 9356015012 9356015016
Part # Description Qty Price
Common parts
71234-95405
71234-95406
71234-95407
90114-08060
90119-06061
90119-08060
90159-80012
90179-08039
90202-12004
90386-12008
90467-08067
90468-06045
90540-06001
90540-06004
91611-40612
91611-60816
91611-60825
91616-60616
91616-60816
91651-60816
93241-16012
93319-15012
93560-15012
93560-15016

(0110- )EUR

Click highlighted areas on diagram

DRIVER SEAT

diagram 71012S 71072S 71074S 71311B 71512S 7152 7152 71552S 71587 71640S 71812C 72120 72138B 72140A 72301A 72520 72526B 72760D 72791 72791A 9011908134 9011910111 9011910229 9011910825 9011910825 9016740044 9017908149 9046816019 9046816019 9046818071 9046818071 9165160614
Part # Description Qty Price
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3V030B0

XZU415,425,435

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053

XZU415,425,435

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37140

XZU415,425,435

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020

XZU415,425,435

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-25010

XZU415,425,435

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37010B0

XZU415,425,435

MD.CHARCOAL,TRIM1#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37030

XZU415,425,435

 1
72138B - COVER, SEAT TRACK, LH
72138-37010B0

XZU415,425,435

DK.CHARCOAL,TRIM1#

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-37010

XZU415,425,435

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030

XZU415,425,435

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37030

XZU415,425,435

 1
72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72526-37010B0

XZU415,425,435

MD.CHARCOAL,TRIM1#

 1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-25010

XZU415,425,435

 1
72791 - LEVER, LUMBAR SUPPORT
72791-12010B9

XZU415,425,435

MD.CHARCOAL,TRIM1#

 1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01006

XZU415,425,435

 1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90468-16019
90468-18071
91651-60614
Linked diagrams
7152

(0110- )LHD

Click highlighted areas on diagram

PASSENGER SEAT

diagram 5855 71035S 71071S 71073S 71302F 71305S 71332B 71332B 71365S 71511S 71551S 71630S 72137B 72510 72520D 9011908C25 9011908C25 9011908C25 9011908C25 9011908C25 9011908C25 9011910229 9011910229 9046816019 9046816019 9046816019 9046818071 9046818071 9046818071
Part # Description Qty Price
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37330B0

XZU415,425,435

W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71095-37340B0

XZU415,425,435

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37720B0

XZU415,425,435

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71302F - HINGE SUB-ASSY, FRONT LH SEAT BACK, LH
71302-37010

XZU415,425,435

 1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37010

XZU415,425,435

W(SEAT BACK CONSOLE)

 1
71305-37110

XZU415,425,435

 1
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010

XZU415,425,435

 2
71332B - SPACER, REAR SEAT BACK HINGE
71332-37010

XZU415,425,435

 2
71365S - PAD, CENTER SEAT BACK
71365-37080

XZU415,425,435

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-37020

XZU415,425,435

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37190

XZU415,425,435

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71013-37120

XZU415,425,435

 1
72137B - COVER, SEAT TRACK, RH
72137-35050B1

XZU415,425,435

DK.CHARCOAL,TRIM1#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37050B0

XZU415,425,435

MD.CHARCOAL,TRIM1#

 1
72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH
72520-37060B0

XZU415,425,435

MD.CHARCOAL,TRIM1#

 1
Common parts
90119-08C25
90119-10229
90468-16019
90468-18071
Linked diagrams
5855
