XZU424R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 3(0110-0610)RHD..GEN ; (0212-0610)ARL

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 88453A 88454B 88460 88463 88463A 88471 8847237190 88550 88590 8871824060 88723B 9004179141 9009120609 9009120609 9009904119 9009905192 9009905192 9015960187 9017914038 9111261435 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9415080800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

WU410,XZU404,41#,42#,434..RHD

 1
88454B - SHROUD, FAN
88454-37040

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88460 - CONDENSER ASSY, COOLER
88460-37380

XZU404,414,424..GEN

 1
88460-37381

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37261

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37281

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37070

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

TYPE A:REFER ILLUST.

 1
88723-20030

XZU404,414,424..GEN

TYPE B:REFER ILLUST.

 1
88733-22040

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

TYPE B:REFER ILLUST.

 1
Common parts
88472-37190
88718-24060
90041-79141
90091-20609
90099-04119
90099-05192
90159-60187
90179-14038
91112-61435
91513-60828
94150-80800

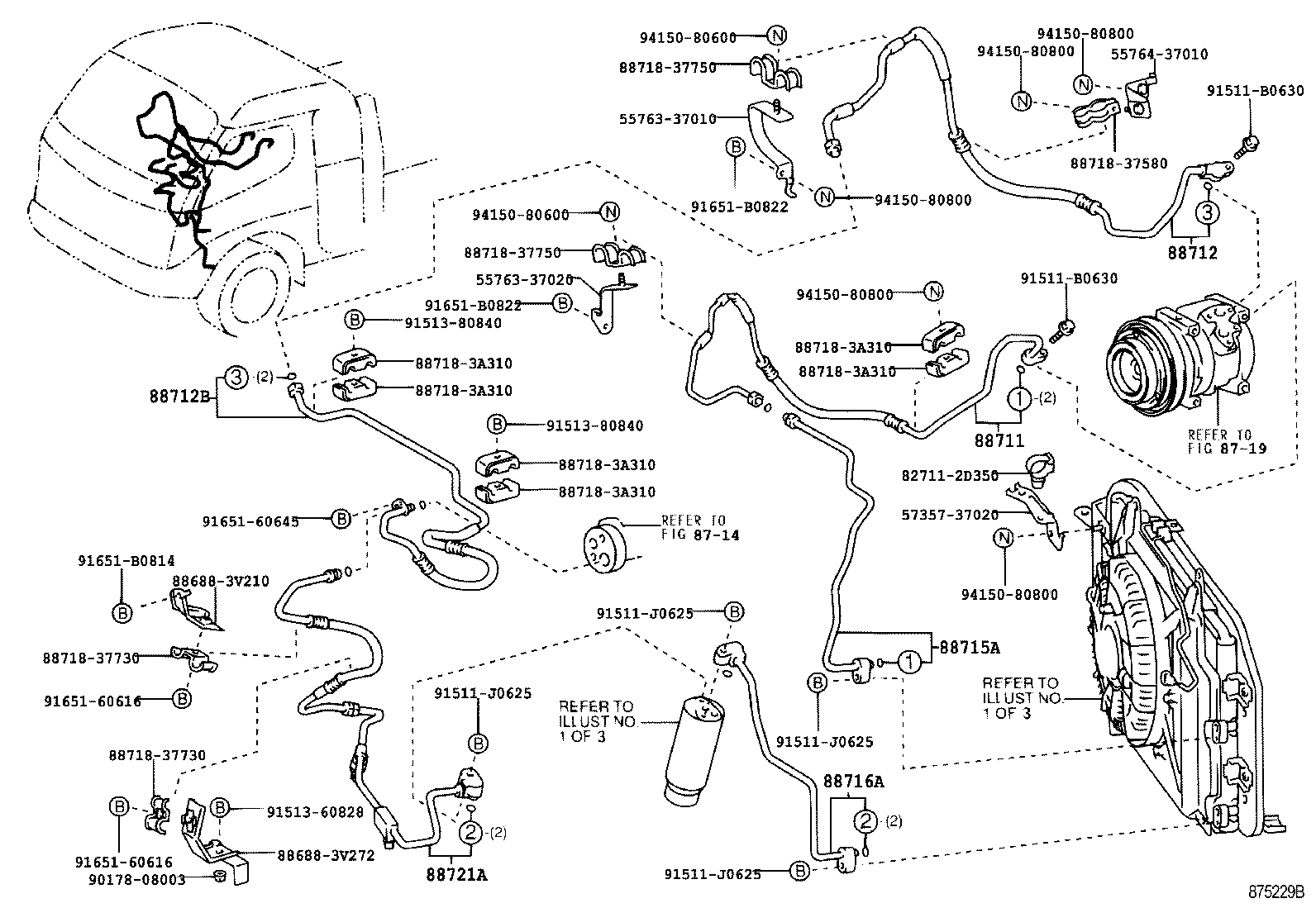

ILLUST NO. 2 OF 3(0110-0610)RHD..GEN..TD ; (0212-0610)ARL

Click highlighted areas on diagram

PIPING

diagram 5576337010 5576337020 5576437010 5735737020 827112D350 8714 8719 886883V210 886883V272 88711 88712 88712B 88715A 88716A 8871837580 8871837730 8871837730 8871837750 8871837750 887183A310 887183A310 887183A310 887183A310 887183A310 887183A310 88721A 9017808003 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151380840 9151380840 9165160616 9165160616 9165160645 91651B0814 91651B0822 91651B0822 9415080600 9415080600 9415080800 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37741

XZU404,412,414,424,434..RHD..TD

 1
88711-37740

XZU404,414,424..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V330

XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V340

XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)

 1
88712-3V341

XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37350

XZU412..RHD..TD;WU410,XZU404,414,424,434..RHD..(ARL,GEN)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88721A - HOSE, LIQUID, A
88721-37552

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
Common parts
55763-37010
55763-37020
55764-37010
57357-37020
82711-2D350
88688-3V210
88688-3V272
88718-37580
88718-37730
88718-37750
88718-3A310
90178-08003
91511-B0630
91511-J0625
91513-60828
91513-80840
91651-60616
91651-60645
91651-B0814
91651-B0822
94150-80600
94150-80800
Linked diagrams
8714
8719
