XZU424R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0610)XZU412..RHD..DSL ; (0110-0610)XZU404,414,422,424,434..RHD

Click highlighted areas on diagram

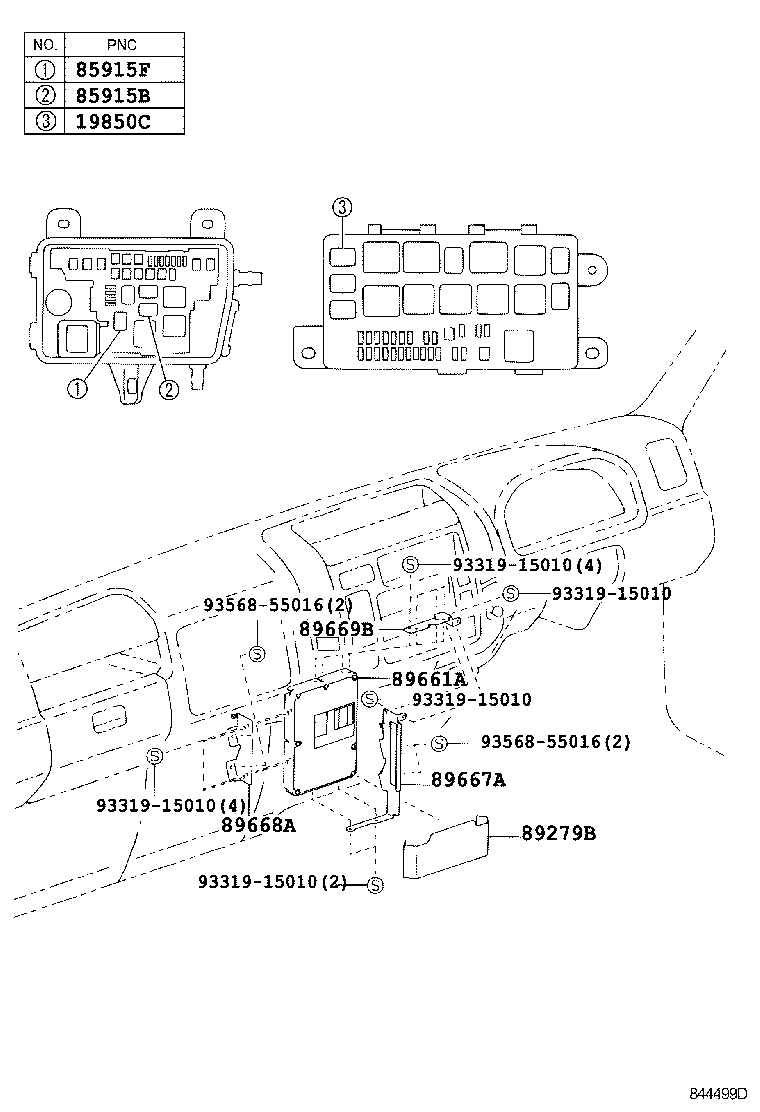

diagram 19850C 85915B 85915F 89279B 89661A 89667A 89668A 89669B 9331915010 9331915010 9331915010 9331915010 9331915010 9356855016 9356855016
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02017

XZU404,414,424,434..ARL,GEN

 1
85915F - RELAY, SPILL VALVE
90987-02017

XZU404,414,424,434..ARL,GEN

 1
89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR
89279-37060

XZU404,414,424,434..RHD

 1
89661A - COMPUTER, ENGINE CONTROL
89561-37130

XZU404,414,424,434..RHD

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-37060

XZU404,414,424,434..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37060

XZU404,414,424,434..RHD

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-37060

XZU404,414,424,434..RHD

 1
Common parts
93319-15010
93568-55016
