XZU424R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0610)XZU404,412,414,420,422,424,430,434..RHD ; (0610- )XZU420,430

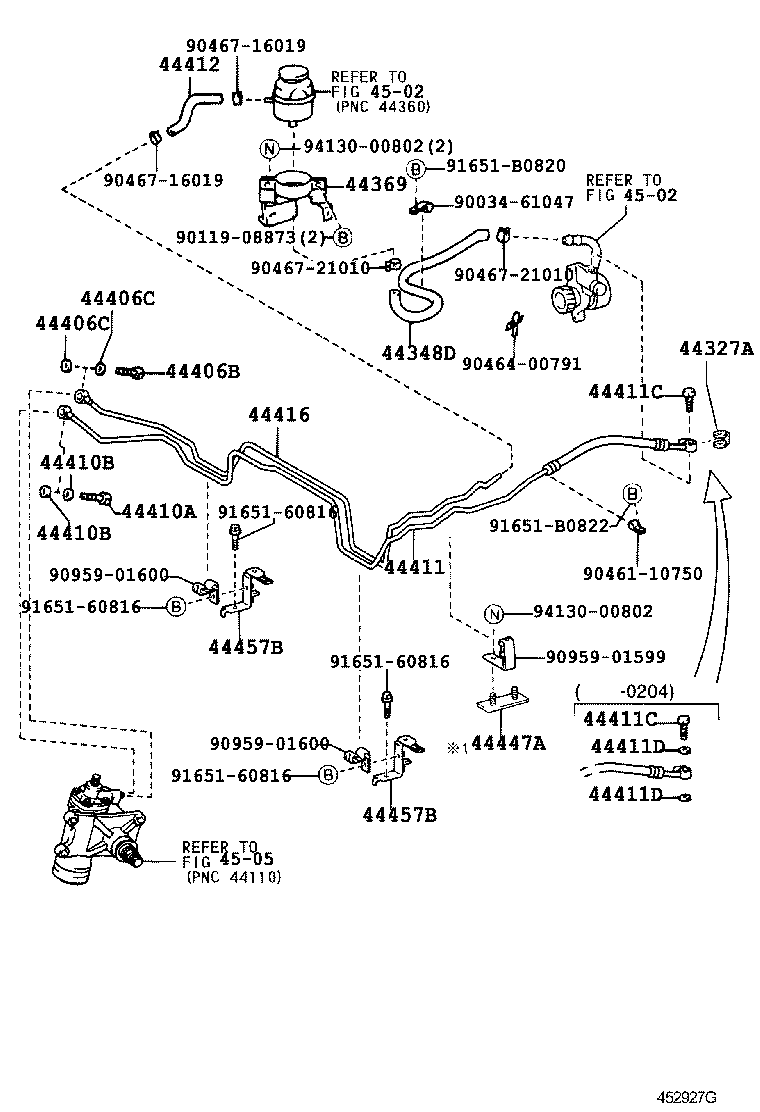

Click highlighted areas on diagram

diagram 44327A 44348D 44369 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44411C 44411D 44411D 44412 44416 44447A 44457B 44457B 4502 4502 4505 9003461047 9011908873 9046110750 9046400791 9046716019 9046716019 9046721010 9046721010 9095901599 9095901600 9095901600 9165160816 9165160816 9165160816 9165160816 91651B0820 91651B0822 9413000802 9413000802
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37250

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37150

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 2
44411 - HOSE, PRESSURE FEED
44411-37220

XZU404,412,414,422,424,434..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

XZU404,414,424,434

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

XZU404,414,424,434

 2
44412 - HOSE, RETURN
44412-37080

XZU412,422..5F..TD;XZU412,422..RHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37380

WU410,420,XZU404,41#,42#,43#..RHD

 1
44416-37381

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37130

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 2
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37130

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 2
Common parts
90034-61047
90119-08873
90461-10750
90464-00791
90467-16019
90467-21010
90959-01599
90959-01600
91651-60816
91651-B0820
91651-B0822
94130-00802
Linked diagrams
4502
4505
