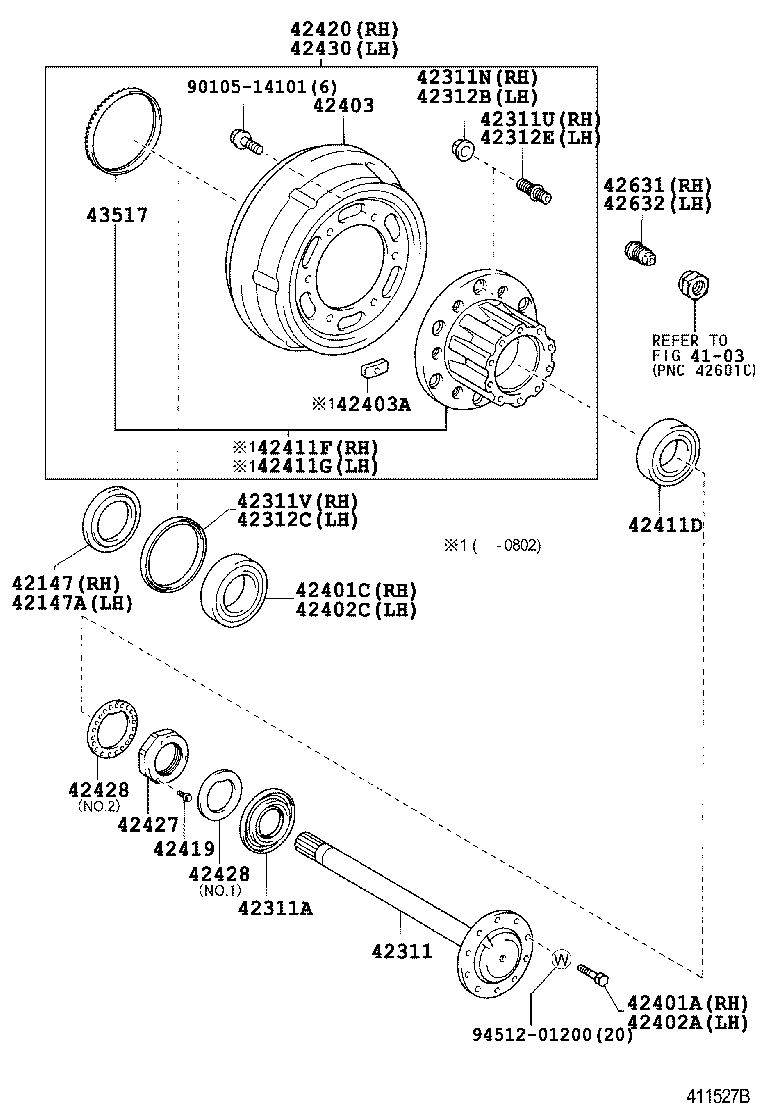

XZU424L-TKFRWW3 (2001)
Toyota Dyna
(0110- )XZU424..EUR ; (0110- )XZU414..65T,75T ; (0110- )XZU424..RHD..75T,8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
XZU414,424,434..EUR |
1 | ||
| 42147-37010 |
XZU414,424,434..EUR |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
XZU414,424,434..EUR |
1 | ||
| 42147-37010 |
XZU414,424,434..EUR |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37140 |
XZU414,424,434..EUR |
2 | ||
| 42311-37140 |
XZU414,424,434..EUR |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
XZU414,424,434..EUR |
2 | ||
| 90033-11032 |
XZU414,424,434..EUR |
2 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20007 |
XZU414,424,434..EUR |
6 | ||
| 90179-20007 |
XZU414,424,434..EUR |
6 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
XZU414,424,434..EUR |
6 | ||
| 90942-02045 |
XZU414,424,434..EUR |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20007 |
XZU414,424,434..EUR |
6 | ||
| 90179-20007 |
XZU414,424,434..EUR |
6 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
XZU414,424,434..EUR |
6 | ||
| 90942-02046 |
XZU414,424,434..EUR |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37101 |
XZU414,424,434..EUR |
2 | ||
| 42431-37101 |
XZU414,424,434..EUR |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01120 |
XZU414,424,434..EUR 40G |
1 | ||
| 90937-01120 |
XZU414,424,434..EUR 40G |
1 | ||
| 90937-01122 |
XZU414,424,434..EUR 60G |
1 | ||
| 90937-01122 |
XZU414,424,434..EUR 60G |
1 | ||
| 90937-01117 |
XZU414,424,434..EUR 10G |
1 | ||
| 90937-01117 |
XZU414,424,434..EUR 10G |
1 | ||
| 90937-01119 |
XZU414,424,434..EUR 30G |
1 | ||
| 90937-01119 |
XZU414,424,434..EUR 30G |
1 | ||
| 90937-01118 |
XZU414,424,434..EUR 20G |
1 | ||
| 90937-01118 |
XZU414,424,434..EUR 20G |
1 | ||
| 90937-01121 |
XZU414,424,434..EUR 50G |
1 | ||
| 90937-01121 |
XZU414,424,434..EUR 50G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
XZU414,424,434..EUR |
2 | ||
| 90033-66031 |
XZU414,424,434..EUR |
2 | ||
| 42411F - HUB, REAR AXLE, RH | ||||
| 42407-37030 |
XZU414,424,434..EUR |
1 | ||
| 42407-37030 |
XZU414,424,434..EUR |
1 | ||
| 42411G - HUB, REAR AXLE, LH | ||||
| 42408-37030 |
XZU414,424,434..EUR |
1 | ||
| 42408-37030 |
XZU414,424,434..EUR |
1 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
XZU414,424,434..EUR |
6 | ||
| 90119-06199 |
XZU414,424,434..EUR |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39115 |
XZU414,424,434..EUR |
1 | ||
| 42420-39115 |
XZU414,424,434..EUR |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
XZU414,424,434..EUR |
2 | ||
| 42427-37030 |
XZU414,424,434..EUR |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37030 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 42428-37030 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 42428-37010 |
XZU414,424,434..EUR NO.1 |
2 | ||
| 42428-37010 |
XZU414,424,434..EUR NO.1 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37030 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 42428-37030 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 42428-37010 |
XZU414,424,434..EUR NO.1 |
2 | ||
| 42428-37010 |
XZU414,424,434..EUR NO.1 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39115 |
XZU414,424,434..EUR |
1 | ||
| 42430-39115 |
XZU414,424,434..EUR |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
XZU414,424,434..EUR |
6 | ||
| 42631-55031 |
XZU414,424,434..EUR |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
XZU414,424,434..EUR |
6 | ||
| 42632-55031 |
XZU414,424,434..EUR |
6 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37020 |
XZU414,424,434..EUR |
2 | ||
| 43517-37020 |
XZU414,424,434..EUR |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(0212- )XZU412,413..55T ; (0212- )XZU414..LHD..GEN ; (0212- )WU410,XZU404,
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37140 |
XZU414,424,434..EUR |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
XZU414,424,434..EUR |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02045 |
XZU414,424,434..EUR |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90033-11031 |
XZU414,424,434..EUR |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02046 |
XZU414,424,434..EUR |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
XZU414,424,434..EUR |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
XZU414,424,434..EUR |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37101 |
XZU414,424,434..EUR |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01120 |
XZU414,424,434..EUR 40G |
1 | ||
| 90937-01122 |
XZU414,424,434..EUR 60G |
1 | ||
| 90937-01117 |
XZU414,424,434..EUR 10G |
1 | ||
| 90937-01119 |
XZU414,424,434..EUR 30G |
1 | ||
| 90937-01118 |
XZU414,424,434..EUR 20G |
1 | ||
| 90937-01121 |
XZU414,424,434..EUR 50G |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
XZU414,424,434..EUR |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
XZU414,424,434..EUR |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39115 |
XZU414,424,434..EUR |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
XZU414,424,434..EUR |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37030 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 42428-37010 |
XZU414,424,434..EUR NO.1 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39115 |
XZU414,424,434..EUR |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
XZU414,424,434..EUR |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
XZU414,424,434..EUR |
6 | ||
| Common parts | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
