XZU422L-TKMTSV3 (2002)
Toyota Dyna

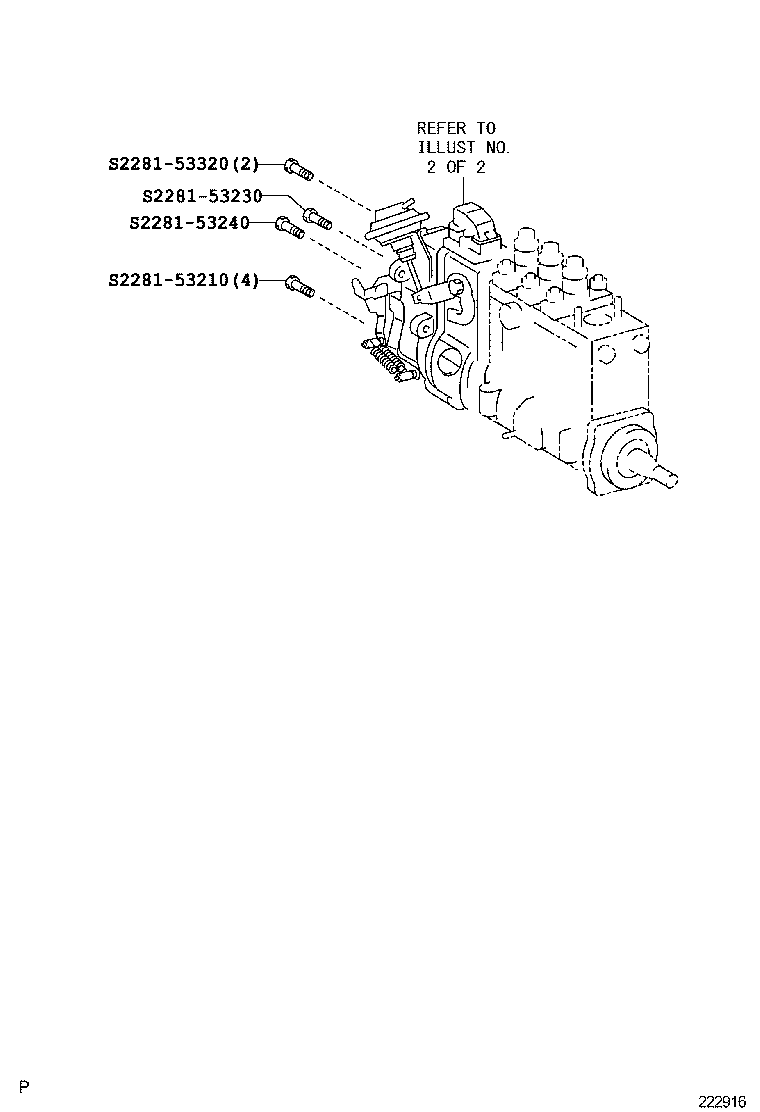

ILLUST NO. 1 OF 2(0212- )S05C..XZU412,422..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| S2281-53210 | ||||
| S2281-53230 | ||||
| S2281-53240 | ||||
| S2281-53320 | ||||

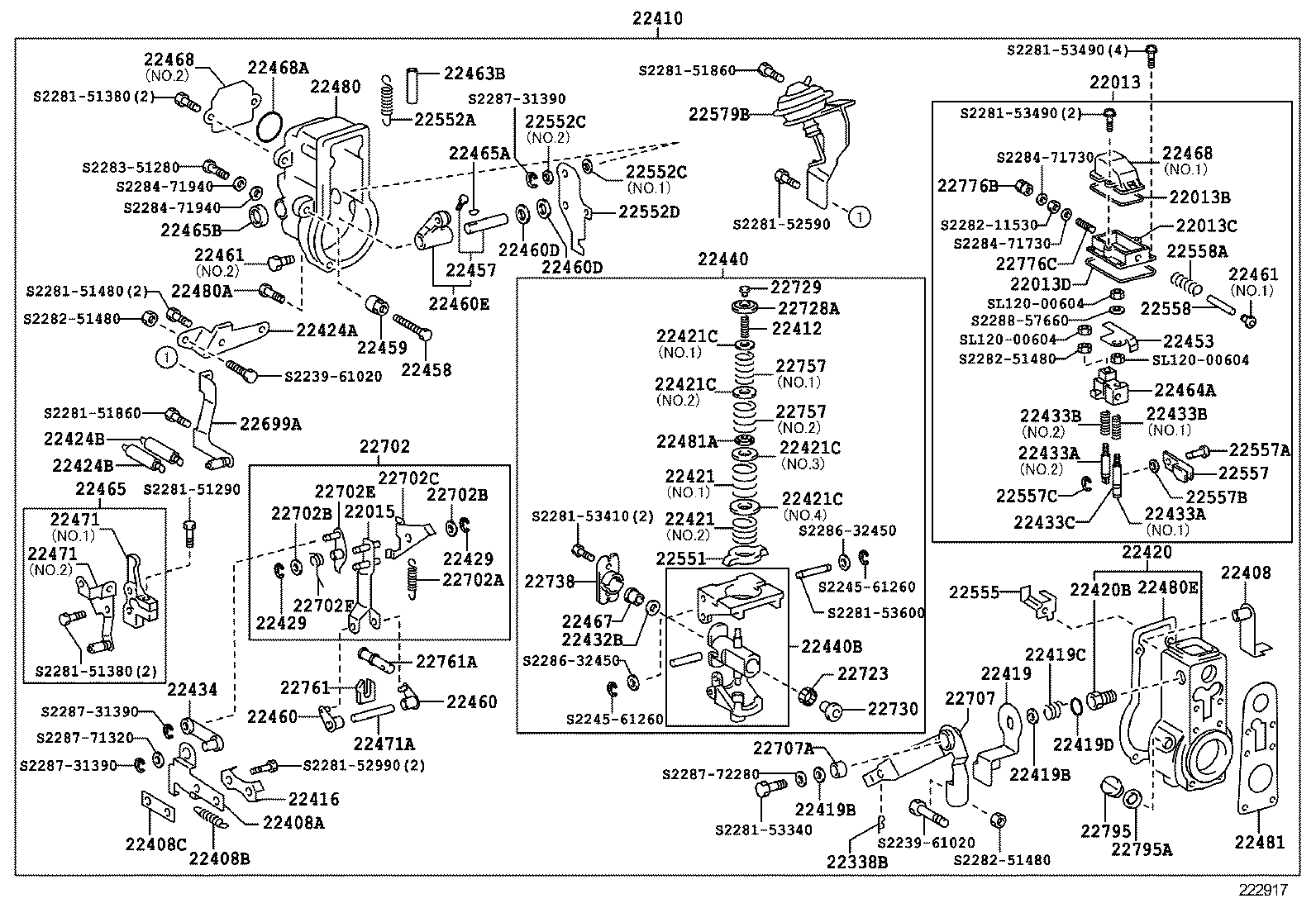

ILLUST NO. 2 OF 2(0212- )S05C..XZU412,422..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER | ||||
| S2237-02820 |
S05C..XZU412,422..DSL |
1 | ||
| 22013B - RING, O(FOR FULLROAD STOPPER HOUSING) | ||||
| S2284-72590 |
S05C..XZU412,422..DSL |
1 | ||
| 22013C - HOUSING, FULLROAD STOPPER, NO.2 | ||||
| S2237-11130 |
S05C..XZU412,422..DSL |
1 | ||
| 22013D - RING, O(FOR FULLROAD STOPPER HOUSING, NO.2) | ||||
| S2284-72690 |
S05C..XZU412,422..DSL |
1 | ||
| 22015 - LEVER SUB-ASSY, FLOATING | ||||
| S2204-11450 |
S05C..XZU412,422..DSL |
1 | ||
| 22338B - PIN, LEVER CONECTING | ||||
| S2245-61200 |
S05C..XZU412,422..DSL |
1 | ||
| 22408 - ARM, STOPPER | ||||
| S2230-72660 |
S05C..XZU412,422..DSL |
1 | ||
| 22408A - ARM SUB-ASSY(FOR CONTROL LACK) | ||||
| S2230-72650 |
S05C..XZU412,422..DSL |
1 | ||
| 22408B - SPRING, RETURN(FOR ARM) | ||||
| S2234-11700 |
S05C..XZU412,422..DSL |
1 | ||
| 22408C - NUT, ARM | ||||
| S2234-33180 |
S05C..XZU412,422..DSL |
1 | ||
| 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL | ||||
| S2231-06880 |
S05C..XZU412,422..DSL |
1 | ||
| 22412 - SPRING, MECHANICAL GOVERNOR | ||||
| S2234-12160 |
S05C..XZU412,422..DSL |
2 | ||
| 22416 - WASHER, GOVERNOR LOCK | ||||
| S2287-71990 |
S05C..XZU412,422..DSL |
1 | ||
| 22419 - LEVER, STOP | ||||
| S2239-52150 |
S05C..XZU412,422..DSL |
1 | ||
| 22419B - WASHER, PLATE(FOR STOPPER LEVER) | ||||
| S2288-53430 |
S05C..XZU412,422..DSL T=0.10 |
2 | ||
| S2288-53450 |
S05C..XZU412,422..DSL T=0.50 |
2 | ||
| S2288-53440 |
S05C..XZU412,422..DSL T=0.20 |
2 | ||
| 22419B - WASHER, PLATE(FOR STOPPER LEVER) | ||||
| S2288-53430 |
S05C..XZU412,422..DSL T=0.10 |
2 | ||
| S2288-53450 |
S05C..XZU412,422..DSL T=0.50 |
2 | ||
| S2288-53440 |
S05C..XZU412,422..DSL T=0.20 |
2 | ||
| 22419C - SPRING, RETURN(FOR STOPPER LEVER) | ||||
| S2234-15120 |
S05C..XZU412,422..DSL |
1 | ||
| 22419D - RING, O(FOR STOPPER LEVER) | ||||
| S2281-71440 |
S05C..XZU412,422..DSL |
1 | ||
| 22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR | ||||
| S2230-11840 |
S05C..XZU412,422..DSL |
1 | ||
| 22420B - BUSH, MECHANICAL GOVERNOR HOUSING | ||||
| S2232-21180 |
S05C..XZU412,422..DSL |
1 | ||
| 22421 - SPRING, IDLING | ||||
| S2241-12880 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2241-21280 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22421 - SPRING, IDLING | ||||
| S2241-12880 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2241-21280 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2286-32000 |
S05C..XZU412,422..DSL T=1.00,NO.4 |
6 | ||
| S2286-32010 |
S05C..XZU412,422..DSL T=0.20,NO.3 |
6 | ||
| S2286-31970 |
S05C..XZU412,422..DSL T=0.20,NO.4 |
6 | ||
| S2286-32020 |
S05C..XZU412,422..DSL T=0.30,NO.3 |
6 | ||
| S2286-31980 |
S05C..XZU412,422..DSL T=0.30,NO.4 |
6 | ||
| S2286-32040 |
S05C..XZU412,422..DSL T=1.00,NO.3 |
6 | ||
| S2286-32070 |
S05C..XZU412,422..DSL T=0.60,NO.2 |
6 | ||
| S2286-32090 |
S05C..XZU412,422..DSL T=0.20,NO.1 |
6 | ||
| S2286-32060 |
S05C..XZU412,422..DSL T=0.30,NO.2 |
6 | ||
| S2286-32030 |
S05C..XZU412,422..DSL T=0.60,NO.3 |
6 | ||
| S2286-32080 |
S05C..XZU412,422..DSL T=1.00,NO.2 |
6 | ||
| S2286-32050 |
S05C..XZU412,422..DSL T=0.20,NO.2 |
6 | ||
| S2286-31990 |
S05C..XZU412,422..DSL T=0.60,NO.4 |
6 | ||
| S2286-32120 |
S05C..XZU412,422..DSL T=1.00,NO.1 |
6 | ||
| S2286-32110 |
S05C..XZU412,422..DSL T=0.60,NO.1 |
6 | ||
| S2286-32100 |
S05C..XZU412,422..DSL T=0.30,NO.1 |
6 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2286-32000 |
S05C..XZU412,422..DSL T=1.00,NO.4 |
6 | ||
| S2286-32010 |
S05C..XZU412,422..DSL T=0.20,NO.3 |
6 | ||
| S2286-31970 |
S05C..XZU412,422..DSL T=0.20,NO.4 |
6 | ||
| S2286-32020 |
S05C..XZU412,422..DSL T=0.30,NO.3 |
6 | ||
| S2286-31980 |
S05C..XZU412,422..DSL T=0.30,NO.4 |
6 | ||
| S2286-32040 |
S05C..XZU412,422..DSL T=1.00,NO.3 |
6 | ||
| S2286-32070 |
S05C..XZU412,422..DSL T=0.60,NO.2 |
6 | ||
| S2286-32090 |
S05C..XZU412,422..DSL T=0.20,NO.1 |
6 | ||
| S2286-32060 |
S05C..XZU412,422..DSL T=0.30,NO.2 |
6 | ||
| S2286-32030 |
S05C..XZU412,422..DSL T=0.60,NO.3 |
6 | ||
| S2286-32080 |
S05C..XZU412,422..DSL T=1.00,NO.2 |
6 | ||
| S2286-32050 |
S05C..XZU412,422..DSL T=0.20,NO.2 |
6 | ||
| S2286-31990 |
S05C..XZU412,422..DSL T=0.60,NO.4 |
6 | ||
| S2286-32120 |
S05C..XZU412,422..DSL T=1.00,NO.1 |
6 | ||
| S2286-32110 |
S05C..XZU412,422..DSL T=0.60,NO.1 |
6 | ||
| S2286-32100 |
S05C..XZU412,422..DSL T=0.30,NO.1 |
6 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2286-32000 |
S05C..XZU412,422..DSL T=1.00,NO.4 |
6 | ||
| S2286-32010 |
S05C..XZU412,422..DSL T=0.20,NO.3 |
6 | ||
| S2286-31970 |
S05C..XZU412,422..DSL T=0.20,NO.4 |
6 | ||
| S2286-32020 |
S05C..XZU412,422..DSL T=0.30,NO.3 |
6 | ||
| S2286-31980 |
S05C..XZU412,422..DSL T=0.30,NO.4 |
6 | ||
| S2286-32040 |
S05C..XZU412,422..DSL T=1.00,NO.3 |
6 | ||
| S2286-32070 |
S05C..XZU412,422..DSL T=0.60,NO.2 |
6 | ||
| S2286-32090 |
S05C..XZU412,422..DSL T=0.20,NO.1 |
6 | ||
| S2286-32060 |
S05C..XZU412,422..DSL T=0.30,NO.2 |
6 | ||
| S2286-32030 |
S05C..XZU412,422..DSL T=0.60,NO.3 |
6 | ||
| S2286-32080 |
S05C..XZU412,422..DSL T=1.00,NO.2 |
6 | ||
| S2286-32050 |
S05C..XZU412,422..DSL T=0.20,NO.2 |
6 | ||
| S2286-31990 |
S05C..XZU412,422..DSL T=0.60,NO.4 |
6 | ||
| S2286-32120 |
S05C..XZU412,422..DSL T=1.00,NO.1 |
6 | ||
| S2286-32110 |
S05C..XZU412,422..DSL T=0.60,NO.1 |
6 | ||
| S2286-32100 |
S05C..XZU412,422..DSL T=0.30,NO.1 |
6 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2286-32000 |
S05C..XZU412,422..DSL T=1.00,NO.4 |
6 | ||
| S2286-32010 |
S05C..XZU412,422..DSL T=0.20,NO.3 |
6 | ||
| S2286-31970 |
S05C..XZU412,422..DSL T=0.20,NO.4 |
6 | ||
| S2286-32020 |
S05C..XZU412,422..DSL T=0.30,NO.3 |
6 | ||
| S2286-31980 |
S05C..XZU412,422..DSL T=0.30,NO.4 |
6 | ||
| S2286-32040 |
S05C..XZU412,422..DSL T=1.00,NO.3 |
6 | ||
| S2286-32070 |
S05C..XZU412,422..DSL T=0.60,NO.2 |
6 | ||
| S2286-32090 |
S05C..XZU412,422..DSL T=0.20,NO.1 |
6 | ||
| S2286-32060 |
S05C..XZU412,422..DSL T=0.30,NO.2 |
6 | ||
| S2286-32030 |
S05C..XZU412,422..DSL T=0.60,NO.3 |
6 | ||
| S2286-32080 |
S05C..XZU412,422..DSL T=1.00,NO.2 |
6 | ||
| S2286-32050 |
S05C..XZU412,422..DSL T=0.20,NO.2 |
6 | ||
| S2286-31990 |
S05C..XZU412,422..DSL T=0.60,NO.4 |
6 | ||
| S2286-32120 |
S05C..XZU412,422..DSL T=1.00,NO.1 |
6 | ||
| S2286-32110 |
S05C..XZU412,422..DSL T=0.60,NO.1 |
6 | ||
| S2286-32100 |
S05C..XZU412,422..DSL T=0.30,NO.1 |
6 | ||
| 22424A - ARM, SPRING | ||||
| S2234-37340 |
S05C..XZU412,422..DSL |
1 | ||
| 22424B - SPRING, RETURN(FOR SPRING ARM) | ||||
| S2234-13470 |
S05C..XZU412,422..DSL |
2 | ||
| 22424B - SPRING, RETURN(FOR SPRING ARM) | ||||
| S2234-13470 |
S05C..XZU412,422..DSL |
2 | ||
| 22429 - RING, E | ||||
| S2287-31390 |
S05C..XZU412,422..DSL |
2 | ||
| 22429 - RING, E | ||||
| S2287-31390 |
S05C..XZU412,422..DSL |
2 | ||
| 22432B - SHIM | ||||
| S2288-52450 |
S05C..XZU412,422..DSL T=1.60 |
1 | ||
| S2288-52510 |
S05C..XZU412,422..DSL T=1.90 |
1 | ||
| S2288-52500 |
S05C..XZU412,422..DSL T=1.85 |
1 | ||
| S2288-52460 |
S05C..XZU412,422..DSL T=1.65 |
1 | ||
| S2288-52490 |
S05C..XZU412,422..DSL T=1.80 |
1 | ||
| S2288-52540 |
S05C..XZU412,422..DSL T=2.10 |
1 | ||
| S2288-52470 |
S05C..XZU412,422..DSL T=1.70 |
1 | ||
| S2288-52530 |
S05C..XZU412,422..DSL T=2.00 |
1 | ||
| S2288-52480 |
S05C..XZU412,422..DSL T=1.75 |
1 | ||
| S2288-55970 |
S05C..XZU412,422..DSL T=2.25 |
1 | ||
| S2288-52520 |
S05C..XZU412,422..DSL T=1.95 |
1 | ||
| S2288-55960 |
S05C..XZU412,422..DSL T=2.15 |
1 | ||
| S2288-52560 |
S05C..XZU412,422..DSL T=2.30 |
1 | ||
| S2288-55950 |
S05C..XZU412,422..DSL T=2.05 |
1 | ||
| S2288-52550 |
S05C..XZU412,422..DSL T=2.20 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| S2238-52970 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2238-53120 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| S2238-52970 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2238-53120 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| S2232-13930 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2232-13940 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| S2232-13930 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2232-13940 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22433C - BUSH(FOR ADAPTER SCREW) | ||||
| S2232-21701 |
S05C..XZU412,422..DSL |
1 | ||
| 22434 - SHACKLE | ||||
| S2204-51110 |
S05C..XZU412,422..DSL |
1 | ||
| 22440 - FLYWEIGHT SUB-ASSY | ||||
| S2236-02310 |
S05C..XZU412,422..DSL |
1 | ||
| 22440B - FLYWEIGHT SUB-ASSY | ||||
| S2230-41780 |
S05C..XZU412,422..DSL |
1 | ||
| 22453 - SPRING, ADAPTER | ||||
| S2241-41360 |
S05C..XZU412,422..DSL |
1 | ||
| 22457 - SHAFT | ||||
| S2230-72720 |
S05C..XZU412,422..DSL |
1 | ||
| 22458 - SCREW, STOP | ||||
| S2286-51320 |
S05C..XZU412,422..DSL |
1 | ||
| 22459 - NUT | ||||
| S2282-51890 |
S05C..XZU412,422..DSL |
1 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| S2235-02340 |
S05C..XZU412,422..DSL |
2 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| S2235-02340 |
S05C..XZU412,422..DSL |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| S2287-71440 |
S05C..XZU412,422..DSL T=0.70 |
2 | ||
| S2287-71400 |
S05C..XZU412,422..DSL T=0.50 |
2 | ||
| S2287-71460 |
S05C..XZU412,422..DSL T=0.80 |
2 | ||
| S2287-71420 |
S05C..XZU412,422..DSL T=0.60 |
2 | ||
| S2287-71450 |
S05C..XZU412,422..DSL T=0.75 |
2 | ||
| S2287-71410 |
S05C..XZU412,422..DSL T=0.55 |
2 | ||
| S2287-71430 |
S05C..XZU412,422..DSL T=0.65 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| S2287-71440 |
S05C..XZU412,422..DSL T=0.70 |
2 | ||
| S2287-71400 |
S05C..XZU412,422..DSL T=0.50 |
2 | ||
| S2287-71460 |
S05C..XZU412,422..DSL T=0.80 |
2 | ||
| S2287-71420 |
S05C..XZU412,422..DSL T=0.60 |
2 | ||
| S2287-71450 |
S05C..XZU412,422..DSL T=0.75 |
2 | ||
| S2287-71410 |
S05C..XZU412,422..DSL T=0.55 |
2 | ||
| S2287-71430 |
S05C..XZU412,422..DSL T=0.65 |
2 | ||
| 22460E - ARM ASSY, GUIDE | ||||
| S2230-72580 |
S05C..XZU412,422..DSL |
1 | ||
| 22461 - PLUG, SCREW | ||||
| S2284-51250 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| S2284-51480 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22461 - PLUG, SCREW | ||||
| S2284-51250 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| S2284-51480 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22463B - TUBE, RUBBER | ||||
| S2238-51800 |
S05C..XZU412,422..DSL |
1 | ||
| 22464A - BLOCK, SLIDING | ||||
| S2243-41140 |
S05C..XZU412,422..DSL |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| S2240-52351 |
S05C..XZU412,422..DSL |
1 | ||
| 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) | ||||
| S2289-11060 |
S05C..XZU412,422..DSL |
1 | ||
| 22465B - SEAL, OIL(FOR ADJUSTING LEVER) | ||||
| S2282-71530 |
S05C..XZU412,422..DSL |
1 | ||
| 22467 - NUT, ROUND | ||||
| S2253-51120 |
S05C..XZU412,422..DSL |
1 | ||
| 22468 - COVER, PLATE | ||||
| S2238-61390 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2238-62010 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22468 - COVER, PLATE | ||||
| S2238-61390 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2238-62010 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22468A - O, RING | ||||
| S2284-71540 |
S05C..XZU412,422..DSL |
1 | ||
| 22471 - LEVER SUB-ASSY, GUIDE | ||||
| S2241-53101 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2241-53110 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22471 - LEVER SUB-ASSY, GUIDE | ||||
| S2241-53101 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2241-53110 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22471A - SHAFT, LEVER SUPPORTING | ||||
| S2235-81410 |
S05C..XZU412,422..DSL |
1 | ||
| 22480 - COVER SUB-ASSY, GOVERNOR | ||||
| S2238-02410 |
S05C..XZU412,422..DSL |
1 | ||
| 22480A - BOLT | ||||
| S2281-51920 |
S05C..XZU412,422..DSL |
4 | ||
| 22480E - GASKET, GOVERNOR COVER | ||||
| S2284-72620 |
S05C..XZU412,422..DSL |
1 | ||
| 22481 - GASKET | ||||
| S2284-72510 |
S05C..XZU412,422..DSL |
1 | ||
| 22481A - SEAT, SPRING, INNER | ||||
| S2235-12010 |
S05C..XZU412,422..DSL |
2 | ||
| 22551 - SEAT, SPRING(FOR FLYWEIGHT) | ||||
| S2235-11810 |
S05C..XZU412,422..DSL |
2 | ||
| 22552A - SPRING, RETURN(FOR CAM PLATE) | ||||
| S2234-11710 |
S05C..XZU412,422..DSL |
1 | ||
| 22552C - WASHER(FOR CAM PLATE BUSH) | ||||
| S2287-71370 |
S05C..XZU412,422..DSL T=0.3,NO.2 |
1 | ||
| S2287-71360 |
S05C..XZU412,422..DSL T=0.2,NO.2 |
1 | ||
| S2287-71380 |
S05C..XZU412,422..DSL T=0.4,NO.2 |
1 | ||
| S2287-71390 |
S05C..XZU412,422..DSL T=0.5,NO.2 |
1 | ||
| S2287-71880 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22552C - WASHER(FOR CAM PLATE BUSH) | ||||
| S2287-71370 |
S05C..XZU412,422..DSL T=0.3,NO.2 |
1 | ||
| S2287-71360 |
S05C..XZU412,422..DSL T=0.2,NO.2 |
1 | ||
| S2287-71380 |
S05C..XZU412,422..DSL T=0.4,NO.2 |
1 | ||
| S2287-71390 |
S05C..XZU412,422..DSL T=0.5,NO.2 |
1 | ||
| S2287-71880 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22552D - PLATE, CAM | ||||
| S2236-94130 |
S05C..XZU412,422..DSL |
1 | ||
| 22555 - BRACKET, STOPPER | ||||
| S2234-35550 |
S05C..XZU412,422..DSL |
1 | ||
| 22557 - CAM, FULL STOP | ||||
| S2236-94810 |
S05C..XZU412,422..DSL |
1 | ||
| 22557A - PIN, CONNECTING(FOR FULL STOP CAM) | ||||
| S2245-51230 |
S05C..XZU412,422..DSL |
1 | ||
| 22557B - WASHER, PLATE(FOR CONNECTING PIN) | ||||
| S2288-51930 |
S05C..XZU412,422..DSL T=0.05 |
1 | ||
| S2288-51440 |
S05C..XZU412,422..DSL T=0.10 |
1 | ||
| S2288-51450 |
S05C..XZU412,422..DSL T=0.20 |
1 | ||
| 22557C - RING, E(FOR CONNECTING PIN) | ||||
| S2287-31390 |
S05C..XZU412,422..DSL |
1 | ||
| 22558 - SHAFT, SLIDING BLOCK | ||||
| S2233-81070 |
S05C..XZU412,422..DSL |
1 | ||
| 22558A - SPRING(FOR SLIDING BLOCK SHAFT) | ||||
| S2241-12810 |
S05C..XZU412,422..DSL |
1 | ||
| 22579B - ACTUATOR, IDLE UP DIAPHRAGM | ||||
| S2248-01060 |
S05C..XZU412,422..DSL |
1 | ||
| 22699A - BRACKET, ADJUSTING | ||||
| S2234-37370 |
S05C..XZU412,422..DSL |
1 | ||
| 22702 - LEVER ASSY, FLOATING | ||||
| S2204-11440 |
S05C..XZU412,422..DSL |
1 | ||
| 22702A - SPRING, FLOATING ARM | ||||
| S2234-15100 |
S05C..XZU412,422..DSL |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| S2288-51920 |
S05C..XZU412,422..DSL T=0.10 |
2 | ||
| S2288-51270 |
S05C..XZU412,422..DSL T=0.30 |
2 | ||
| S2288-51280 |
S05C..XZU412,422..DSL T=0.40 |
1 | ||
| S2288-51030 |
S05C..XZU412,422..DSL T=0.20 |
2 | ||
| S2288-51930 |
S05C..XZU412,422..DSL T=0.05 |
2 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| S2288-51920 |
S05C..XZU412,422..DSL T=0.10 |
2 | ||
| S2288-51270 |
S05C..XZU412,422..DSL T=0.30 |
2 | ||
| S2288-51280 |
S05C..XZU412,422..DSL T=0.40 |
1 | ||
| S2288-51030 |
S05C..XZU412,422..DSL T=0.20 |
2 | ||
| S2288-51930 |
S05C..XZU412,422..DSL T=0.05 |
2 | ||
| 22702C - ARM, FLOATING | ||||
| S2235-71091 |
S05C..XZU412,422..DSL |
1 | ||
| 22702E - LEVER SUB-ASSY, CONTROL | ||||
| S2235-02530 |
S05C..XZU412,422..DSL |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| S2234-15110 |
S05C..XZU412,422..DSL |
1 | ||
| 22707 - LEVER, STOP | ||||
| S2234-84660 |
S05C..XZU412,422..DSL |
1 | ||
| 22707A - COLLAR, STOP LEVER | ||||
| S2233-21950 |
S05C..XZU412,422..DSL |
1 | ||
| 22723 - DAMPER, FLYWEIGHT HOLDER | ||||
| S2238-51900 |
S05C..XZU412,422..DSL |
6 | ||
| 22728A - GUIDE, SPRING | ||||
| S2238-53110 |
S05C..XZU412,422..DSL |
2 | ||
| 22729 - NUT, ADJUSTING(FOR FLYWEIGHT) | ||||
| S2282-52310 |
S05C..XZU412,422..DSL |
2 | ||
| 22730 - BUSHING ASSY, CAMSHAFT | ||||
| S2232-22380 |
S05C..XZU412,422..DSL |
1 | ||
| 22738 - BUSHING, GUIDE(FOR FLYWEIGHT) | ||||
| S2232-22230 |
S05C..XZU412,422..DSL |
1 | ||
| 22757 - SPRING, SPEED CONTROL, A | ||||
| S2232-14750 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2232-14470 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22757 - SPRING, SPEED CONTROL, A | ||||
| S2232-14750 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2232-14470 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22761 - SLIDER(FOR SPEED CONTROL) | ||||
| S2234-91131 |
S05C..XZU412,422..DSL |
1 | ||
| 22761A - SHAFT, SLIDING WEIGHT | ||||
| S2231-81300 |
S05C..XZU412,422..DSL L=33.54 |
1 | ||
| S2231-81450 |
S05C..XZU412,422..DSL L=34.74 |
1 | ||
| S2231-81290 |
S05C..XZU412,422..DSL L=33.74 |
1 | ||
| S2231-81260 |
S05C..XZU412,422..DSL L=34.34 |
1 | ||
| S2231-81310 |
S05C..XZU412,422..DSL L=33.34 |
1 | ||
| S2231-81250 |
S05C..XZU412,422..DSL L=34.54 |
1 | ||
| S2231-81280 |
S05C..XZU412,422..DSL L=33.94 |
1 | ||
| S2231-81270 |
S05C..XZU412,422..DSL L=34.14 |
1 | ||
| 22776B - NUT, CAP(FOR SCREW STOPPER) | ||||
| S2234-21820 |
S05C..XZU412,422..DSL |
1 | ||
| 22776C - SCREW, STOPPER | ||||
| S2239-52140 |
S05C..XZU412,422..DSL |
1 | ||
| 22795 - PLUG, SCREW | ||||
| S2284-51490 |
S05C..XZU412,422..DSL |
1 | ||
| 22795A - WASHER, SCREW PLUG | ||||
| S2284-72400 |
S05C..XZU412,422..DSL |
1 | ||
| Common parts | ||||
| S2239-61020 | ||||
| S2245-61260 | ||||
| S2281-51290 | ||||
| S2281-51380 | ||||
| S2281-51480 | ||||
| S2281-51860 | ||||
| S2281-52590 | ||||
| S2281-52990 | ||||
| S2281-53340 | ||||
| S2281-53410 | ||||
| S2281-53490 | ||||
| S2281-53600 | ||||
| S2282-11530 | ||||
| S2282-51480 | ||||
| S2283-51280 | ||||
| S2284-71730 | ||||
| S2284-71940 | ||||
| S2286-32450 | ||||
| S2287-31390 | ||||
| S2287-71320 | ||||
| S2287-72280 | ||||
| S2288-57660 | ||||
| SL120-00604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
