XZU422L-TKMTSV3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422

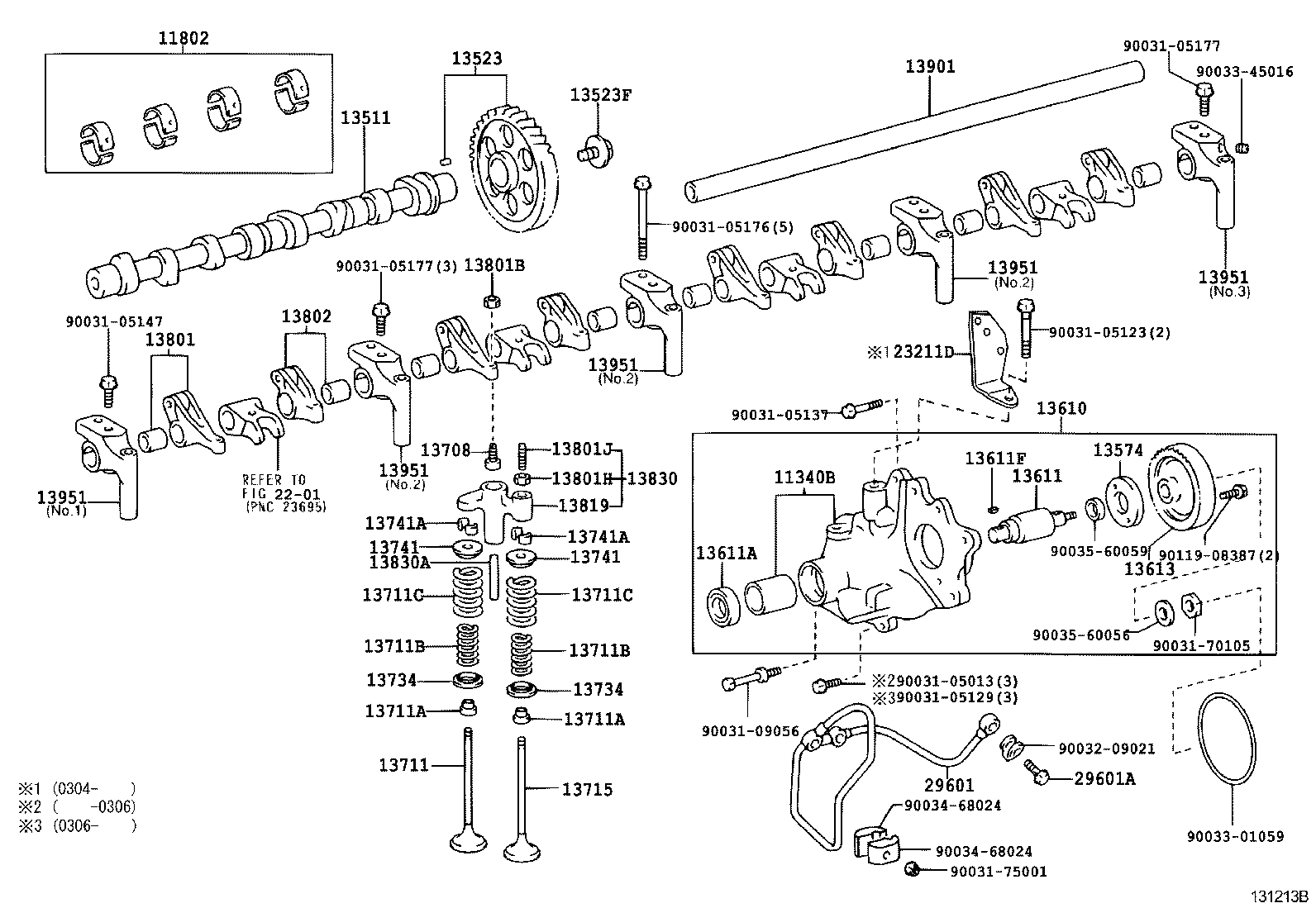

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11340B - SLEEVE(FOR INJECTION PUMP DRIVE SHAFT BEARING HOLDER) | ||||
| 11340-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11801-78020 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 13501-78120 |
S05C..XZU412,422..DSL |
1 | ||
| 13501-78070 |
S05C..XZU412,422..DSL |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13050-78020 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90038-01021 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 13574 - PLATE, PUMP DRIVE SHAFT | ||||
| 13574-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 13610 - SHAFT ASSY, INJECTION PUMP DRIVE HOUSING | ||||
| 13610-78060 |
S05C..XZU412,422..5F |
1 | ||
| 13611 - SHAFT, INJECTION | ||||
| 13611-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 13611A - SEAL, OIL(FOR INJECTION SHAFT) | ||||
| 90033-11034 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 13611F - KYE, WOODRUFF(FOR INJECTION SHAFT) | ||||
| 90029-18002 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
2 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78120 |
S05C..XZU412,422..5F |
1 | ||
| 13708 - SCREW SUB-ASSY, VALVE ADJUSTING | ||||
| 13708-89104 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-89104 |
J05C,S05C..XZU404,41#,42#,43# |
8 | ||
| 13711-78040 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90038-12004 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90038-12004 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90035-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90035-01052 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90035-01051 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90035-01051 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-78020 |
J05C,S05C..XZU404,41#,42#,43# |
8 | ||
| 13715-78021 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-89103 |
J05C,S05C..XZU404,41#,42#,43# |
16 | ||
| 13741-78060 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-89103 |
J05C,S05C..XZU404,41#,42#,43# |
16 | ||
| 13741-78060 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90038-13006 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90038-13006 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
32 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90031-78090 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13801H - NUT | ||||
| 90031-78090 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13801J - SCREW, VALVE ADJUSTING | ||||
| 13788-89101 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
8 | ||
| 13830A - PIN, CROSSHEAD | ||||
| 38753-37010 |
J05C,S05C..XZU404,41#,42#,43# |
8 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-78050 |
S05C..XZU404,41#,422,424,434 |
1 | ||
| 13901-78020 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 NO.1 |
1 | ||
| 23211D - BRACKET(FOR INJECTION PIPE) | ||||
| 23211-78270 |
S05C..XZU412,422..DSL |
1 | ||
| 29601 - PIPE SUB-ASSY, OIL(FOR INJECTION PUMP DRIVE HOUSING SHA | ||||
| 29601-78071 |
S05C..XZU412,422..5F |
1 | ||
| 29601A - BOLT, UNION(FOR INJECTION PUMP DRIVE HOUSING SHAFT) | ||||
| 90034-01012 |
S05C..XZU412,422..5F |
1 | ||
| Common parts | ||||
| 90031-05013 | ||||
| 90031-05123 | ||||
| 90031-05129 | ||||
| 90031-05137 | ||||
| 90031-05147 | ||||
| 90031-05176 | ||||
| 90031-05177 | ||||
| 90031-09056 | ||||
| 90031-70105 | ||||
| 90031-75001 | ||||
| 90032-09021 | ||||
| 90033-01059 | ||||
| 90033-45016 | ||||
| 90034-68024 | ||||
| 90035-60056 | ||||
| 90035-60059 | ||||
| 90119-08387 | ||||
| Linked diagrams | ||||
| 2201 | ||||
