XZU422L-TKMTSV3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 19311-78010 |
J05C,S05C..XZU404,412,414,420,422,424,430,434 |
1 | ||
| 11309B - SEAL(FOR OIL SEAL RETAINER) | ||||
| 90033-19008 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.2 |
1 | ||
| 11351 - HOUSING, FLYWHEEL | ||||
| 11308-78261 |
S05C..XZU412,422..DSL W(TACHOMETER) |
1 | ||
| 11308-78260 |
S05C..XZU412,422..DSL W(TACHOMETER) |
1 | ||
| 11308-78380 |
S05C..XZU412,422..DSL |
1 | ||
| 11308-78390 |
S05C..XZU412,422..DSL W(TACHOMETER) |
1 | ||
| 11308-78210 |
S05C..XZU412,422..DSL |
1 | ||
| 11308-78390 |
S05C..XZU412,422..DSL |
1 | ||
| 11351D - PLATE, STIFFENER, RH(FOR FLYWHEEL HOUSING) | ||||
| 33118-37060 |
S05C..XZU412,422..DSL |
1 | ||
| 11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING) | ||||
| 33119-37041 |
S05C..XZU412,422..DSL |
1 | ||
| 33119-37042 |
S05C..XZU412,422..DSL |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-89101 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
1 | ||
| 11354-78060 |
S05C..XZU412,422..DSL;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-89101 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN NO.1 |
1 | ||
| 11354-78060 |
S05C..XZU412,422..DSL;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11305-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST | ||||
| 11366-78010 |
S05C..XZU412,422..DSL;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11309-89101 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90033-19007 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-78040 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 17657 - GASKET, REAR PLATE | ||||
| 17657-78040 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 17657A - GASKET, REAR PLATE, NO.2 | ||||
| 17657-78030 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| Common parts | ||||
| 23211-78250 | ||||
| 28017-78010 | ||||
| 82715-3V120 | ||||
| 90031-05001 | ||||
| 90031-05048 | ||||
| 90031-05087 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05134 | ||||
| 90031-05141 | ||||
| 90031-05145 | ||||
| 90031-05149 | ||||
| 90031-05155 | ||||
| 90031-09049 | ||||
| 90031-16058 | ||||
| 90031-16102 | ||||
| 90031-19092 | ||||
| 90031-19093 | ||||
| 90031-19120 | ||||
| 90031-75002 | ||||
| 90033-45015 | ||||
| 90038-63001 | ||||
| 90038-63002 | ||||
| 90038-63003 | ||||
| 90119-08386 | ||||

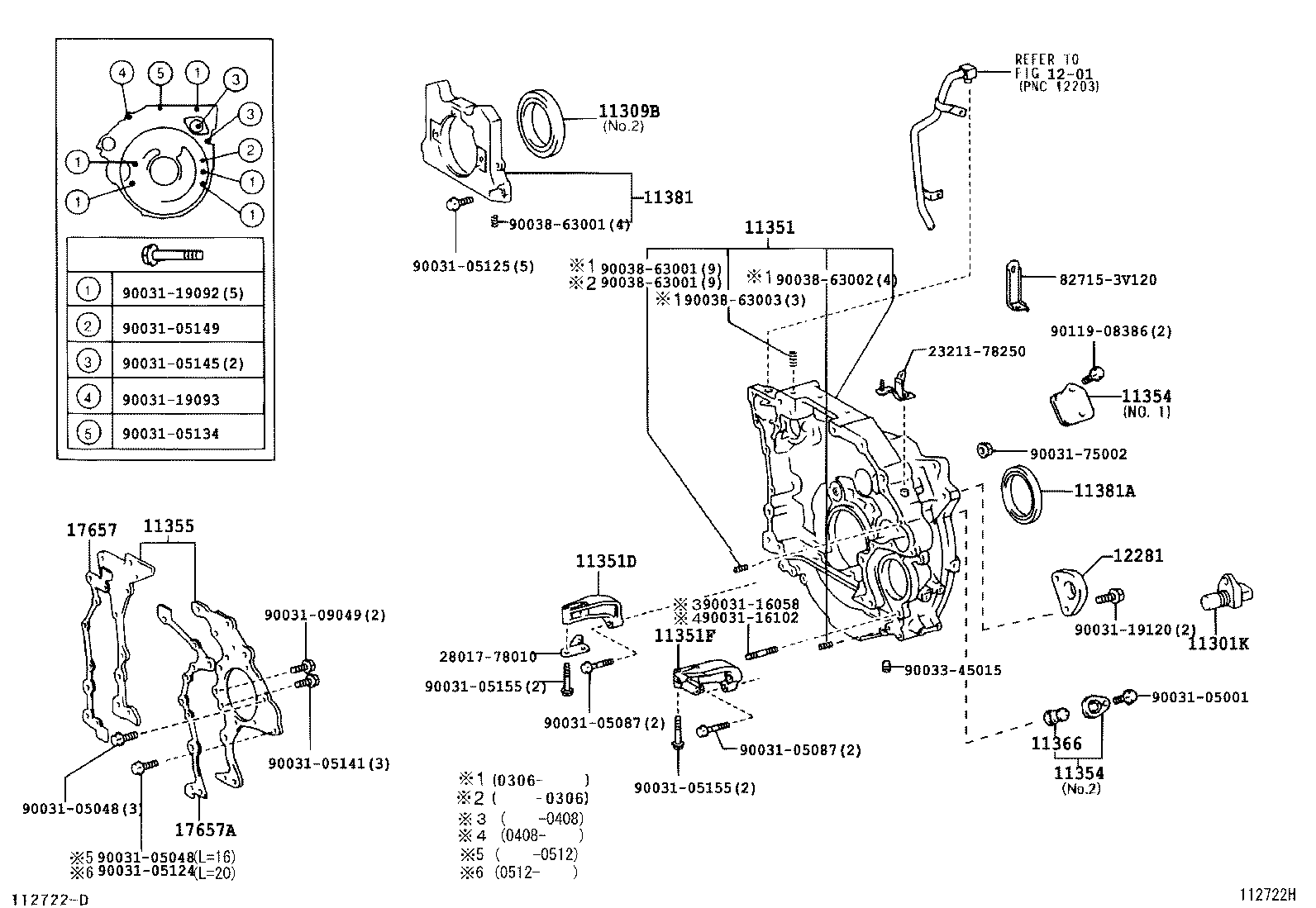

| Linked diagrams | ||||
| 1201 | ||||
