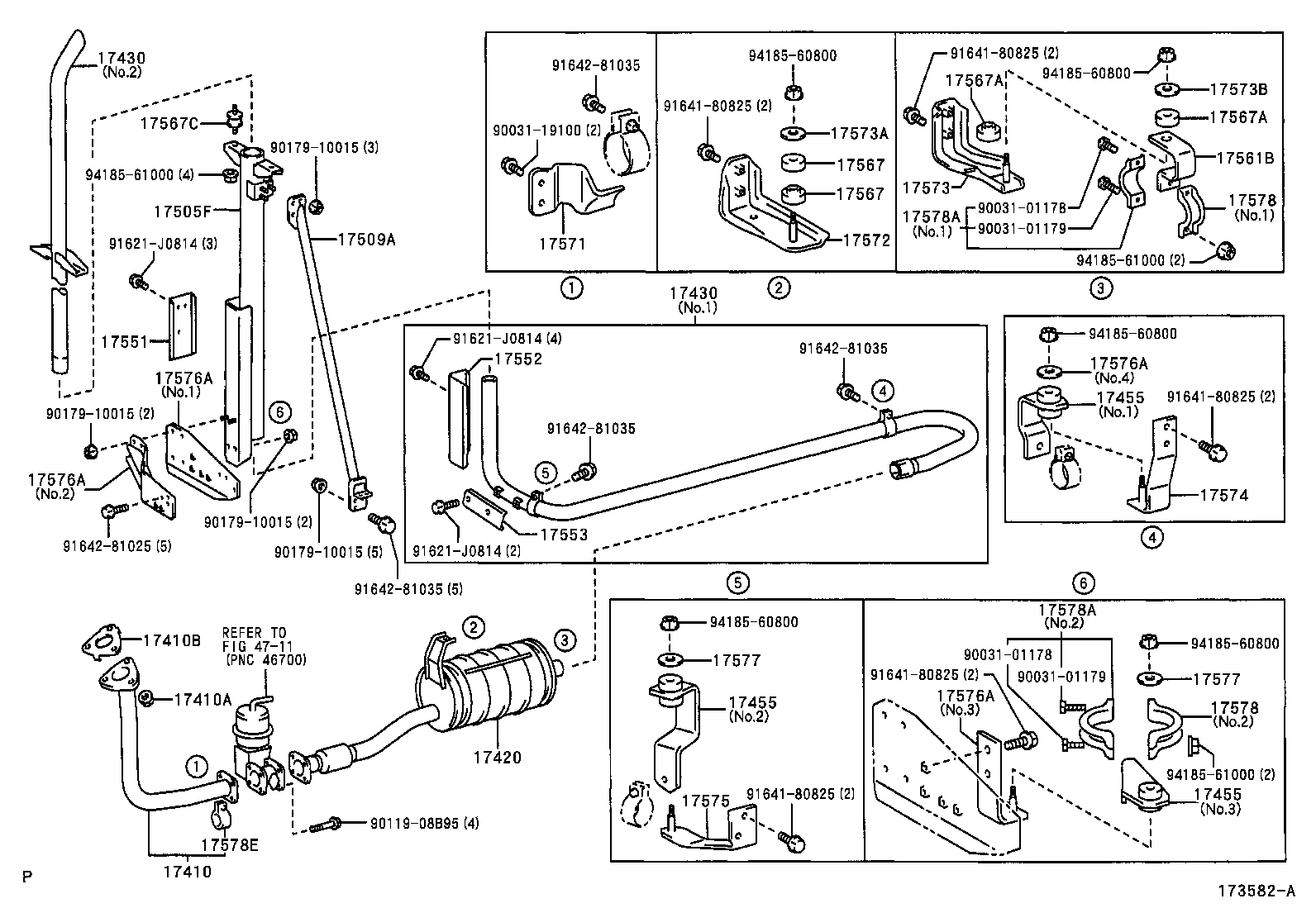

XZU422L-TKMTSV (2002)
Toyota Dyna
(0212-0610)W04D..WU410..GCC,GEN ; (0212- )J05C,S05C..XZU412,420,422,430..DSL ; (
SHORT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78090 |
S05C..XZU412,422..GCC |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05C..XZU412,422..DSL |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78390 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE |
1 | ||
| 17403-78260 |
S05C..XZU412,422..GCC |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17572-78071 |
J05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
S05C..XZU422..85T..DSL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78060 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05C..XZU412,422..GCC |
1 | ||
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0212- )S05C..XZU422..85T..DSL
VERTICAL TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78090 |
S05C..XZU412,422..GCC |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05C..XZU412,422..DSL |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78390 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE |
1 | ||
| 17403-78260 |
S05C..XZU412,422..GCC |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78411 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17405-78400 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78411 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17405-78400 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17505F - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-78081 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-78021 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17572-78071 |
J05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
S05C..XZU422..85T..DSL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78090 |
S05C..XZU422..85T..DSL |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78110 |
S05C..XZU422..85T..DSL UAE SPEC |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78060 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78060 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17578-78070 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17578-78070 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05C..XZU412,422..GCC |
1 | ||
| Common parts | ||||
| 90031-01178 | ||||
| 90031-01179 | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81025 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0212- )S05C..XZU404,414,424,434..ARL ; (0212- )S05C..XZU412,422..5F..75T,85T
VERTICAL TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78090 |
S05C..XZU412,422..GCC |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78390 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE |
1 | ||
| 17403-78260 |
S05C..XZU412,422..GCC |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78411 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17405-78400 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78411 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17405-78400 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78040 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 17455-78100 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17455-78030 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17505F - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-78081 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-78021 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17572-78071 |
J05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
S05C..XZU422..85T..DSL |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
S05C..XZU422..85T..DSL |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
S05C..XZU422..85T..DSL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD SHORT TAIL & VERTICAL TAIL PIPE |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78090 |
S05C..XZU422..85T..DSL |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78110 |
S05C..XZU422..85T..DSL UAE SPEC |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78020 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17576-78031 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.2 |
1 | ||
| 16721-78010 |
S05C..XZU412..RHD..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU414,422..LHD..(55T,85T);S05C..XZU412,424..LHD..5F..(75T,85T)..TD |
1 | ||
| 17576-78050 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE,NO.3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD VERTICAL TAIL PIPE |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78060 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78060 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17578-78070 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78040 |
S05C..XZU422..85T..DSL VERTICAL TAIL PIPE,NO.1 |
1 | ||
| 17578-78070 |
S05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05C..XZU412,422..GCC |
1 | ||
| Common parts | ||||
| 90031-01178 | ||||
| 90031-01179 | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81025 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
