XZU420-TKFSS3 (2000)
Toyota Dyna
ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51003-37060 |
XZU420 |
1 | ||
| 51003-37890 |
XZU420 AUSTRALIA SPEC |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37230 |
XZU41#,420,430 |
1 | ||
| 51568B - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37360 |
XZU41#,420 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37180 |
XZU41#,420,430 |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37300 |
XZU420 |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||

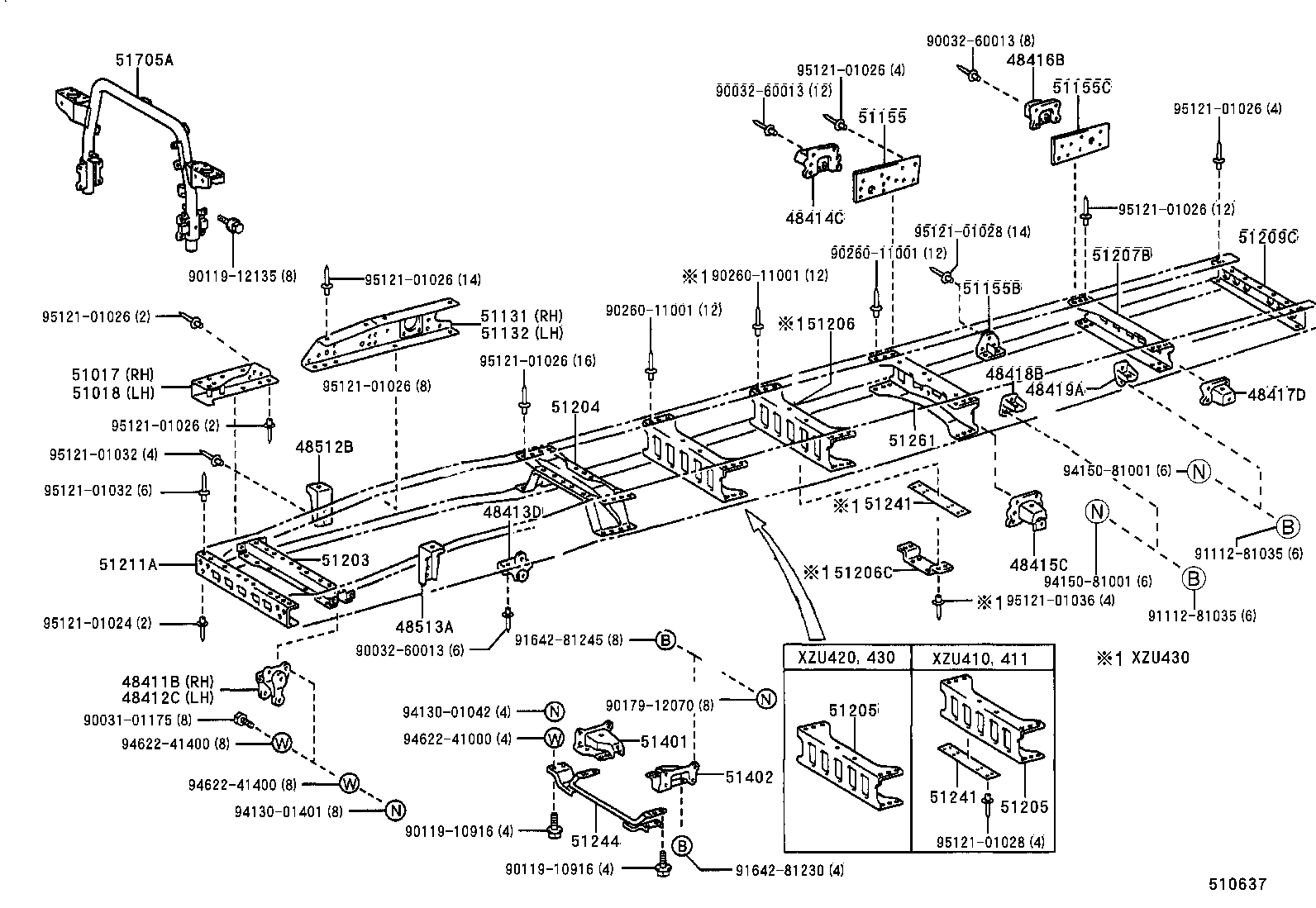

ILLUST NO. 2 OF 2(0010- )XZU410,411,420,430
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37090 |
XZU410,411,420,430 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37080 |
XZU410,411,420,430 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48403-37030 |
XZU410,411,420,430 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37140 |
XZU410,411,420,430 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37140 |
XZU410,411,420,430 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37120 |
XZU410,411,420,430 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37120 |
XZU410,411,420,430 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZU402,41#,420,430 |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZU402,41#,420,430 |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37080 |
XZU402,41#,420,430 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37080 |
XZU402,41#,420,430 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37080 |
XZU402,41#,420,430 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37070 |
XZU402,41#,420,430 |
1 | ||
| 51131 - RAIL, FRONT FRAME, RH | ||||
| 51131-37090 |
XZU420,430 |
1 | ||
| 51131-37130 |
XZU420,430 AUSTRALIA SPEC |
1 | ||
| 51132 - RAIL, FRONT FRAME, LH | ||||
| 51132-37090 |
XZU420,430 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37040 |
XZU402,41#,420,430 |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZU402,41#,420,430 |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37050 |
XZU402,41#,420,430 |
2 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-37080 |
XZU402,41#,420,430 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37110 |
XZU402,41#,420,430 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37070 |
XZU41#,420,430 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37070 |
XZU41#,420,430 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51271-37010 |
XZU402,41#,420,430 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37060 |
XZU41#,420,430 |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37130 |
XZU402,41#,420,430 |
1 | ||
| 51244 - MEMBER, ENGINE FRONT SUPPORT | ||||
| 51021-37020 |
XZU402,41#,420,430 |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37060 |
XZU402,41#,420,430 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37140 |
XZU402,41#,420,430 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37130 |
XZU402,41#,420,430 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37140 |
XZU402,41#,420,430 |
1 | ||
| 51705-37270 |
XZU402,41#,420,430 AUSTRALIA SPEC |
1 | ||
| Common parts | ||||
| 90031-01175 | ||||
| 90032-60013 | ||||
| 90119-10916 | ||||
| 90119-12135 | ||||
| 90179-12070 | ||||
| 90260-11001 | ||||
| 91112-81035 | ||||
| 91642-81230 | ||||
| 91642-81245 | ||||
| 94130-01042 | ||||
| 94130-01401 | ||||
| 94150-81001 | ||||
| 94622-41000 | ||||
| 94622-41400 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
ILLUST NO. 2 OF 2(0110- )WU41#,42#,XZU412,413,414,415,419,420,422,423,424,425,429
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01175 | ||||
| 90032-60013 | ||||
| 90105-14030 | ||||
| 90179-14039 | ||||
| 90260-11001 | ||||
| 91112-81035 | ||||
| 91642-81235 | ||||
| 94130-01202 | ||||
| 94130-01401 | ||||
| 94150-11400 | ||||
| 94150-81001 | ||||
| 94622-41400 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01038 | ||||
ILLUST NO. 1 OF 2(0110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10916 | ||||
| 90119-12135 | ||||
| 90179-12070 | ||||
| 91642-81230 | ||||
| 91642-81245 | ||||
| 91673-L1035 | ||||
| 94130-01042 | ||||
| 94622-41000 | ||||
