XZU414R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )J05C,S05C

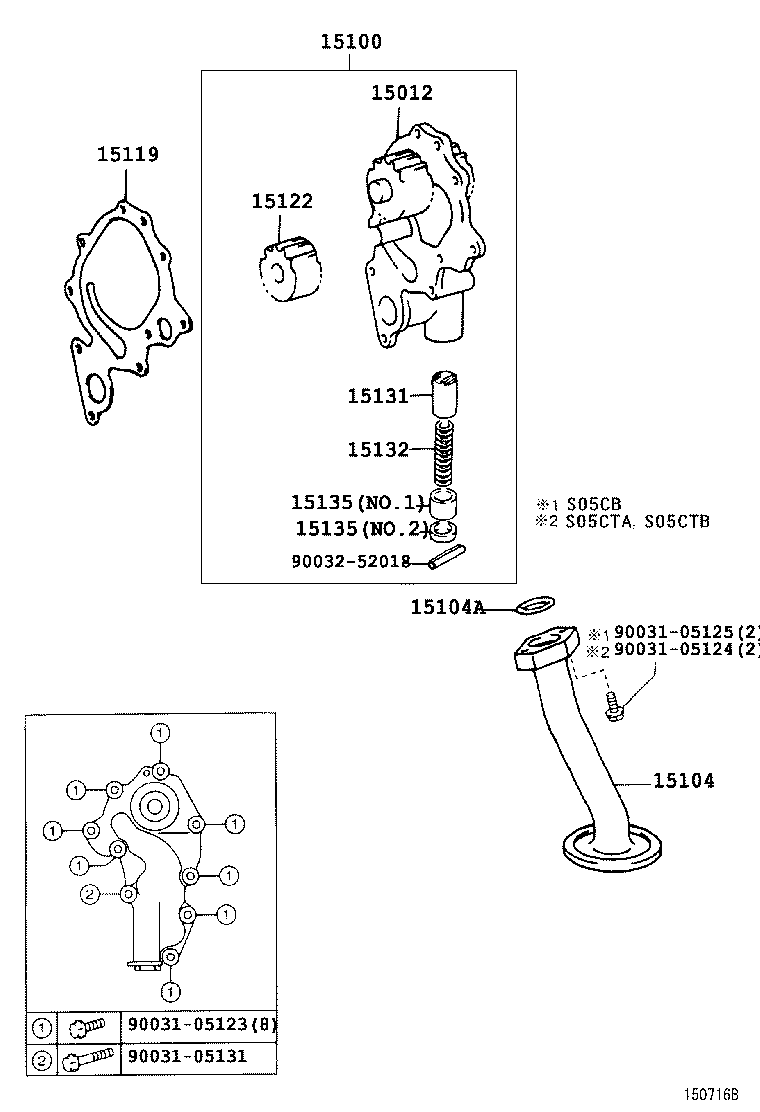

Click highlighted areas on diagram

diagram 15012 15100 15104 15104A 15119 15122 15131 15132 15135 15135 9003105123 9003105124 9003105125 9003105131 9003252018
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-89104

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15100 - PUMP ASSY, OIL
15110-89106

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15104 - STRAINER SUB-ASSY, OIL
15107-78040

S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN

 1
15104A - RING, O(FOR OIL STRAINER)
90033-01046

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15119 - GASKET, OIL PUMP COVER
15119-89101

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-89105

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-89102

J05C,S05C..XZU404,41#,42#,43#

 1
15131-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15165-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.1

 1
15165-78020

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.2

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15165-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.1

 1
15165-78020

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.2

 1
Common parts
90031-05123
90031-05124
90031-05125
90031-05131
90032-52018
