XZU414R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )RHD

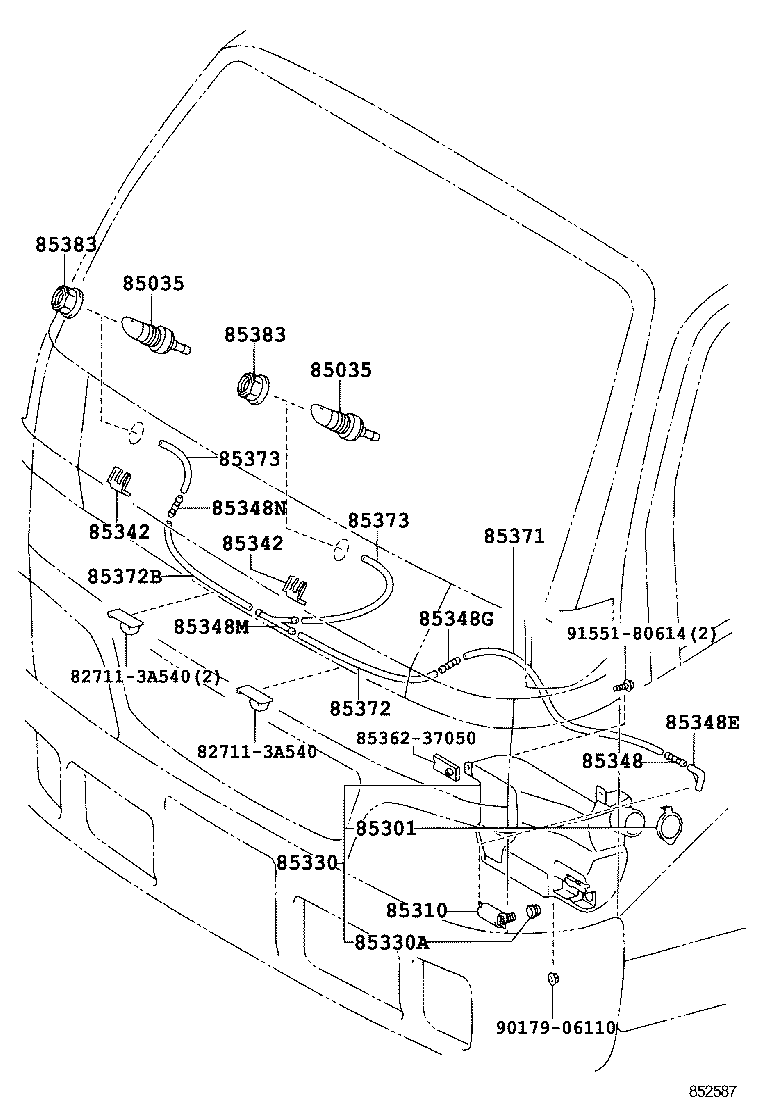

Click highlighted areas on diagram

diagram 827113A540 827113A540 85035 85035 85301 85310 85330 85330A 85342 85342 85348 85348E 85348G 85348M 85348N 8536237050 85371 85372 85372B 85373 85373 85383 85383 9017906110 9155180614
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
85301 - INLET SUB-ASSY, WASHER
85301-17010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-37090

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-28110

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

*H,L=800

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=100

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-06013

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*H,L=780

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

XZU404,414,424,434

*H,L=180

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

XZU404,414,424,434

*H,L=180

 1
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
Common parts
82711-3A540
85362-37050
90179-06110
91551-80614
