XZU414R-TKFQWQ3 (2002)
Toyota Dyna
Production
Dec 2002
-
Oct 2006
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )ARL

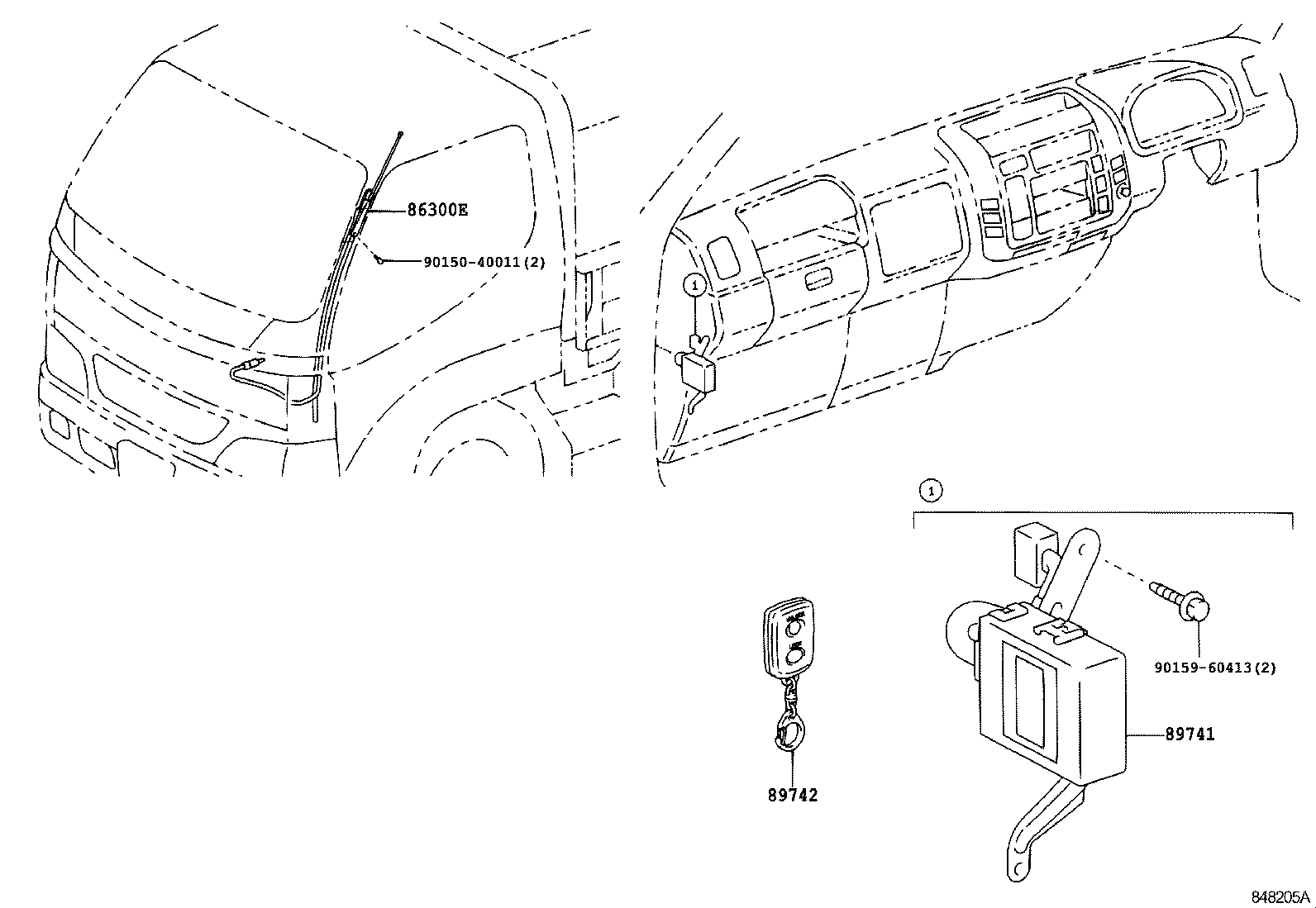

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300E - ANTENNA ASSY, WIRELESS DOOR LOCK | ||||
| 86300-37070 |
XZU404,414,424,434..ARL |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-37040 |
XZU404,414,424,434..ARL |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37020 |
XZU404,414,424,434..ARL |
1 | ||
| Common parts | ||||
| 90150-40011 | ||||
| 90159-60413 | ||||
