XZU414R-TKFQWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0610)XZU404,414,424,434..RHD

Click highlighted areas on diagram

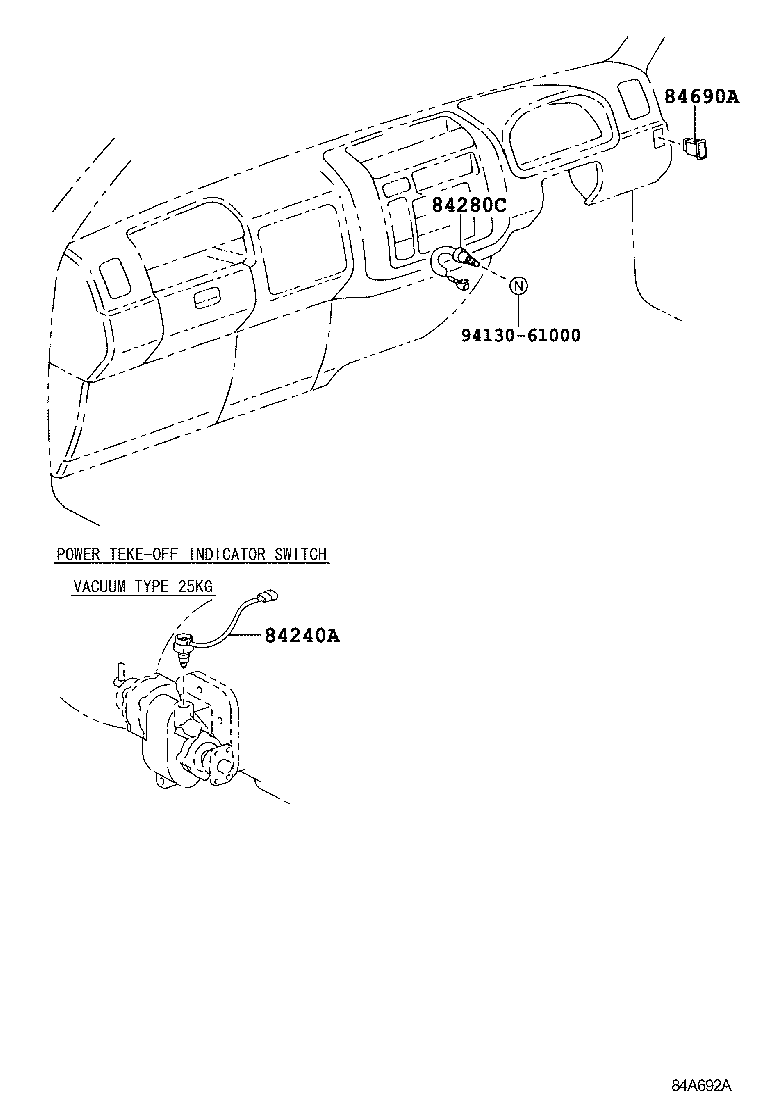

diagram 84240A 84280C 84690A 9413061000
Part # Description Qty Price
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

VACUUM TYPE 25KG

 1
84280C - SWITCH ASSY, POWER TAKE-OFF CLUTCH
88280-37010

XZU404,414,424,434..RHD

 1
84690A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84690-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
94130-61000
