Toyota Dyna XZU414 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
DYNA
XZU414R-TKFQWQ3 (2002)
8401 - SWITCH & RELAY & COMPUTER

XZU414R-TKFQWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine S05C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF10(0110-0610)RHD..ARL,GEN ; (0304-0802)SA

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02019	S05C..XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
28371D - RELAY, IGNITION, NO.3
90987-02018	S05C..XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37190	XZU404,414,424,434..ARL	12/2002 - 10/2006	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37250	XZU404,414,424,434	10/2001 - 11/2001	1
82683-37290	XZU404,414,424,434..ARL,GEN	12/2002 - 10/2006	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85915 - RELAY, MAIN
90987-02018	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
85916N - RELAY, TAIL LAMP
90987-02018	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85916P - RELAY, HEADLAMP
90987-02019	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85927 - RELAY, COOLING FAN
90987-02017	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
85930G - RELAY, ACC
90987-02018	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
85934 - RELAY, MAGNET-CLUTCH
90987-02017	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
85985 - RELAY, KEY REMINDER
80590-37080	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
86530 - RELAY ASSY, HORN
90987-02017	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
90159-60413
91551-80814
91554-80614
91611-B0816
93568-55016
94120-41000
Linked diagrams
3102
8405

ILLUST NO. 5 OF10(0110-0802)BU410,420,XZU412,414,415,422,424,425,434,435..LHD..DCR,DSL,TD ; (0212-06

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02019	S05C..XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
28371D - RELAY, IGNITION, NO.3
90987-02018	S05C..XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37190	XZU404,414,424,434..ARL	12/2002 - 10/2006	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37250	XZU404,414,424,434	10/2001 - 11/2001	1
82683-37290	XZU404,414,424,434..ARL,GEN	12/2002 - 10/2006	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85915 - RELAY, MAIN
90987-02018	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
85916N - RELAY, TAIL LAMP
90987-02018	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85916P - RELAY, HEADLAMP
90987-02019	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85927 - RELAY, COOLING FAN
90987-02017	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
85930G - RELAY, ACC
90987-02018	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
85934 - RELAY, MAGNET-CLUTCH
90987-02017	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
85985 - RELAY, KEY REMINDER
80590-37080	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
86530 - RELAY ASSY, HORN
90987-02017	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
90119-06022
91551-80814
91554-80614
93568-55016
94120-41000
Linked diagrams
8405

ILLUST NO. 6 OF10(0110-0802)BU410,420,XZU412,414,415,422,424,425,434,435..LHD..DCR,DSL,TD ; (0212-06

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570	BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD 28V 0.024A	10/2001 - 02/2008	1
84660C - SWITCH, COOLER
84660-37010	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)	10/2001 - 10/2006	1
84660D - BULB(FOR COOLER SWITCH)
88607-37010	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) 28V 0.87W	10/2001 - 10/2006	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050	BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD	10/2001 - 02/2008	1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 24V 1.8W	10/2001 - 10/2006	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 24V 1.8W,W(CAP)	10/2001 - 10/2006	1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Linked diagrams
5551
8413

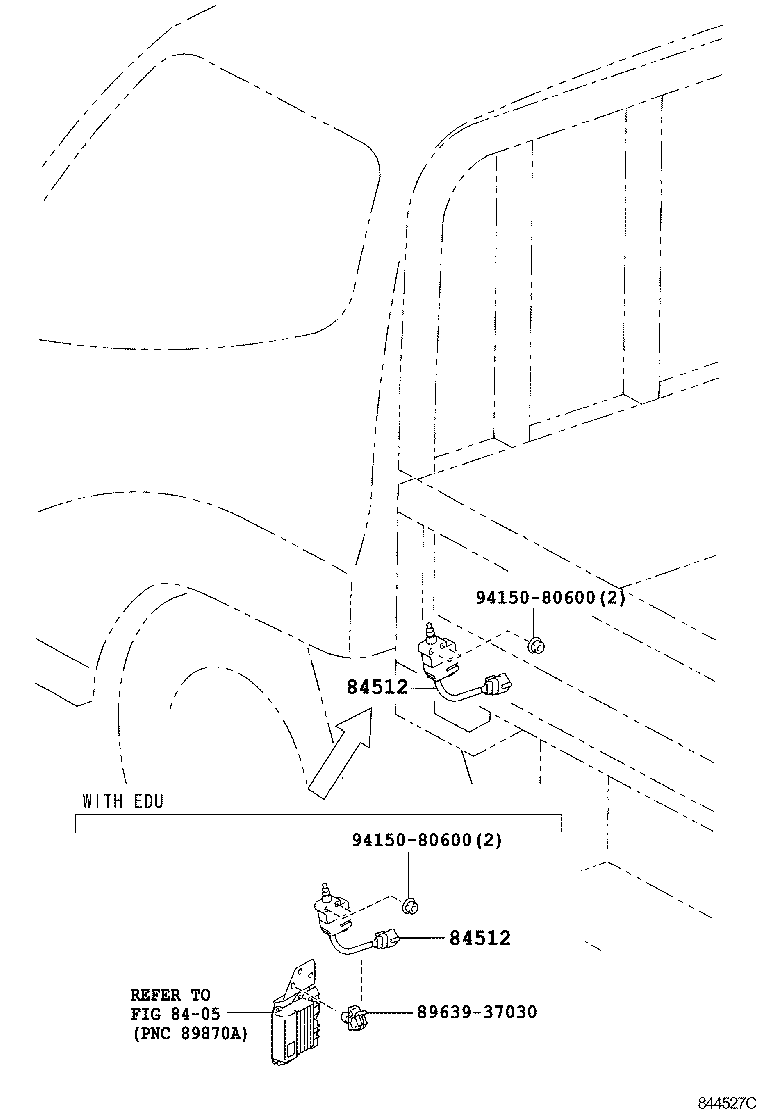

ILLUST NO. 9 OF10(0110-0311)EUR ; (0110-0610)XZU404,414,424,434..RHD ; (0610- )EUR,GCC,TAIW..DCRT

Click highlighted areas on diagram

TILT SWITCH

Part #	Description	Period	Qty
84512 - SWITCH, TILT CAB CONTROL
84512-37010	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
84512 - SWITCH, TILT CAB CONTROL
84512-37010	XZU404,414,424,434..RHD	10/2001 - 10/2006	1
Common parts
89639-37030
94150-80600
Linked diagrams
8405

ILLUST NO. 1 OF10(0110-0802)XZU404,412,414,420,422,424,430,434

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-37020	XZU404,412,422..5F;XZU414,424,434..ARL,GEN W(TACHOMETER)	10/2001 - 10/2006	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-37040	XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-37040	XZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
89421D - SENSOR, TURBO PRESSURE
89421-37020	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
89422A - SENSOR, WATER TEMPERATURE
89422-37022	XZU404,41#,42#,434	10/2001 - 02/2003	1
89422-37023	XZU404,412,422..5F;XZU414,424,434..ARL,GEN	02/2003 - 10/2006	1
89454C - SENSOR, FUEL GAS TEMPERATURE
89454-37020	XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37040	XZU404,414,424,434	10/2001 - 06/2002	1
Common parts
26343-89101
90031-05001
90031-05123
90031-19110
90034-01011
90034-30040
90034-30041
90034-30042
90202-10012
90404-10024
Linked diagrams
1503
1603
2202

ILLUST NO. 4 OF10(0110-0610)5F..GEN ; (0110-0708)EUR ; (0212-0610)ARL,GCC ; (0304-0802)SA ; (0401-08

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28371 - RELAY, IGNITION, NO.1
90987-02018	S05C..XZU404,414,424,434..ARL,GEN	10/2001 - 10/2006	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37210	XZU404,414,424..ARL,GEN;WU410,420,XZU420,43#..ARL,SA	12/2002 - 05/2004	1
82662-37211	XZU404,414,424,434..ARL,GEN	05/2004 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37210	XZU404,414,424..ARL,GEN;WU410,420,XZU420,43#..ARL,SA	12/2002 - 05/2004	1
82662-37211	XZU404,414,424,434..ARL,GEN	05/2004 - 10/2006	1
Common parts
90179-06158
90179-08233
91651-B0825
Linked diagrams
8405
8414
