XZU414R-TKFQWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )XZU404,414,424,434..RHD

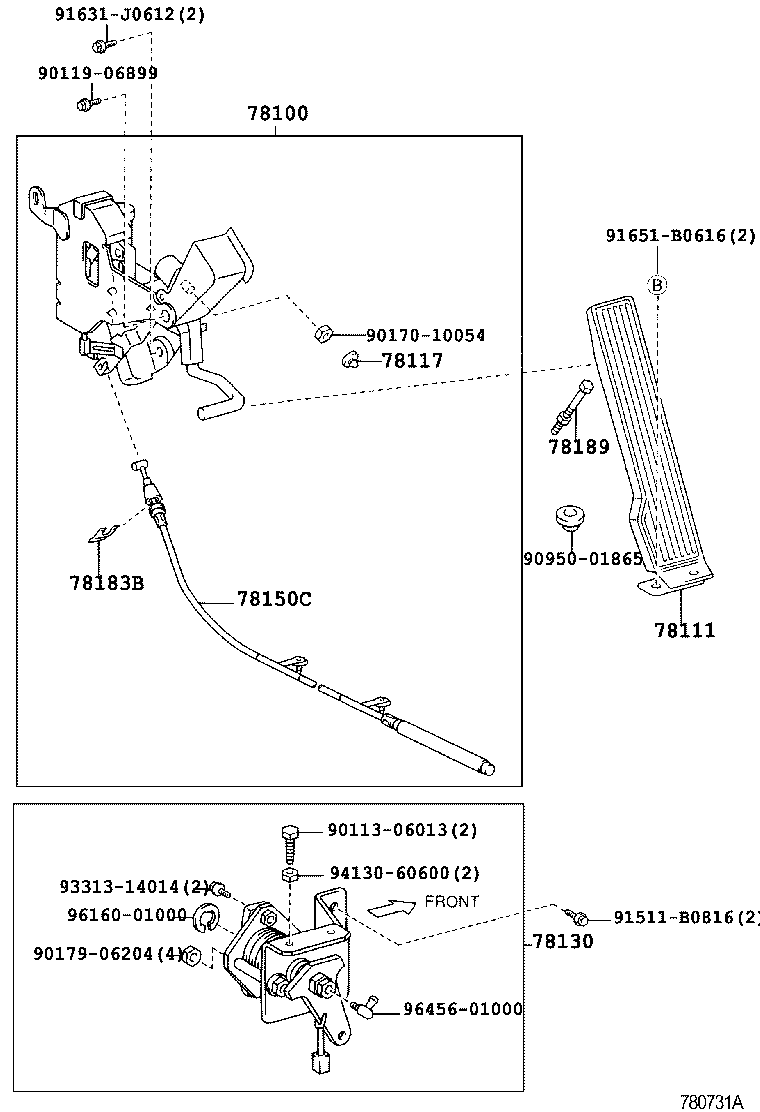

Click highlighted areas on diagram

diagram 78100 78111 78117 78130 78150C 78183B 78189 9011306013 9011906899 9017010054 9017906204 9095001865 91511B0816 91631J0612 91651B0616 9331314014 9413060600 9616001000 9645601000
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37021

XZU404,414,424,434..ARL,GEN

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26170

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37080

XZU404,414,424,434..RHD

 1
Common parts
90113-06013
90119-06899
90170-10054
90179-06204
90950-01865
91511-B0816
91631-J0612
91651-B0616
93313-14014
94130-60600
96160-01000
96456-01000
