XZU414R-TKFQWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110-0610)XZU424..EUR ; (0110-0610)XZU414,434..75T ; (0110-0610)XZU424..RHD..75T ;

Click highlighted areas on diagram

MAIN 2+HELPER 3-LEAF 48210-3V450

diagram 48210 48210C 48210C 48211 48212 48213 48214 48215 48220 48247 48251 48251 48251 48251 48252 48252 48252 48252 48252B 48252B 48253 48253 48253 48253 48253 48253 48253 48254 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V130

XZU414..65T

 2
48201-3V130

XZU414..65T

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V130

XZU414..65T

 2
48202-3V130

XZU414..65T

 2
48220 - SPRING ASSY, REAR LH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V080

XZU414..65T

 2
48247-3V080

XZU414..65T

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU404,414,424,434..ARL

 8
48252-37380

XZU404,414,424,434..ARL

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU404,414,424,434..ARL

 8
48252-37380

XZU404,414,424,434..ARL

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU404,414,424,434..ARL

 8
48252-37380

XZU404,414,424,434..ARL

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU404,414,424,434..ARL

 8
48252-37380

XZU404,414,424,434..ARL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU404,414,424,434..ARL

 4
48252-37670

XZU404,414,424,434..ARL

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU404,414,424,434..ARL

 4
48252-37670

XZU404,414,424,434..ARL

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU404,414..(55T,65T)..ARL

 4
48254-3V070

XZU404,414..(55T,65T)..ARL

 4
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU404,414,424,434..ARL

 2
48284-3B750

XZU404,414,424,434..ARL

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2

ILLUST NO. 2 OF 2(0304- )WU410..75T..SA ; (0304- )XZU412,420,422,430..6F ; (0610- )WU420,XZ

Click highlighted areas on diagram

TYPE B:MAIN 6+HELPER 5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48253 48253 48253D 48253D 48256 48261 48262 48263 48265 48266 48269 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V130

XZU414..65T

 2
48201-3V130

XZU414..65T

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V130

XZU414..65T

 2
48202-3V130

XZU414..65T

 2
48220 - SPRING ASSY, REAR LH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V080

XZU414..65T

 2
48247-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V130

XZU414..65T

 2
48213-3V130

XZU414..65T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V130

XZU414..65T

 2
48214-3V130

XZU414..65T

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU404,414,424,434..ARL

 2
48284-3B750

XZU404,414,424,434..ARL

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2

ILLUST NO. 2 OF 2(0304- )WU410..75T..SA ; (0304- )XZU412,420,422,430..6F ; (0610- )XZU433 ;

Click highlighted areas on diagram

TYPE C:MAIN 6+HELPER 6-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48251 48251 48253 48253 48253D 48256 48261 48262 48262 48264 48265 48266 48269 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48282 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V130

XZU414..65T

 2
48201-3V130

XZU414..65T

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V130

XZU414..65T

 2
48202-3V130

XZU414..65T

 2
48220 - SPRING ASSY, REAR LH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V080

XZU414..65T

 2
48247-3V080

XZU414..65T

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254-3V080

XZU414..65T

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V130

XZU414..65T

 2
48213-3V130

XZU414..65T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V130

XZU414..65T

 2
48214-3V130

XZU414..65T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V130

XZU414..65T

 2
48214-3V130

XZU414..65T

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU404,414,424,434..ARL

 2
48284-3B750

XZU404,414,424,434..ARL

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2

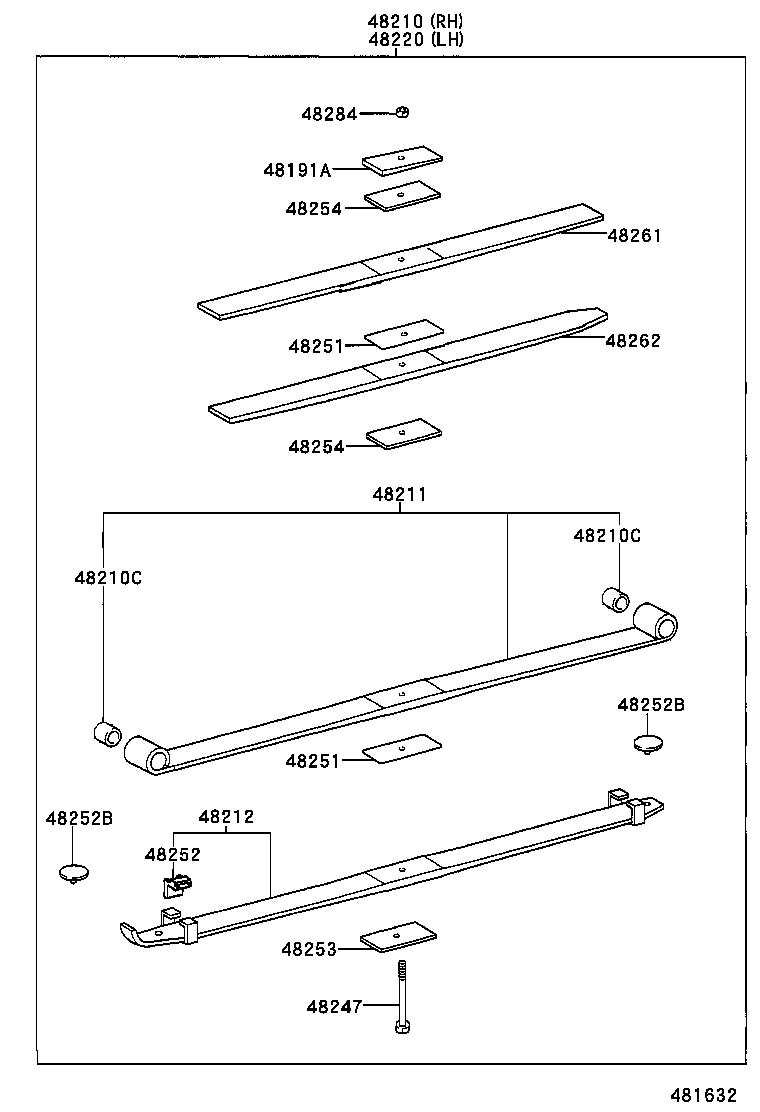

ILLUST NO. 2 OF 2(0212-0610)XZU414..65T

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF 48210-3V130

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU404,414,424,434..(55T,65T,85T)..ARL

 2
48210 - SPRING ASSY, REAR RH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V130

XZU414..65T

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V130

XZU414..65T

 2
48220 - SPRING ASSY, REAR LH
48210-3V130

XZU414..65T

MAIN 2+HELPER 2-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V080

XZU414..65T

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU404,414..(55T,65T)..ARL

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU404,414,424,434..ARL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU404,414,424,434..ARL

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU404,414,424,434..ARL

 4
48252-3B800

XZU404,414,424,434..ARL,EUR

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU414..65T

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU404,414..(55T,65T)..ARL

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU404,414..(55T,65T)..ARL

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V130

XZU414..65T

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V130

XZU414..65T

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU404,414,424,434..ARL

 2
94110-51200

XZU404,414,424,434..ARL,EUR

 2
