XZU414R-TKFQWQ3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )ARL

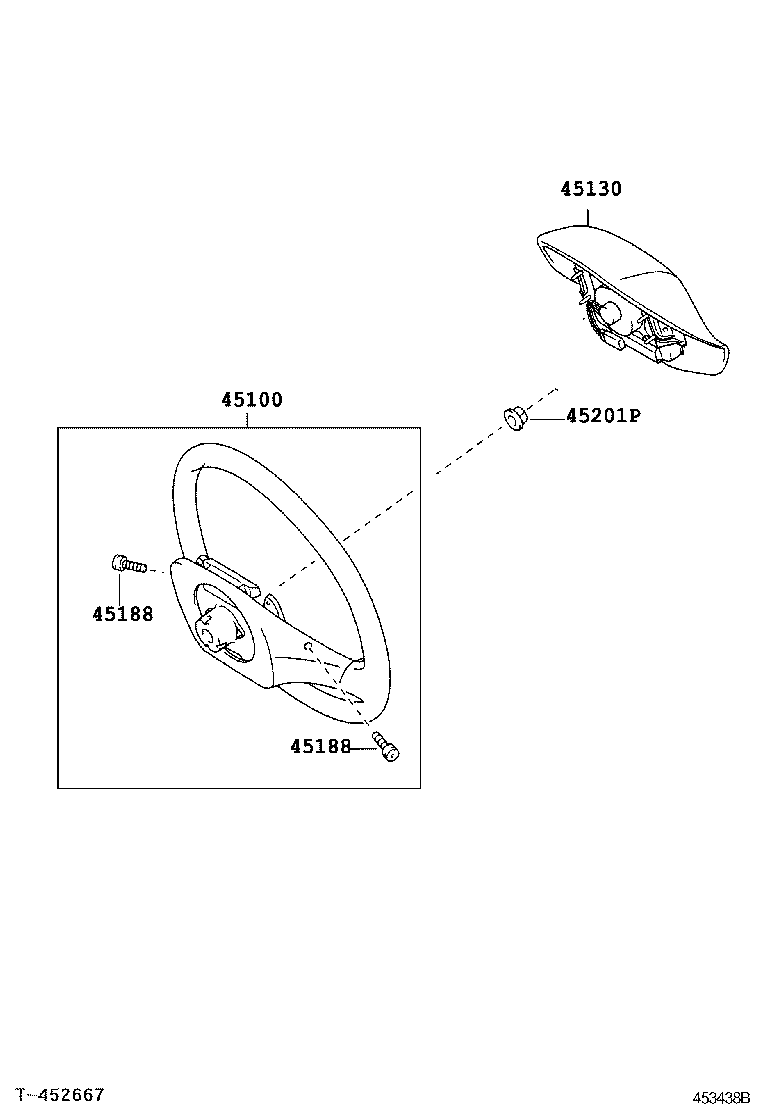

Click highlighted areas on diagram

W(SRS AIR BAG)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-37040B1

XZU404,414,424,434..ARL

2-SPOKE,URETHANE,W(SRS AIR BAG),MD.CHARCOAL,TRIM1#

 1
45100-36140B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
45130-37140B0

XZU404,414,424,434..ARL

W(SRS AIR BAG),MD.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

XZU404,414,424,434..ARL

L=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

XZU404,414,424,434..ARL

L=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
