XZU414L-TKMMW3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

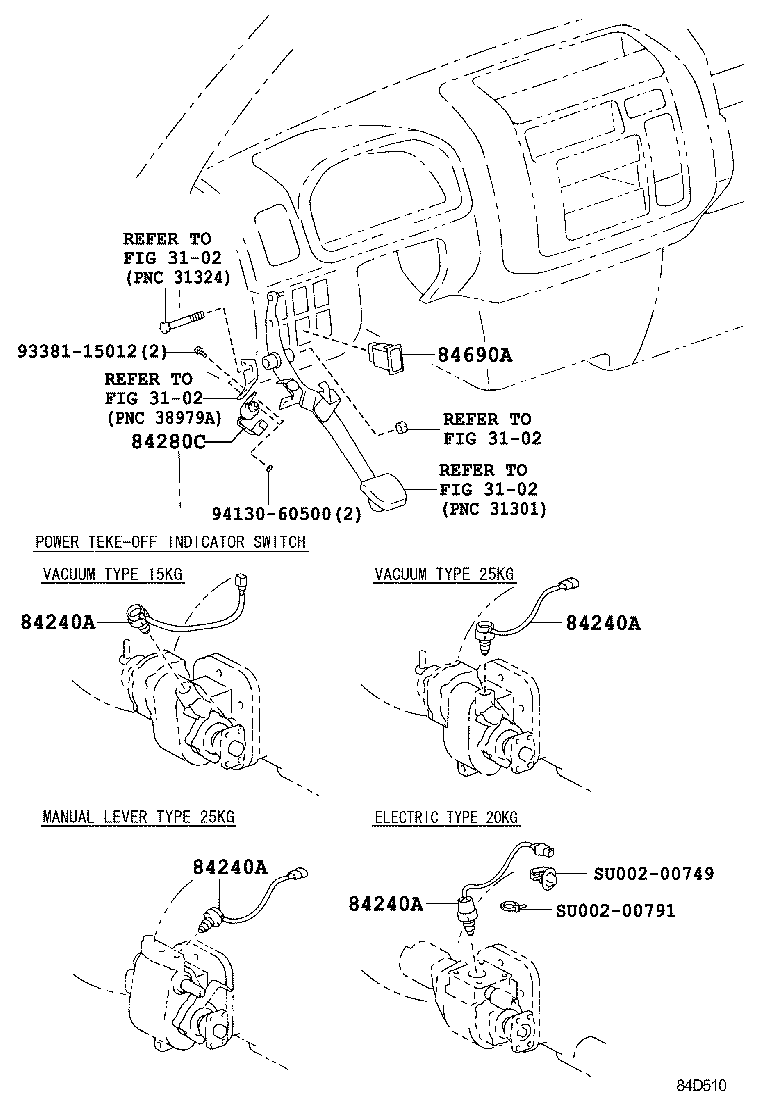

ILLUST NO. 1 OF 2(0212- )XZU413,423..5F ; (0212- )WU41#,422,XZU412,414,422,424..LHD..GCC,GEN

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 84240A 84240A 84240A 84240A 84280C 84690A 9338115012 9413060500 SU00200749 SU00200791
Part # Description Qty Price
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

VACUUM TYPE 25KG

 1
84240-93100

XZU412,422..5F;XZU414,424..LHD..GEN

MANUAL LEVER TYPE 25KG

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

VACUUM TYPE 25KG

 1
84240-93100

XZU412,422..5F;XZU414,424..LHD..GEN

MANUAL LEVER TYPE 25KG

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

VACUUM TYPE 25KG

 1
84240-93100

XZU412,422..5F;XZU414,424..LHD..GEN

MANUAL LEVER TYPE 25KG

 1
84240A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84240-37020

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

VACUUM TYPE 25KG

 1
84240-93100

XZU412,422..5F;XZU414,424..LHD..GEN

MANUAL LEVER TYPE 25KG

 1
84280C - SWITCH ASSY, POWER TAKE-OFF CLUTCH
88280-37020

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 1
84690A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84690-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
93381-15012
94130-60500
SU002-00749
SU002-00791
Linked diagrams
3102
