XZU414L-TKFRWW3 (2001)

Toyota Dyna

Production Oct 2001 - Aug 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0608)EUR ; (0110-0610)GEN..TD ; (0212-0610)ARL

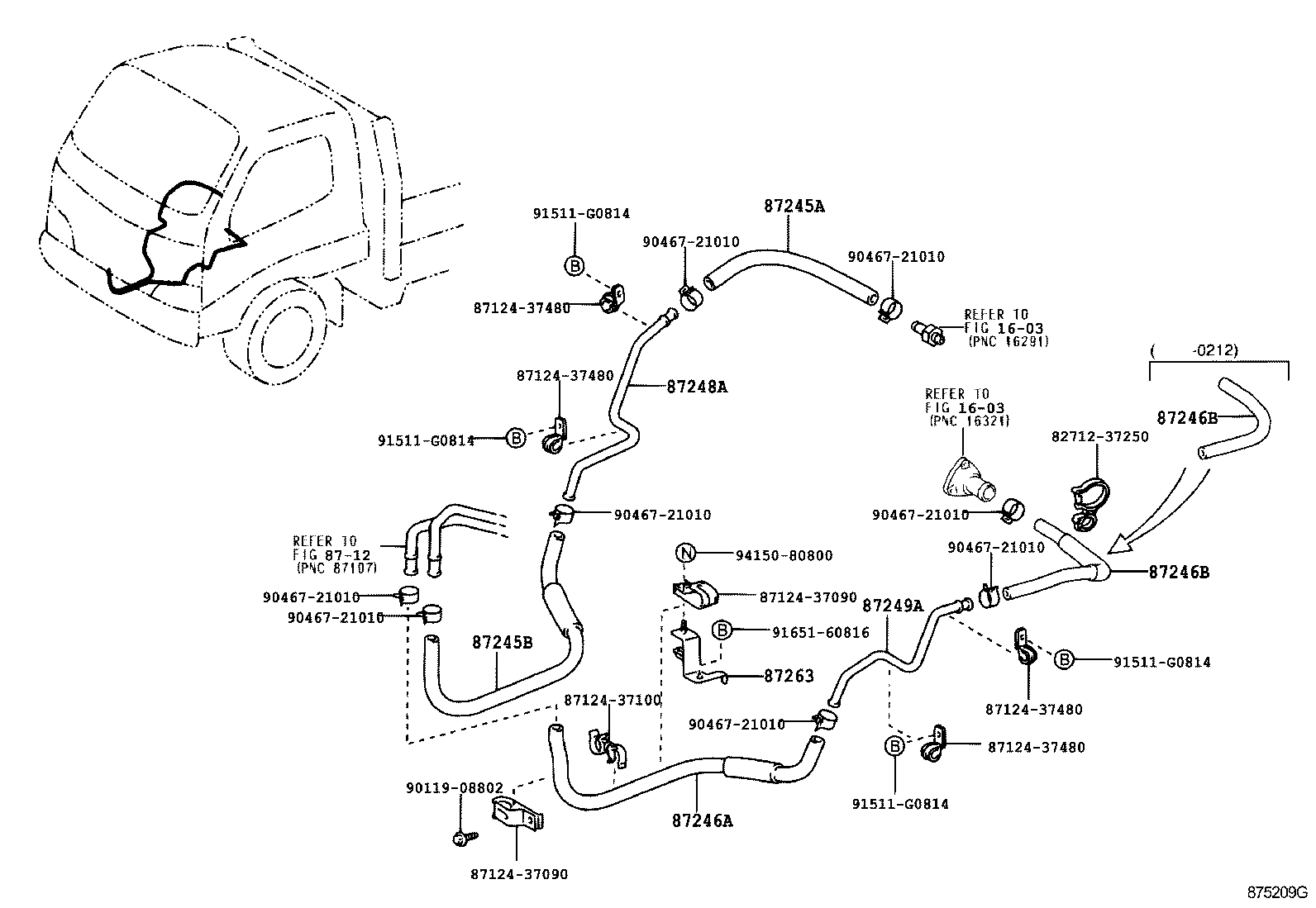

Click highlighted areas on diagram

diagram 1603 1603 8271237250 8712 8712437090 8712437090 8712437100 8712437480 8712437480 8712437480 8712437480 87245A 87245B 87246A 87246B 87246B 87248A 87249A 87263 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 9165160816 9415080800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
99556-30500

XZU414,424,434..EUR

*H,L=320

 1
87245B - HOSE, HEATER WATER, INLET B
99556-31000

XZU414,424,434..EUR

*H,L=860

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-31000

XZU414,424,434..EUR

*H,L=860

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37441

XZU414,424,434..EUR

 1
99556-30500

XZU404,414,424,434

*H,L=330

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37441

XZU414,424,434..EUR

 1
99556-30500

XZU404,414,424,434

*H,L=330

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37420

XZU414,424,434..EUR

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37430

XZU414,424,434..EUR

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37020

XZU414,424,434..EUR

 1
Common parts
82712-37250
87124-37090
87124-37100
87124-37480
90119-08802
90467-21010
91511-G0814
91651-60816
94150-80800
