XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

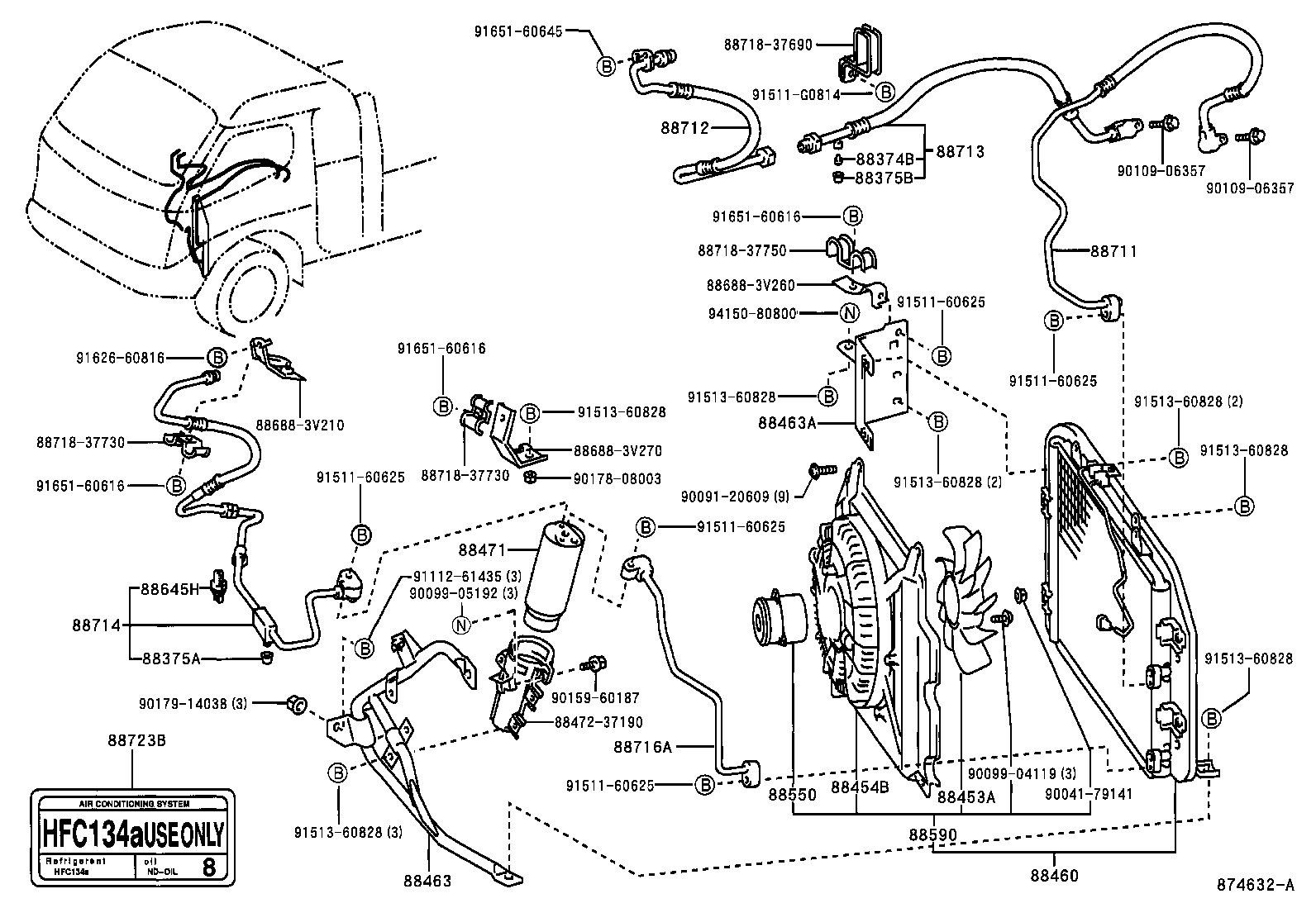

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 88374B 88375A 88375B 88453A 88454B 88460 88463 88463A 88471 8847237190 88550 88590 88645H 886883V210 886883V260 886883V270 88711 88712 88713 88714 88716A 8871837690 8871837730 8871837730 8871837750 88723B 9004179141 9009120609 9009904119 9009905192 9010906357 9010906357 9015960187 9017808003 9017914038 9111261435 9151160625 9151160625 9151160625 9151160625 9151160625 91511G0814 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9162660816 9165160616 9165160616 9165160616 9165160645 9415080800
Part # Description Qty Price
Common parts
88472-37190
88688-3V210
88688-3V260
88688-3V270
88718-37690
88718-37730
88718-37750
90041-79141
90091-20609
90099-04119
90099-05192
90109-06357
90159-60187
90178-08003
90179-14038
91112-61435
91511-60625
91511-G0814
91513-60828
91626-60816
91651-60616
91651-60645
94150-80800

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 3(0610-0805)XZU413,423..GEN ; (0610- )WU41#,422,XZU419,429,439..LHD ; (0701-0810)

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 61793C 88453A 88454B 88460 88463A 88471 8847237170 8847237220 88550 88590 88723B 88723B 9004179141 9009120609 9009120609 9009900148 9009900968 9009904119 9010514090 9010514090 9017914038 9017914038 9151360828 9151360828 9151360828 9151360828 9151360828 9338516016 9415010801 9415180800
Part # Description Qty Price
61793C - BRACKET, COOLER CONDENSER, NO.1
61793-37010

XZU413,423..GEN

 1
88453A - FAN, COOLING
88453-37010

XZU413,423..GEN

 1
88454B - SHROUD, FAN
88454-37070

XZU413,423..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-37481

XZU413,423..GEN

 1
88460-37700

XZU413,423..GEN

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37450

XZU413,423..GEN

 1
88463-37500

XZU413,423..GEN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

XZU413,423..GEN

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37100

XZU413,423..GEN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37160

XZU413,423..GEN

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
Common parts
88472-37170
88472-37220
90041-79141
90091-20609
90099-00148
90099-00968
90099-04119
90105-14090
90179-14038
91513-60828
93385-16016
94150-10801
94151-80800

ILLUST NO. 2 OF 3(0610-0805)XZU413,423..GEN ; (0610- )XZU417,419,427,429,439

Click highlighted areas on diagram

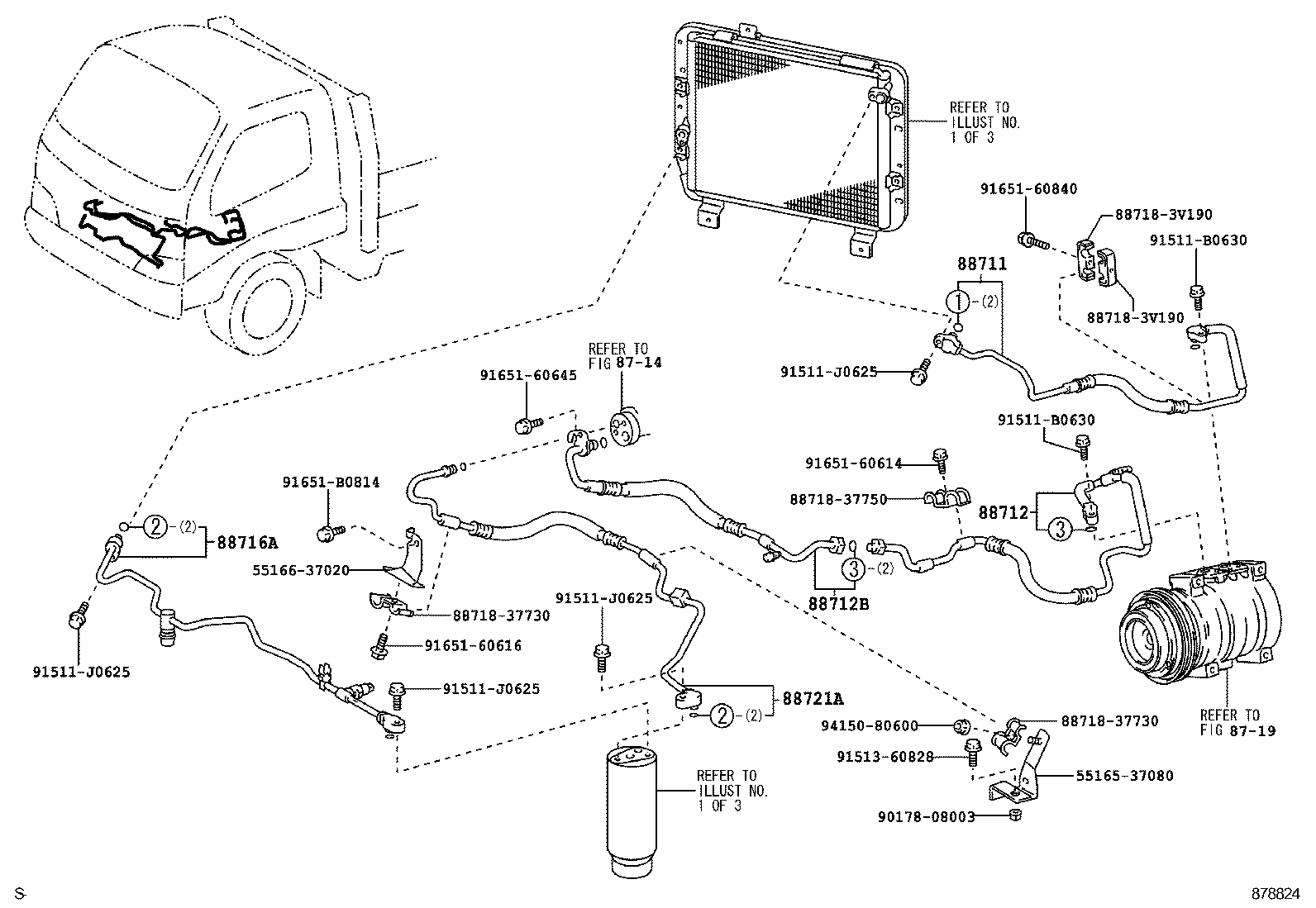

PIPING

diagram 5516537080 5516637020 8714 8719 88711 88712 88712B 88716A 8871837730 8871837730 8871837750 887183V190 887183V190 88721A 9017808003 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9165160614 9165160616 9165160645 9165160840 91651B0814 9415080600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V150

XZU413,423..GEN

 1
88711-3V100

XZU413,423..GEN

 1
88711-3V151

XZU413,423

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-3V810

XZU413,423..GEN

 1
88721A - HOSE, LIQUID, A
88721-3V050

XZU413,423..GEN

 1
88721-3V110

XZU413,423..GEN

 1
Common parts
55165-37080
55166-37020
88718-37730
88718-37750
88718-3V190
90178-08003
91511-B0630
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
94150-80600
Linked diagrams
8714
8719

ILLUST NO. 1 OF 3(0805- )XZU413,423..GEN

Click highlighted areas on diagram

CONDENSER & RECEIVER

diagram 88460 88461A 88463 88463A 88463B 88474 88710 88723B 9009120619 9009120619 9009120619 9009120619 9009120642 9151160612 9151160612 9151160612 9151160612
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-37481

XZU413,423..GEN

 1
88460-37700

XZU413,423..GEN

 1
88461A - CORE, COOLER CONDENSER
88461-37100

XZU413,423..GEN

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37490

XZU413,423..GEN

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37450

XZU413,423..GEN

 1
88463-37500

XZU413,423..GEN

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37510

XZU413,423..GEN

 1
88474 - DRYER, COOLER
88474-12030

XZU413,423..GEN

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37500

XZU413,423..GEN

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
Common parts
90091-20619
90091-20642
91511-60612

ILLUST NO. 2 OF 3(0805- )XZU413,423..GEN

Click highlighted areas on diagram

PIPING

diagram 5516537080 5516637020 8714 8719 88645P 88711 88712 88712B 8871824030 8871837730 8871837730 8871837750 887183V190 887183V190 88721A 9017808003 91511B0630 91511B0630 91511J0625 9151360828 9165160614 9165160616 9165160645 9165160840 91651B0814 9415080600 9415080600
Part # Description Qty Price
88645P - SWITCH, PRESSURE, NO.3
88645-34010

XZU413,423..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V150

XZU413,423..GEN

 1
88711-3V100

XZU413,423..GEN

 1
88711-3V151

XZU413,423

 1
88721A - HOSE, LIQUID, A
88721-3V050

XZU413,423..GEN

 1
88721-3V110

XZU413,423..GEN

 1
Common parts
55165-37080
55166-37020
88718-24030
88718-37730
88718-37750
88718-3V190
90178-08003
91511-B0630
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
94150-80600
Linked diagrams
8714
8719
