XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0010- )

Click highlighted areas on diagram

SENSOR

diagram 8271135280 88625H 88625P 88625Q 88626B
Part # Description Qty Price
Common parts
82711-35280

ILLUST NO. 1 OF 3(0010- )

Click highlighted areas on diagram

CONTROL

diagram 55519 55519 55900 55900B 55900B 55905A 55905B 55905B 55905B 55905C 55905K 55905L 55906 55908A 55909A 55910 55937 55937 55937 55937 55937 55937 8401 8401 9356715016 9356715016
Part # Description Qty Price
Common parts
93567-15016
Linked diagrams
8401

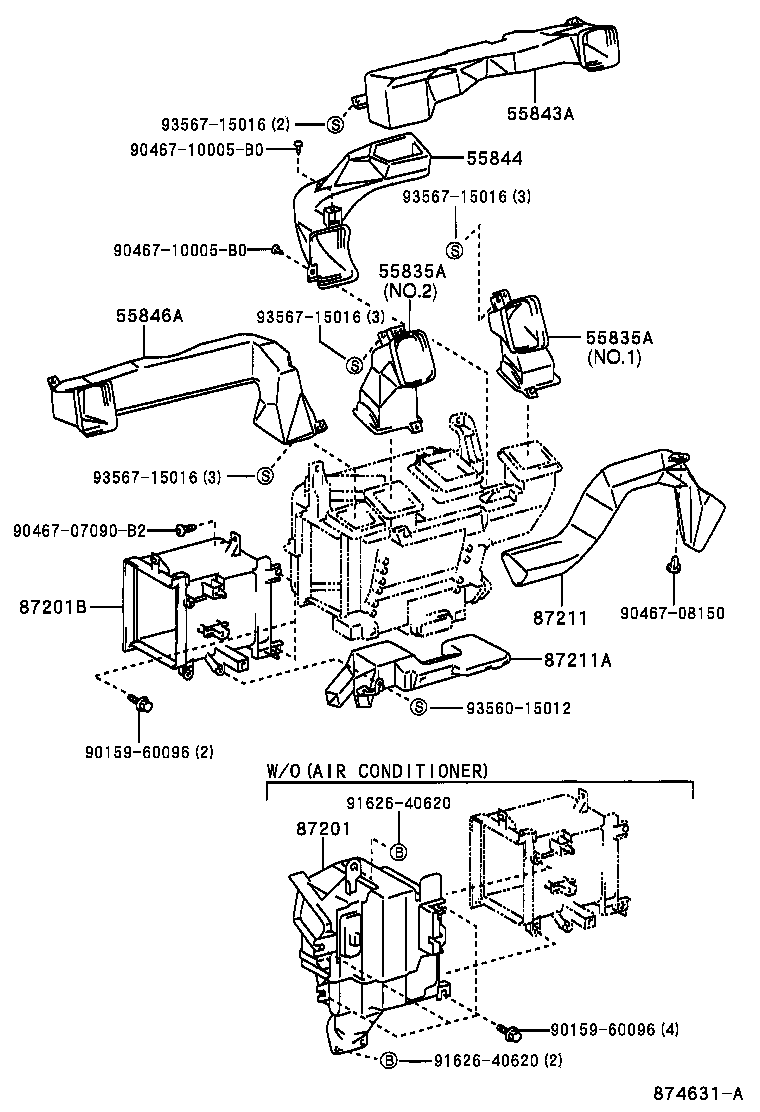

ILLUST NO. 2 OF 3(0010- )

Click highlighted areas on diagram

DUCT

diagram 55835A 55835A 55843A 55844 55846A 87201 87201B 87211 87211A 9015960096 9015960096 9046707090B2 9046708150 9046710005B0 9046710005B0 9162640620 9162640620 9356015012 9356715016 9356715016 9356715016 9356715016
Part # Description Qty Price
Common parts
90159-60096
90467-07090B2
90467-08150
90467-10005B0
91626-40620
93560-15012
93567-15016

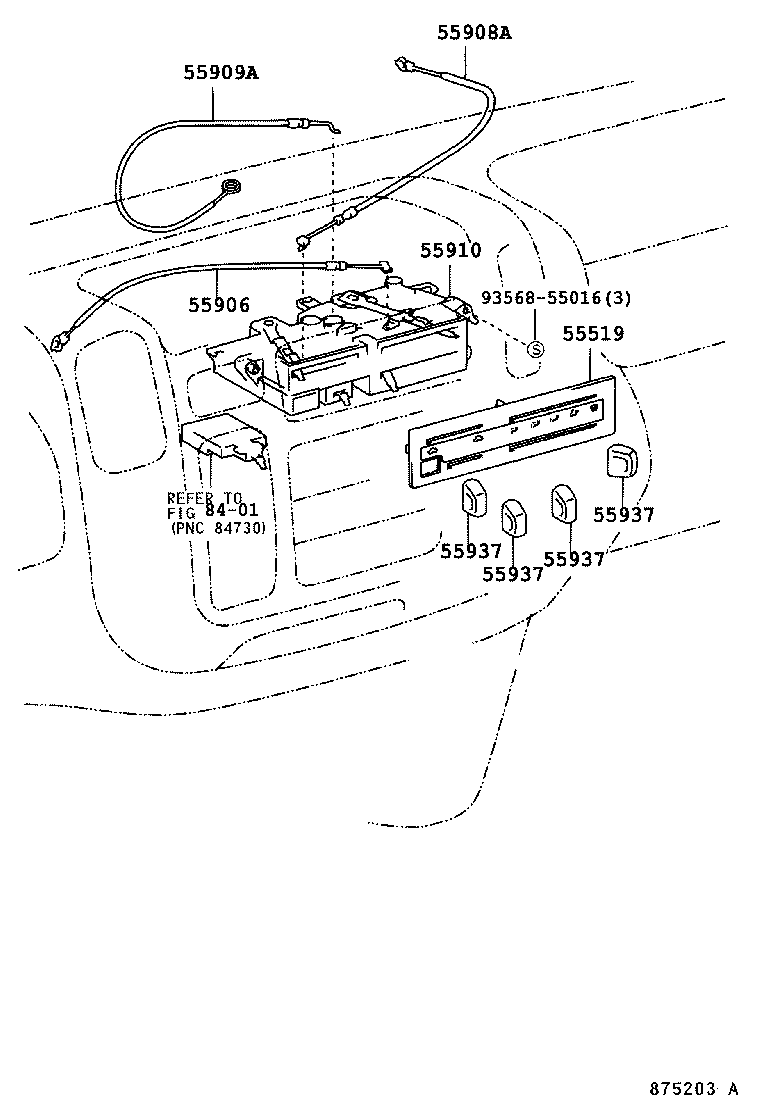

ILLUST NO. 1 OF 2(0110- )LHD

Click highlighted areas on diagram

CONTROL PANEL

diagram 55519 55906 55908A 55909A 55910 55937 55937 55937 55937 8401 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37100

WU41#,422,XZU413,417,423,427..LHD

W/O(AIR CONDITIONER)

 1
55519-37090

WU41#,422,XZU413,417,423,427..LHD

W(AIR CONDITIONER)

 1
55519-37090

WU41#,422..LHD;XZU413,423..5F

W(AIR CONDITIONER)

 1
55519-37100

WU41#,422..LHD;XZU413,423..5F

W/O(AIR CONDITIONER)

 1
55519-37160

WU41#,422,XZU413,423..LHD

W(BOOST VENTILATOR)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37070

WU410,XZU41#,42#..LHD..5F

 1
55908-37080

WU41#,422,XZU413,417,423,427..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37120

WU41#,422,XZU413,423..LHD

 1
55910-37070

WU41#,422,XZU413,423..LHD

W(HEATER)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

WU41#,422,XZU413,423..GCC,GEN

 3
55905-89115

WU41#,422,XZU413,423..GCC,GEN

W(HEATER)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

WU41#,422,XZU413,423..GCC,GEN

 3
55905-89115

WU41#,422,XZU413,423..GCC,GEN

W(HEATER)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

WU41#,422,XZU413,423..GCC,GEN

 3
55905-89115

WU41#,422,XZU413,423..GCC,GEN

W(HEATER)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

WU41#,422,XZU413,423..GCC,GEN

 3
55905-89115

WU41#,422,XZU413,423..GCC,GEN

W(HEATER)

 4
Common parts
93568-55016
Linked diagrams
8401

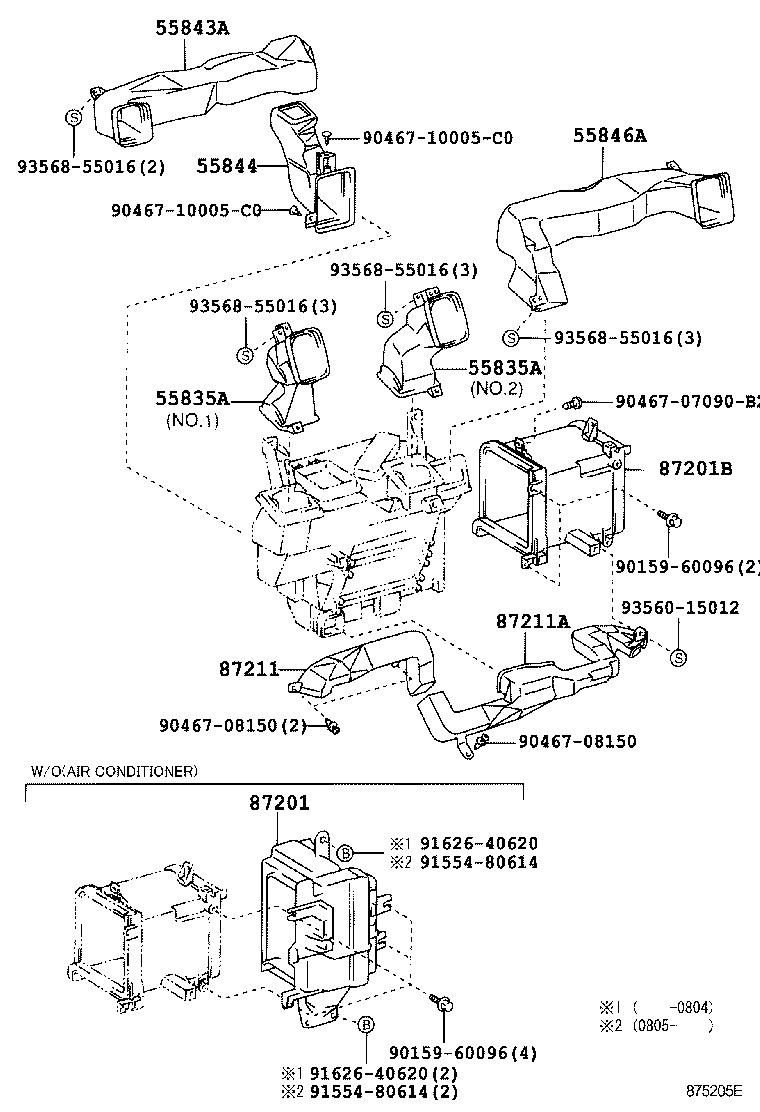

ILLUST NO. 2 OF 2(0110- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55835A 55835A 55843A 55844 55846A 87201 87201B 87211 87211A 9015960096 9015960096 9046707090B2 9046708150 9046708150 9046710005C0 9046710005C0 9155480614 9155480614 9162640620 9162640620 9356015012 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
87211A - DUCT, AIR, NO.2
87213-37030

WU41#,422,XZU413,415,417,423,425,427,435..LHD..(DCRTJ,DCRTK,DSL)

 1
Common parts
90159-60096
90467-07090B2
90467-08150
90467-10005C0
91554-80614
91626-40620
93560-15012
93568-55016
