Toyota Dyna XZU413 FUEL TANK & TUBE

XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011

Engine N04C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7708- )BU20,25,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-60038
90461-08422
90461-10874
91611-40820
94110-40800
96132-30800

ILLUST NO. 1 OF 3(0010- )

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty	Price
Common parts
90179-10015
90467-13007
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-30600

ILLUST NO. 3 OF 3(0010- )

Click highlighted areas on diagram

FUEL CLAMP

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90179-08144
90179-08249
91611-60818
91641-80825
91641-80830
91642-81025
91642-81030

ILLUST NO. 1 OF 3(0010- )

Click highlighted areas on diagram

FUEL TANK,AUSTRALIA SPEC

Part #	Description	Period	Qty	Price
Common parts
90179-10015
91626-40616
91645-C1032
93319-A4010
94130-00802

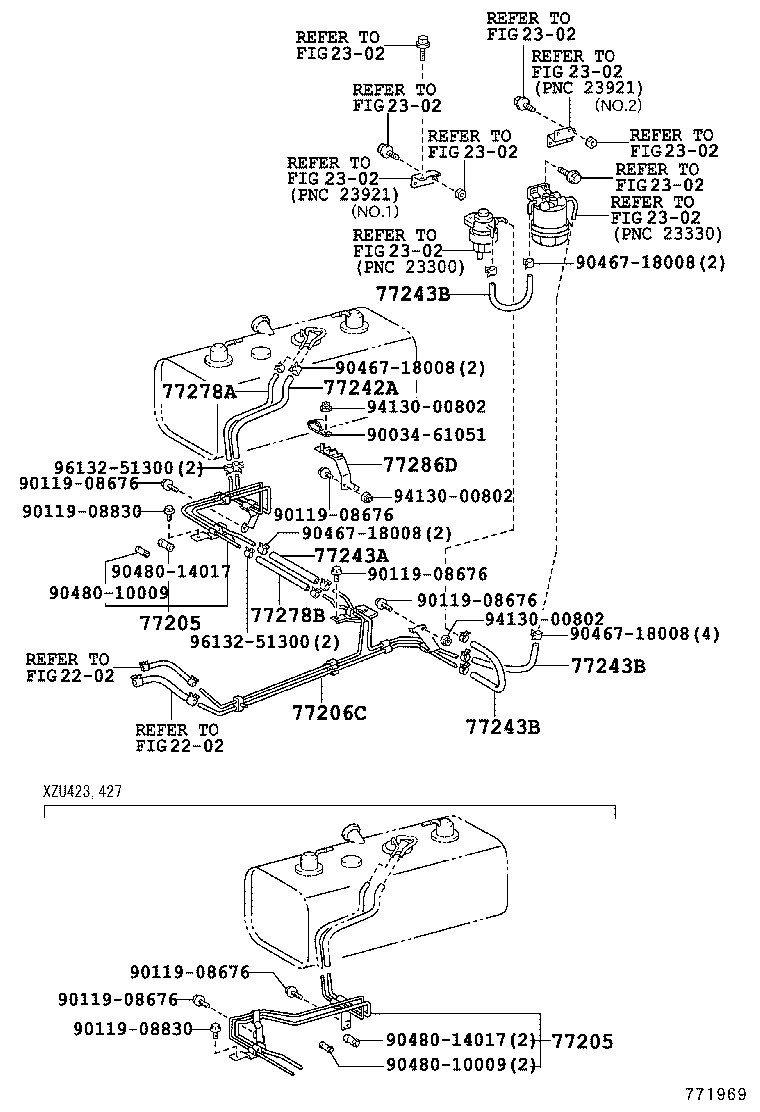

ILLUST NO. 2 OF 2(0610- )XZU413,417,423,427

Click highlighted areas on diagram

TUBE

Part #	Description	Period	Qty
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37C50	XZU413,415,417,423,425,427,433,435..DCRTK	10/2006 - 06/2011	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-37290	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	1
Common parts
90034-61051
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0903- )XZU413,423..5F..75T

Click highlighted areas on diagram

TANK(100L) COLOMBIA OR VENEZUELA

Part #	Description	Period	Qty
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050	XZU413,423..5F..75T	03/2009 - 06/2011	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU413,423..5F..75T *H,L=280,ID=7.6	03/2009 - 06/2011	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU413,423..5F..75T *H,L=280,ID=7.6	03/2009 - 06/2011	2
77100 - TANK ASSY, FUEL
77001-37220	WU410,XZU404,41#,42#..GCC,GEN	10/2001 - 01/2003	1
77001-37500	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433	10/2006 - 06/2011	1
77001-37222	XZU413,423..5F..75T COLOMBIA SPEC OR VENEZUELA SPEC	03/2009 - 06/2011	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	2
77100B - GASKET(FOR FUEL TANK)
90430-12245	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	2
77197 - ORIFICE, FUEL VAPOR
90977-02001	XZU413,423..5F..75T	03/2009 - 06/2011	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77601-37030	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77601-37030	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77616C - SEAT, FUEL TANK BAND
77616-36030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77616C - SEAT, FUEL TANK BAND
77616-36030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77633 - STAY, FUEL TANK
77633-37100	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77633-37100	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77633 - STAY, FUEL TANK
77633-37100	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77633-37100	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040	XZU413,423..5F..75T *H,L=400	03/2009 - 06/2011	1
Common parts
90179-10015
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 1 OF 2(0903- )XZU413,423..5F..75T

Click highlighted areas on diagram

SUB TANK(70L) COLOMBIA OR VENEZUELA

Part #	Description	Period	Qty
77018H - VALVE SUB-ASSY, FUEL VAPOR SEPARATE
77018-37061	XZU413,423..5F..75T	03/2009 - 06/2011	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU413,423..5F..75T	03/2009 - 06/2011	2
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030	XZU413,423..5F..75T	03/2009 - 06/2011	2
77031 - CAP ASSY, FUEL TANK
77310-60100	WU41#,422,XZU413,423..GCC,GEN	10/2006 - 06/2011	1
77310-60100	WU41#,422,XZU413,423..GCC,GEN W(SUB TANK)	10/2006 - 06/2011	2
77100A - PLUG(FOR FUEL TANK)
90105-12116	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	2
77100B - GASKET(FOR FUEL TANK)
90430-12245	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	2
77100V - HOSE, FUEL
95332-10014	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	2
77100V - HOSE, FUEL
95332-10014	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	2
77100Z - TANK SUB-ASSY, FUEL SUB
77001-37510	WU41#,422,XZU413,423,427..GCC,GEN,TAIW 690X310X385	10/2006 - 06/2011	1
77001-37232	XZU413,423..5F..75T 690X310X385,COLOMBIA SPEC OR VENEZUELA SPEC	03/2009 - 06/2011	1
77197C - ORIFICE
90977-02001	XZU413,423..5F..75T	03/2009 - 06/2011	1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37130	WU41#,XZU413..GCC,GEN	10/2006 - 06/2011	1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77502-37080	WU41#,XZU413..GCC,GEN	10/2006 - 06/2011	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77601-37030	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77616C - SEAT, FUEL TANK BAND
77616-36030	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77633 - STAY, FUEL TANK
77633-37100	WU41#,422,XZU413,423,427..GCC,GEN,TAIW W(SUB TANK)	10/2006 - 06/2011	4
77633-37100	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	2
77701V - VALVE, CHECK (FOR SUB-FUEL TANK)
95333-06060	XZU413,423..5F..75T	03/2009 - 06/2011	1
77710 - COCK ASSY, FUEL CHANGE
77710-37051	WU41#,XZU413..GCC,GEN	10/2006 - 06/2011	1
77712 - VALVE, FUEL CHANGE COCK
77712-36011	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
77713 - LEVER, FUEL CHANGE COCK
77713-36010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
77714 - CAP, FUEL CHANGE COCK
77714-36010	WU41#,422,XZU413,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
Common parts
90179-08233
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91112-81025
91626-40616
91641-80830
91645-C1032
93319-15010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011
