XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 67001 67002 67027 67027A 67111 67112 67401 67402 67407 67408 67439 67601 67601 67602 67602 6777120022 6777120022 6777222010 67777 67778 67831 67832 67861 67862 67867 68101 68101 68102 68102 68141 68141 68161 68161 68170 68170 9011906060 9016840025 9095006001 9152140610 9166140614 9166140614 9351016020
Part # Description Qty Price
Common parts
67771-20022
67772-22010
90119-06060
90168-40025
90950-06001
91521-40610
91661-40614
93510-16020

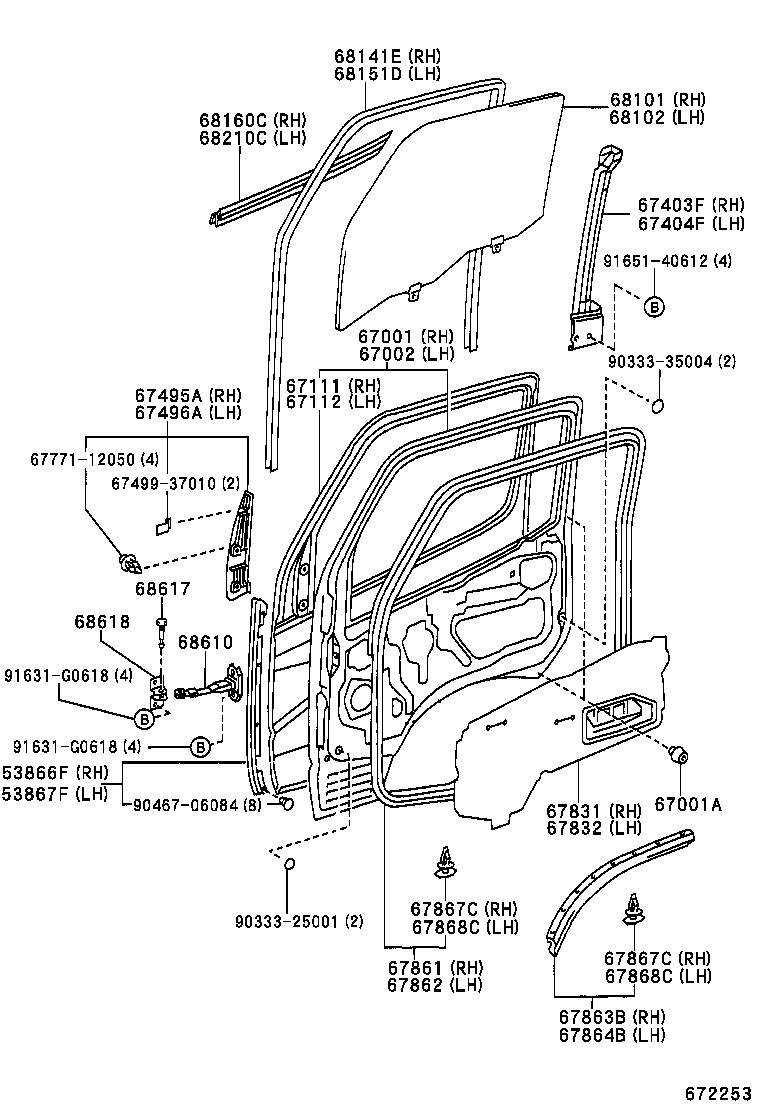

ILLUST NO. 2 OF 3(0010- )

Click highlighted areas on diagram

diagram 53866F 53867F 67001 67001A 67002 67111 67112 67403F 67404F 67495A 67496A 6749937010 6777112050 67831 67832 67861 67862 67863B 67864B 67867C 67867C 67868C 67868C 68101 68102 68141E 68151D 68160C 68210C 68610 68617 68618 9033325001 9033335004 9046706084 91631G0618 91631G0618 9165140612
Part # Description Qty Price
Common parts
67499-37010
67771-12050
90333-25001
90333-35004
90467-06084
91631-G0618
91651-40612

ILLUST NO. 3 OF 3(0010- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

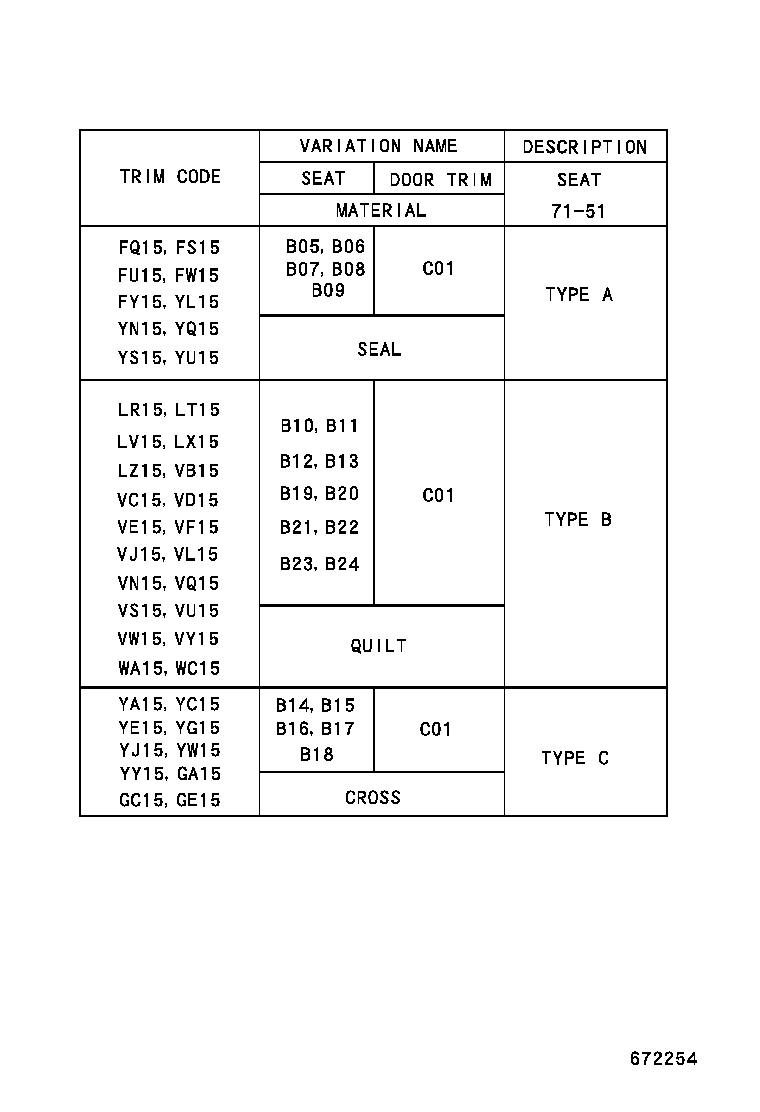

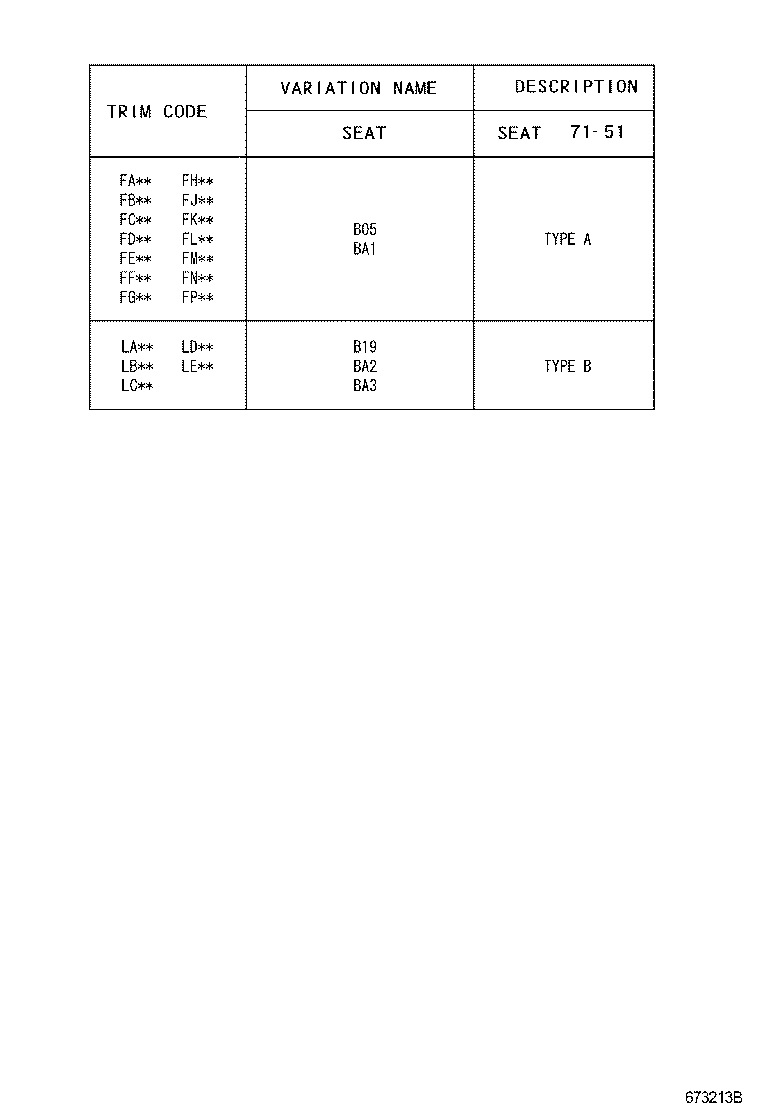

TRIM CODE TABLE

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 3(0110- )

Click highlighted areas on diagram

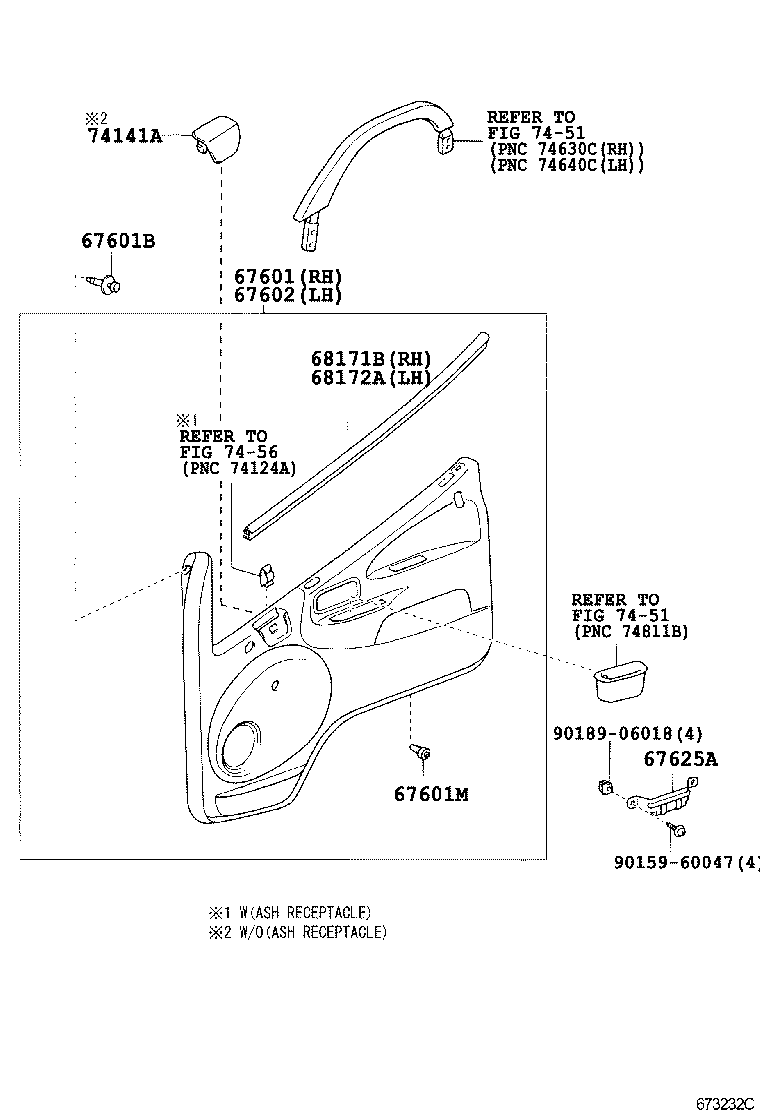

DOOR TRIM

diagram 67601 67601B 67601M 67602 67625A 68171B 68172A 74141A 7451 7451 7456 9015960047 9018906018
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37080B5

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#

 1
67610-37120B0

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

W/O(POWER WINDOW) & W/O(ASH RECEPTACLE),MD.CHARCOAL,TRIM1#

 1
67601M - RETAINER, DOOR TRIM, NO.2
67771-12050

WU410,420,XZU404,41#,42#,43#

 16
90467-10188

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-37170B0

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

W/O(POWER WINDOW) & W/O(ASH RECEPTACLE),MD. CHARCOAL,TRIM1#

 1
67620-37130B5

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-37010

WU410,420,XZU404,41#,42#,43#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37010

WU410,420,XZU404,41#,42#,43#

 1
74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1
74141-25010B0

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

MD.CHARCOAL,TRIM1#

 2
Common parts
90159-60047
90189-06018
Linked diagrams
7451
7456

ILLUST NO. 1 OF 3(0110- )

Click highlighted areas on diagram

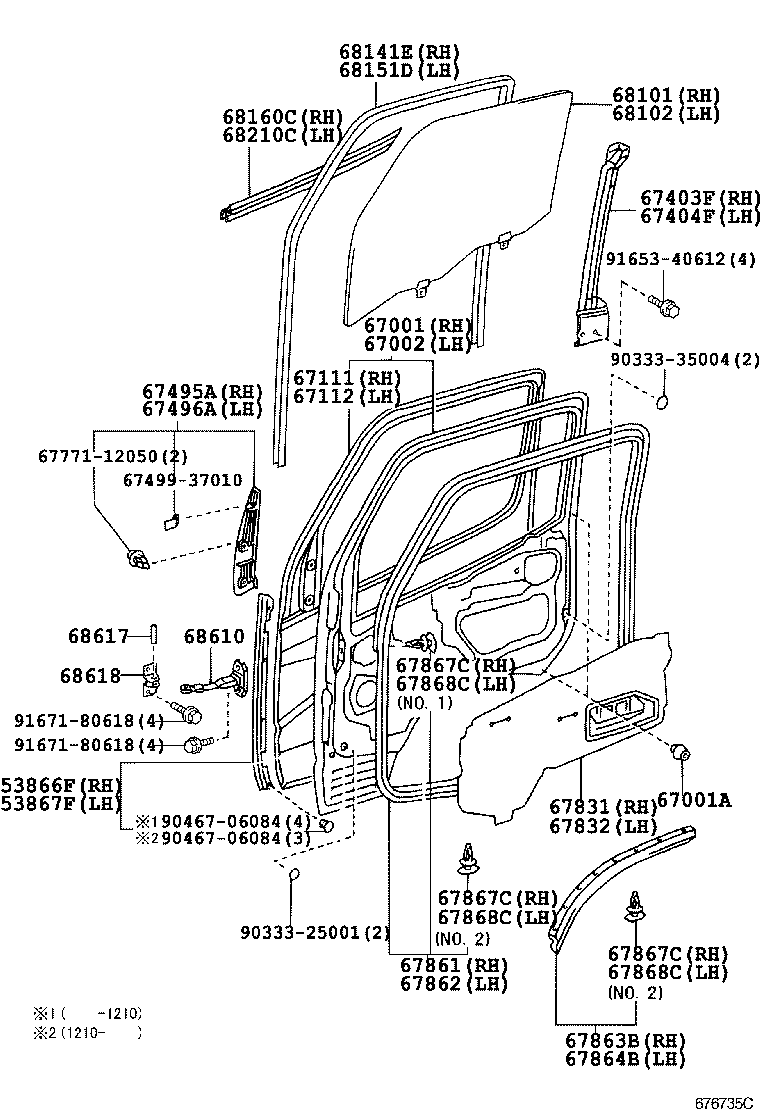

DOOR PANEL

diagram 53866F 53867F 67001 67001A 67002 67111 67112 67403F 67404F 67495A 67496A 6749937010 6777112050 67831 67832 67861 67862 67863B 67864B 67867C 67867C 67867C 67868C 67868C 67868C 68101 68102 68141E 68151D 68160C 68210C 68610 68617 68618 9033325001 9033335004 9046706084 9046706084 9165340612 9167180618 9167180618
Part # Description Qty Price
53866F - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-37040

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL

 1
53867F - SEAL, FR FENDER TO COWL SIDE, LH
53867-37030

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-37291

WU41#,422,XZU413,423..GEN

 1
67001-37290

WU41#,422,XZU413,423..GEN

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-37320

WU41#,422,XZU413,423..GEN

 1
67002-37321

WU41#,422,XZU413,423..GEN

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-37061

WU41#,422,XZU413,423..GEN

 1
67111-37062

WU41#,422,XZU413,423..GEN

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-37072

WU41#,422,XZU413,423..GEN

 1
67112-37071

WU41#,422,XZU413,423..GEN

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-37010

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 1
67831-37040

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-37010

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-37020

WU410,420,XZU404,41#,42#,43#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-37020

WU410,420,XZU404,41#,42#,43#

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-37010

WU41#,422,XZU413,423..GCC,GEN

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-37010

WU41#,422,XZU413,423..GCC,GEN

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-37010

WU410,420,XZU404,41#,42#,43#

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-37010

WU410,420,XZU404,41#,42#,43#

 1
Common parts
67499-37010
67771-12050
90333-25001
90333-35004
90467-06084
91653-40612
91671-80618
