XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 51100 51100F 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price

(7708- )

Click highlighted areas on diagram

diagram 1702 51017 51018 51209A 51401 51402 51721 51722 51731 51732 51733 51734 51741A 51741A 5174336011 5175136020 5176936040 51881 51881 51882 51883 51943A 51947B 51947B 9010110096 9020110489 9020110489 9020112002 9111271030 9116171230 9411051000 9411551200 9418401000
Part # Description Qty Price
Common parts
51743-36011
51751-36020
51769-36040
90101-10096
90201-10489
90201-12002
91112-71030
91161-71230
94110-51000
94115-51200
94184-01000
Linked diagrams
1702

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 51100F 51561D 51568 51568B 51568C 51569 51569C 9011908908
Part # Description Qty Price
Common parts
90119-08908

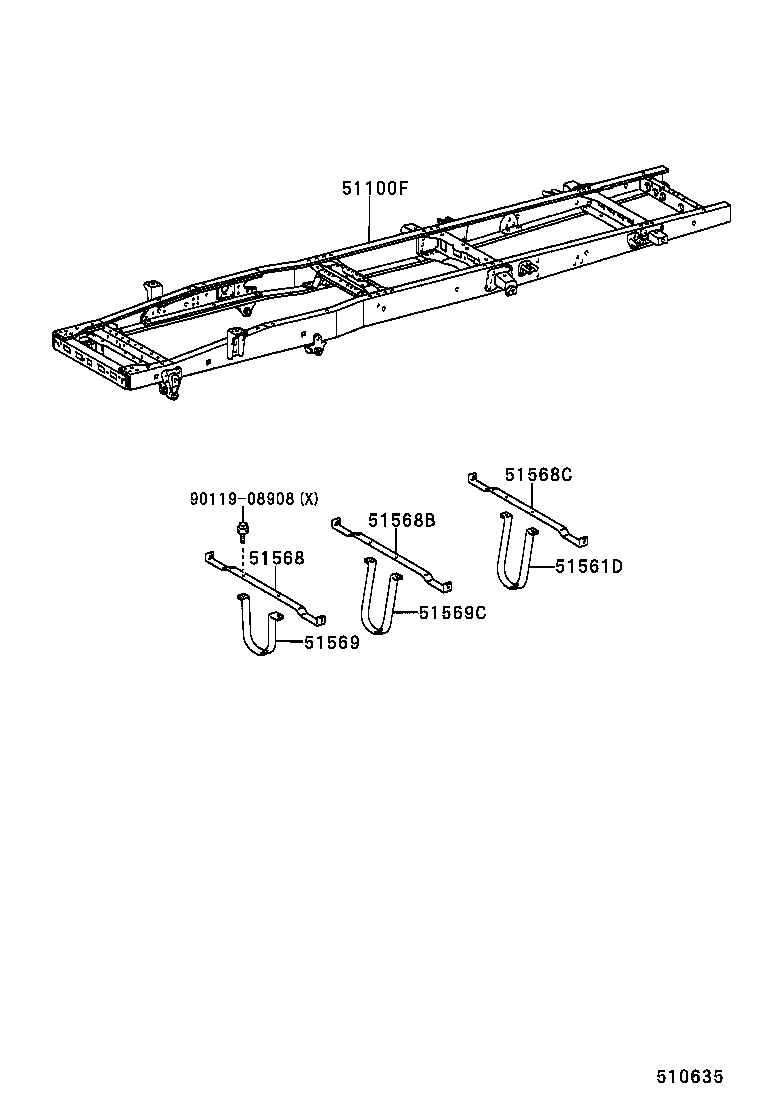

ILLUST NO. 2 OF 2(0110- )WU41#,42#,XZU412,413,414,415,419,420,422,423,424,425,429

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48414C 48415C 48416B 48417D 48418B 48419A 48512B 48513A 51017 51018 51131 51132 51155 51155B 51155C 51155D 51156 51203 51204 51205 51207B 51209C 51211A 51241 51261 9003101175 9003260013 9003260013 9003260013 9010514030 9017914039 9026011001 9026011001 9111281035 9111281035 9164281235 9164281235 9413001202 9413001202 9413001401 9415011400 9415081001 9415081001 9462241400 9462241400 9512101024 9512101024 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101026 9512101028 9512101028 9512101032 9512101032 9512101038 9512101038
Part # Description Qty Price
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37350

WU410..65T;WU410..75T..GEN;WU412..GCC..CBU;WU412,42#,XZU413,417,423,427,433..GEN,SA,TAIW

 1
51203-37351

WU41#,422,XZU413,423

 1
Common parts
90031-01175
90032-60013
90105-14030
90179-14039
90260-11001
91112-81035
91642-81235
94130-01202
94130-01401
94150-11400
94150-81001
94622-41400
95121-01024
95121-01026
95121-01028
95121-01032
95121-01038

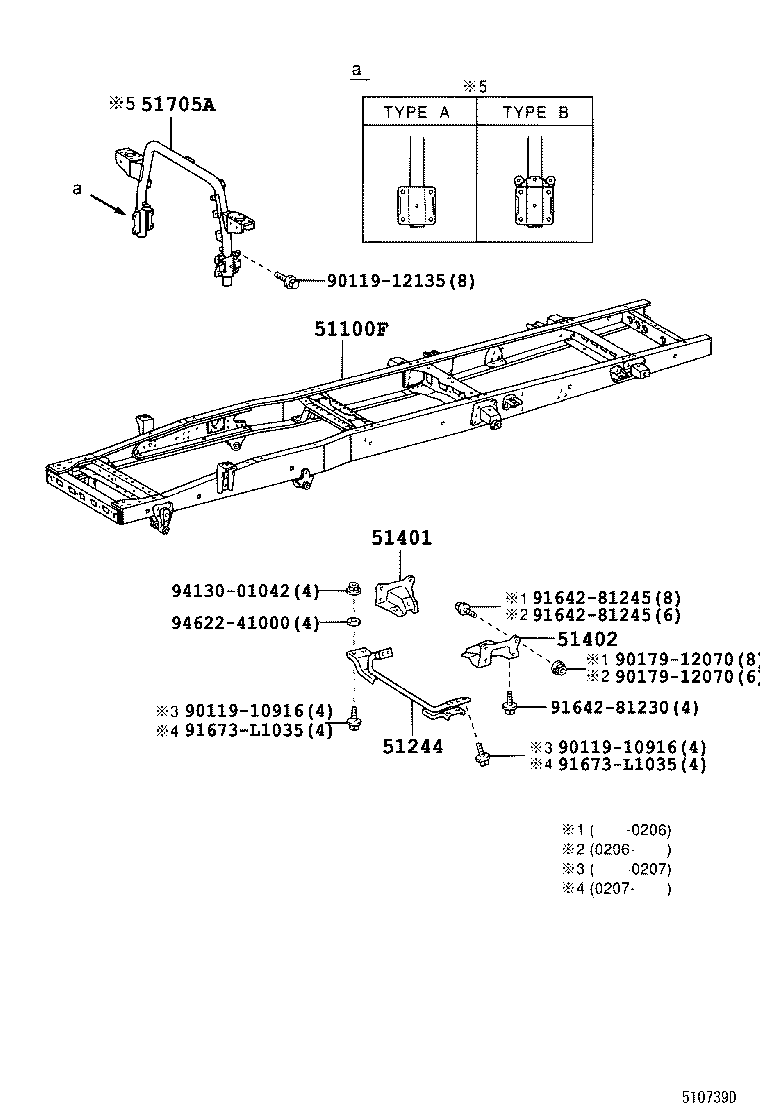

ILLUST NO. 1 OF 2(0110- )

Click highlighted areas on diagram

diagram 51100F 51244 51401 51402 51705A 9011910916 9011910916 9011912135 9017912070 9017912070 9164281230 9164281245 9164281245 91673L1035 91673L1035 9413001042 9462241000
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51003-3V012

WU41#,XZU413..LHD..(65T,75T,85T)

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37570

XZU413,417,423,427,433

TYPE A:REFER TO ILLUSTRATION

 1
51705-37573

XZU413,423

DISCRIMINATION COLOR = RED(1 POINT)

 1
Common parts
90119-10916
90119-12135
90179-12070
91642-81230
91642-81245
91673-L1035
94130-01042
94622-41000
