XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU2#,3#,40,HU30,40,50,JU20,WU40,50

Click highlighted areas on diagram

diagram 44704 44704 44730 44730 44730A 44730A 44738 44738 44743 44743 44754 44754 44764 44764 44764A 44764A 44764F 44765 44765 44765B 44773 44773 44774 44774 9011908126 9011908126 9011908126 9011908126 9011908126 9011908126 9046108050 9046110376 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90119-08126
90461-08050
90461-10376
90467-16141
91611-40610
91611-40820
91651-40816
94110-40800

(7708- )BU2#,3#,HU30,JU20,RU2#,30

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44662E 44662F 44662G 44669 44696 44697 44697A 44730 44758 4702 9017908146 9331914008 9411070600 9412041000
Part # Description Qty Price
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 44610 44621V 44730 44730B 44730J 44734B 44763B 44764A 44768 44772 44772 44772B 44775E 44776 44776A 44778D 44799 9011908676 9011908676 9017908038 9046108642 9046400549 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716013 9046716013 9046716013 9048022022 9161160816 9161160816 9413000802 9413000802 9613240700 9613240700 9613240700 9613240700 9613451500 9613451500
Part # Description Qty Price
Common parts
90119-08676
90179-08038
90461-08642
90464-00549
90467-16002
90467-16013
90480-22022
91611-60816
94130-00802
96132-40700
96134-51500

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

diagram 27690K 3602 3602 3602 3602 3602 44704 44730P 44756 44756 44757B 44771K 44773L 44774 44778 44778E 44781 44912G 44912G 8401 9011908676 9011908676 9011908676 9046108385 9164580822 9164580822 9413000802 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500 9613451500
Part # Description Qty Price
Common parts
90119-08676
90461-08385
91645-80822
94130-00802
96134-51500
Linked diagrams
3602
8401

ILLUST NO. 1 OF 2(0610- )WU41#,422,XZU413,423..LHD

Click highlighted areas on diagram

diagram 44610 44621V 44730B 44754B 44764 44768 44771D 44772 4702 47264D 4737137040 4737137040 4737137040 4737137040 4737137040 4737137040 4737137040 9011908676 9017908038 9017910065 9046615003 9046615003 9048022022 91611B0816 9413000802 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37171

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
44621V - SEAL, BOOSTER BODY
44621-36050

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
44730B - CLAMP, VACUUM HOSE
44597-37020

BU410,420,WU410,420,XZU404,41#,42#,43#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37100

WU41#,422,XZU413,423..LHD

 1
Common parts
47371-37040
90119-08676
90179-08038
90179-10065
90466-15003
90480-22022
91611-B0816
94130-00802
96133-41500
Linked diagrams
4702

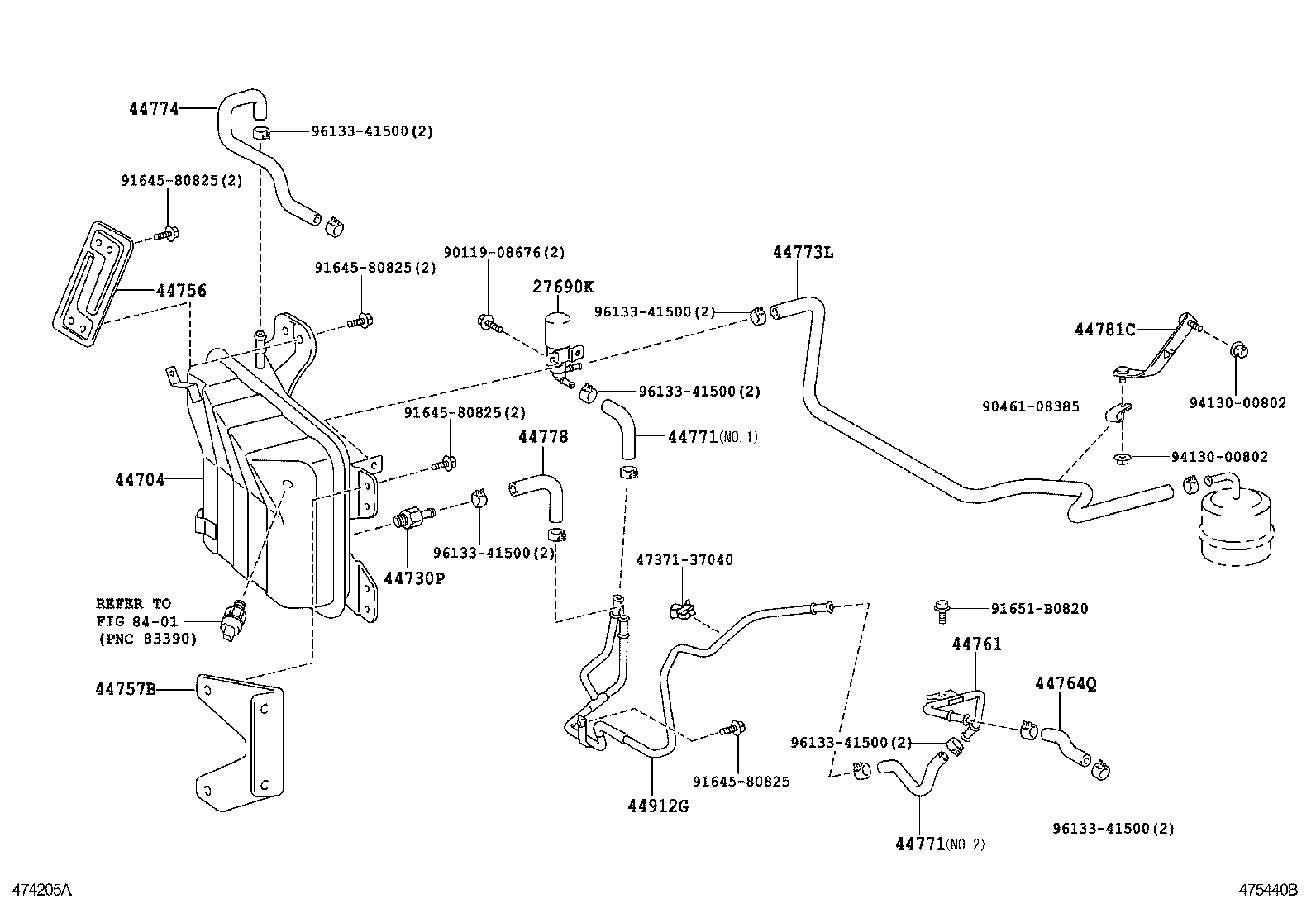

ILLUST NO. 2 OF 2(0610- )DCRTK

Click highlighted areas on diagram

diagram 27690K 44704 44730P 44756 44757B 44761 44764Q 44771 44771 44773L 44774 44778 44781C 44912G 4737137040 8401 9011908676 9046108385 9164580825 9164580825 9164580825 9164580825 91651B0820 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37240

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL

 1
44704-37070

BU410,420,WU410,420,XZU404,41#,42#,43#

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37090

WU410,420,XZU404,41#,42#,43#

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37270

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

WU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN

 1
Common parts
47371-37040
90119-08676
90461-08385
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
8401

ILLUST NO. 2 OF 2(0610- )XZU413,423..5F

Click highlighted areas on diagram

W(PTO)

diagram 27679D 27690K 3602 44702 44702 44704 44730P 44756 44757B 44761 44764Q 44771 44771 44773L 44774 44778 44778 44778E 44781C 4737137040 8401 9011908676 9046108385 9164580825 9164580825 9164580825 9164580825 9164580825 9164580825 9164580825 91651B0820 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78260

N04C..XZU413,423..5F

 1
44702 - TUBE SUB-ASSY, AIR, NO.1
44702-37220

XZU413,423..5F

NO.1

 1
44702-37240

XZU413,423..5F

NO.2

 1
44702 - TUBE SUB-ASSY, AIR, NO.1
44702-37220

XZU413,423..5F

NO.1

 1
44702-37240

XZU413,423..5F

NO.2

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37240

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL

 1
44704-37070

BU410,420,WU410,420,XZU404,41#,42#,43#

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37090

WU410,420,XZU404,41#,42#,43#

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37270

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

WU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
95446-09120

XZU413,423..5F

 1
Common parts
47371-37040
90119-08676
90461-08385
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
3602
8401
