XZU413L-TKMRD3 (2006)
Toyota Dyna

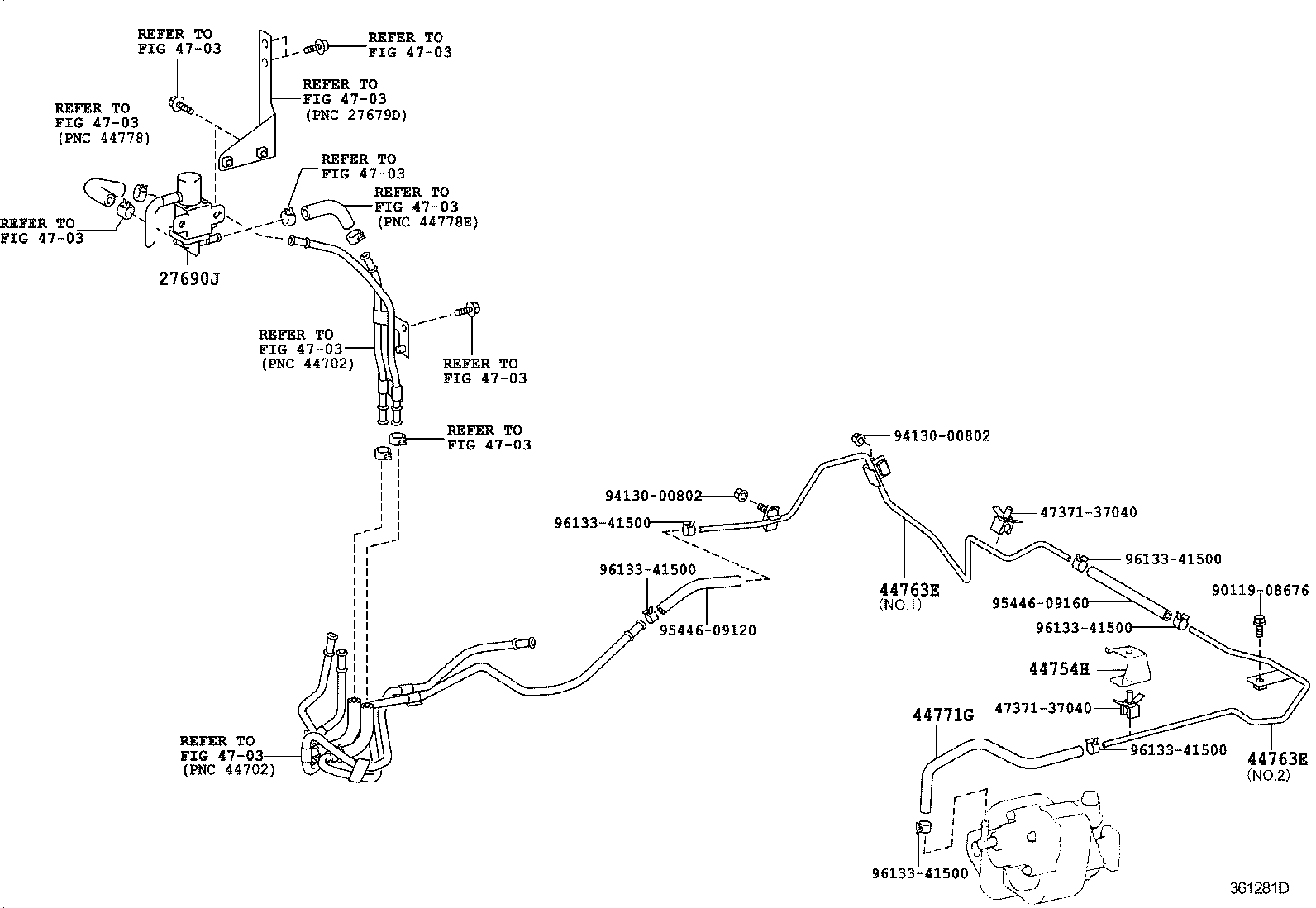

ILLUST NO. 2 OF 2(0010- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 1 OF 2(0010- )XZU41#,420,430..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 1 OF 2(0610- )WU412,422,XZU413,423..5F
VACUUM TYPE 25 KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 35775-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-37010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36421-93100 |
WU41#,422,XZU413,423..5F..(GCC,GEN) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.2 |
1 | ||
| 36422-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.1 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.2 |
1 | ||
| 36422-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.1 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37331 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37330 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37281 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| 36610-37280 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
WU412,422,XZU413,423..5F T=0.5 |
1 | ||
| 90430-18008 |
WU412,422,XZU413,423..5F T=2,VACUUM TYPE 25KG |
1 | ||
| 90430-12006 |
WU412,422,XZU413,423..5F T=1 |
1 | ||
| 90430-12004 |
WU412,422,XZU413,423..5F T=2,MANUAL LEVER TYPE 25KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37071 |
WU412,422,XZU413,423..5F |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93101 |
WU410,XZU404,41#,42#,434..ARL,GCC,GEN |
1 | ||
| 36632-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37090 |
XZU404,41#,422,424..5F |
1 | ||
| 36714-37171 |
WU412,422,XZU413,423..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37110 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37100 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723-37101 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=16.25 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU412,422,XZU413,423..5F |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU412,422,XZU413,423..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.5 |
1 | ||
| 90564-25002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.1 |
1 | ||
| 90564-25001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.05 |
1 | ||
| 90564-25003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.2 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.02-0.08 |
1 | ||
| 90564-42004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.47-0.53 |
1 | ||
| 90564-42003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.17-0.23 |
1 | ||
| 90564-42002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.07-0.13 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37060 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36814-37030 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| Common parts | ||||
| 84210-12040 | ||||
| 90031-19132 | ||||
| 90031-70107 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
(0610- )WU412,422,XZU413,423..5F
MANUAL LEVER TYPE 25 KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 35775-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37331 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37330 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37281 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| 36610-37280 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90031-01180 |
WU412,422,XZU413,423..5F |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
WU412,422,XZU413,423..5F T=0.5 |
1 | ||
| 90430-18008 |
WU412,422,XZU413,423..5F T=2,VACUUM TYPE 25KG |
1 | ||
| 90430-12006 |
WU412,422,XZU413,423..5F T=1 |
1 | ||
| 90430-12004 |
WU412,422,XZU413,423..5F T=2,MANUAL LEVER TYPE 25KG |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
WU412,422,XZU413,423..5F |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
WU412,422,XZU413,423..5F |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
WU412,422,XZU413,423..5F |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37071 |
WU412,422,XZU413,423..5F |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93101 |
WU410,XZU404,41#,42#,434..ARL,GCC,GEN |
1 | ||
| 36632-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36645 - SPACER, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36645-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37090 |
XZU404,41#,422,424..5F |
1 | ||
| 36714-37171 |
WU412,422,XZU413,423..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37110 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37100 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723-37101 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
WU412,422,XZU413,423..5F |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=16.25 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU412,422,XZU413,423..5F |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU412,422,XZU413,423..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.5 |
1 | ||
| 90564-25002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.1 |
1 | ||
| 90564-25001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.05 |
1 | ||
| 90564-25003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.2 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.02-0.08 |
1 | ||
| 90564-42004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.47-0.53 |
1 | ||
| 90564-42003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.17-0.23 |
1 | ||
| 90564-42002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.07-0.13 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37060 |
WU412,422,XZU413,423..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36814-37030 |
WU412,422,XZU413,423..5F VACUUM TYPE 25KG |
1 | ||
| Common parts | ||||
| 90031-19132 | ||||
| 90033-87011 | ||||
| 90119-10372 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
ILLUST NO. 2 OF 2(0610- )XZU413,423..5F
VACUUM TYPE 25 KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78080 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423..5F |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37890 |
XZU413,423..5F NO.2 |
1 | ||
| 44763-37631 |
XZU413,423..5F NO.1 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37890 |
XZU413,423..5F NO.2 |
1 | ||
| 44763-37631 |
XZU413,423..5F NO.1 |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37770 |
WU412,422,XZU413,423..5F |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 95446-09120 | ||||
| 95446-09160 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
