XZU413L-TKMRD3 (2006)
Toyota Dyna
(7708- )5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-40818 | ||||
(0010- )XZU41#,420,430..MTM
H260
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4601 | ||||

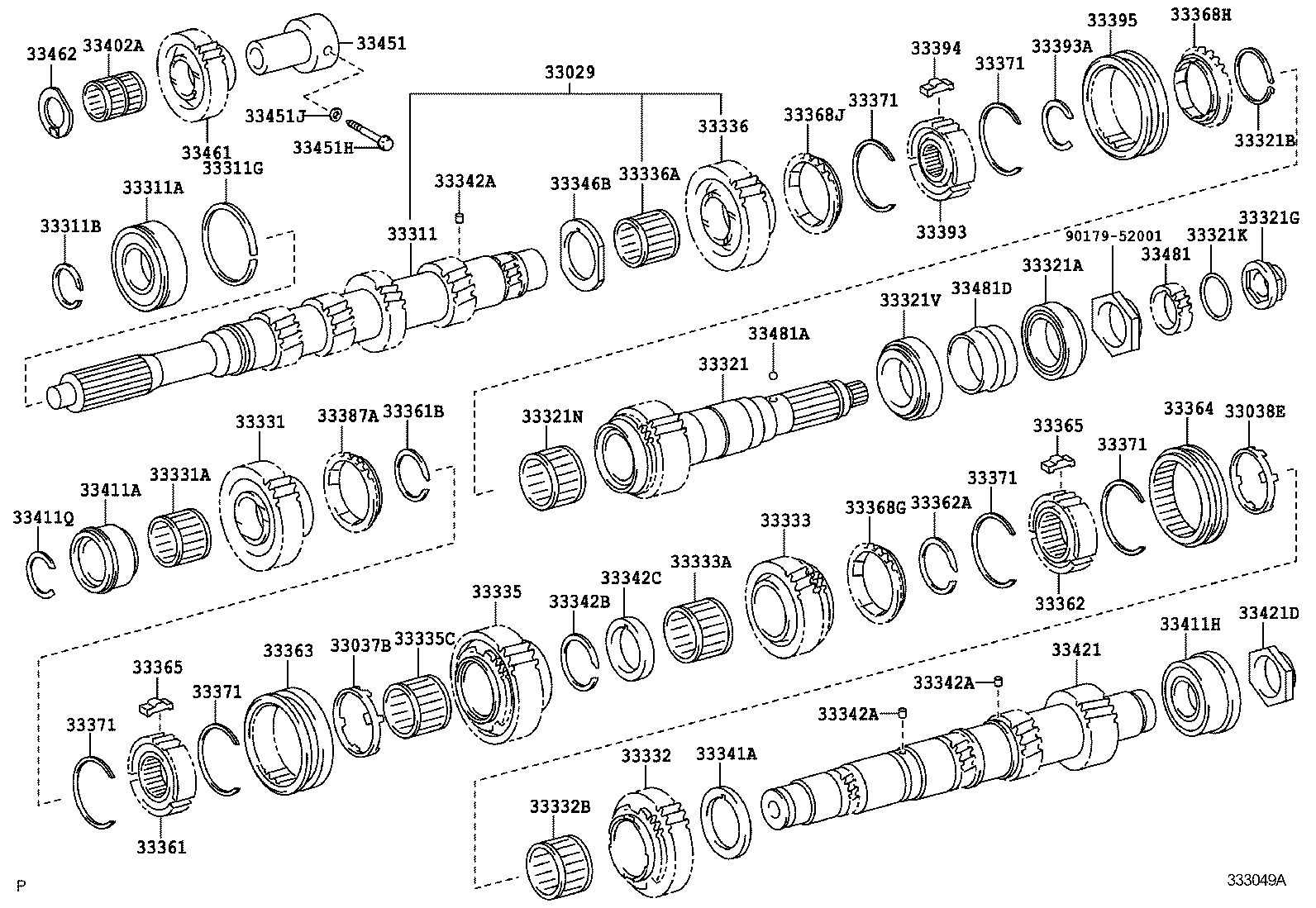

(0610- )WU412,422,XZU413,423..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33029 - SHAFT SET, INPUT | ||||
| 33029-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33029-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-37050 |
WU412,422,XZU413,423..5F |
1 | ||
| 33037-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33037-37021 |
XZU404,41#,42#..5F |
1 | ||
| 33038-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33038-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33038-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-37270 |
WU412,422,XZU413,423..5F |
1 | ||
| 33311-37290 |
WU412,422,XZU413,423..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-47001 |
WU412,422,XZU413,423..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42023 |
WU412,422,XZU413,423..5F T=3.05-3.10,MARK B |
1 | ||
| 90520-42024 |
WU412,422,XZU413,423..5F T=3.10-3.15,MARK C |
1 | ||
| 90520-42022 |
WU412,422,XZU413,423..5F T=3.00-3.05,MARK A |
1 | ||
| 90520-42025 |
WU412,422,XZU413,423..5F T=3.15-3.20,MARK D |
1 | ||
| 90520-42026 |
WU412,422,XZU413,423..5F T=3.20-3.25,MARK E |
1 | ||
| 90520-42027 |
WU412,422,XZU413,423..5F T=3.25-3.30,MARK F |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99009 |
WU412,422,XZU413,423..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-37021 |
WU412,422,XZU413,423..5F |
1 | ||
| 33302-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-55057 |
WU412,422,XZU413,423..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90521-58001 |
WU412,422,XZU413,423..5F T=1.73-1.87 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24008 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90364-38021 |
WU412,422,XZU413,423..5F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90366-55060 |
WU412,422,XZU413,423..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33425-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33425-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-43009 |
WU412,422,XZU413,423..5F |
1 | ||
| 90364-43010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33424-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33424-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33424-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54009 |
WU412,422,XZU413,423..5F |
1 | ||
| 90364-54010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33044-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33044-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-54011 |
WU412,422,XZU413,423..5F |
1 | ||
| 90364-54008 |
WU412,422,XZU413,423..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33426-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33426-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-49002 |
WU412,422,XZU413,423..5F |
1 | ||
| 90364-49004 |
WU412,422,XZU413,423..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-37061 |
WU412,422,XZU413,423..5F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-48007 |
WU412,422,XZU413,423..5F *159 |
1 | ||
| 90364-48004 |
WU412,422,XZU413,423..5F *156 |
1 | ||
| 90364-48011 |
WU412,422,XZU413,423..5F *158 |
1 | ||
| 90364-48005 |
WU412,422,XZU413,423..5F *157 |
1 | ||
| 90364-48003 |
WU412,422,XZU413,423..5F |
1 | ||
| 90364-48003 |
WU412,422,XZU413,423..5F *155 |
1 | ||
| 90364-48010 |
WU412,422,XZU413,423..5F *157 |
1 | ||
| 90364-48008 |
WU412,422,XZU413,423..5F *155 |
1 | ||
| 90364-48009 |
WU412,422,XZU413,423..5F *156 |
1 | ||
| 90364-48006 |
WU412,422,XZU413,423..5F *158 |
1 | ||
| 90364-48012 |
WU412,422,XZU413,423..5F *159 |
1 | ||
| 33341A - WASHER, 2ND GEAR THRUST | ||||
| 33341-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
WU412,422,XZU413,423..5F |
3 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
WU412,422,XZU413,423..5F |
3 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
WU412,422,XZU413,423..5F |
3 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-45024 |
WU412,422,XZU413,423..5F T=2.55-2.60,MARK 4 |
1 | ||
| 90520-45021 |
WU412,422,XZU413,423..5F T=2.40-2.45,MARK 1 |
1 | ||
| 90520-45023 |
WU412,422,XZU413,423..5F T=2.50-2.55,MARK 3 |
1 | ||
| 90520-45022 |
WU412,422,XZU413,423..5F T=2.45-2.50,MARK 2 |
1 | ||
| 90520-45025 |
WU412,422,XZU413,423..5F T=2.60-2.65,MARK 5 |
1 | ||
| 90520-45026 |
WU412,422,XZU413,423..5F T=2.65-2.70,MARK 6 |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33346B - WASHER, 5TH GEAR THRUST | ||||
| 33346-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37060 |
WU412,422,XZU413,423..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-40013 |
WU412,422,XZU413,423..5F T=2.40-2.45,MARK A |
1 | ||
| 90520-40014 |
WU412,422,XZU413,423..5F T=2.45-2.50,MARK B |
1 | ||
| 90520-40015 |
WU412,422,XZU413,423..5F T=2.50-2.55,MARK C |
1 | ||
| 90520-40016 |
WU412,422,XZU413,423..5F T=2.55-2.60,MARK D |
1 | ||
| 90520-40017 |
WU412,422,XZU413,423..5F T=2.60-2.65,MARK E |
1 | ||
| 90520-40018 |
WU412,422,XZU413,423..5F T=2.65-2.70,MARK F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-50010 |
WU412,422,XZU413,423..5F T=2.40-2.45,MARK A |
1 | ||
| 90520-50012 |
WU412,422,XZU413,423..5F T=2.50-2.55,MARK C |
1 | ||
| 90520-50014 |
WU412,422,XZU413,423..5F T=2.60-2.65,MARK E |
1 | ||
| 90520-50011 |
WU412,422,XZU413,423..5F T=2.45-2.50,MARK B |
1 | ||
| 90520-50013 |
WU412,422,XZU413,423..5F T=2.55-2.60,MARK D |
1 | ||
| 90520-50015 |
WU412,422,XZU413,423..5F T=2.65-2.70,MARK F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37060 |
WU412,422,XZU413,423..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37030 |
XZU404,41#,42#..5F |
1 | ||
| 33364-37050 |
WU412,422,XZU413,423..5F |
1 | ||
| 33364-37051 |
WU412,422,XZU413,423..5F |
1 | ||
| 33364-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37050 |
WU412,422,XZU413,423..5F |
6 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37050 |
WU412,422,XZU413,423..5F |
6 | ||
| 33368G - RING, SYNCHRONIZER (FOR 3RD GEAR) | ||||
| 33369-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33369-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33368H - RING, SYNCHRONIZER (FOR 4TH GEAR) | ||||
| 33381-37050 |
WU412,422,XZU413,423..5F |
1 | ||
| 33381-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33368J - RING, SYNCHRONIZER (FOR 5TH GEAR) | ||||
| 33396-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33396-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37040 |
WU412,422,XZU413,423..5F |
6 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37040 |
WU412,422,XZU413,423..5F |
6 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37040 |
WU412,422,XZU413,423..5F |
6 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37040 |
WU412,422,XZU413,423..5F |
6 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37040 |
WU412,422,XZU413,423..5F |
6 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33387-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33393-37050 |
WU412,422,XZU413,423..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-39037 |
WU412,422,XZU413,423..5F T=2.85-2.90,MARK F |
1 | ||
| 90520-39032 |
WU412,422,XZU413,423..5F T=2.60-2.65,MARK A |
1 | ||
| 90520-39036 |
WU412,422,XZU413,423..5F T=2.80-2.85,MARK E |
1 | ||
| 90520-39034 |
WU412,422,XZU413,423..5F T=2.70-2.75,MARK C |
1 | ||
| 90520-39035 |
WU412,422,XZU413,423..5F T=2.75-2.80,MARK D |
1 | ||
| 90520-39033 |
WU412,422,XZU413,423..5F T=2.65-2.70,MARK B |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-37020 |
WU412,422,XZU413,423..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-38006 |
WU412,422,XZU413,423..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-40075 |
WU412,422,XZU413,423..5F |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-34018 |
WU412,422,XZU413,423..5F T=2.40-2.45,MARK A |
1 | ||
| 90520-34021 |
WU412,422,XZU413,423..5F T=2.55-2.60,MARK D |
1 | ||
| 90520-34022 |
WU412,422,XZU413,423..5F T=2.60-2.65,MARK E |
1 | ||
| 90520-34019 |
WU412,422,XZU413,423..5F T=2.45-2.50,MARK B |
1 | ||
| 90520-34020 |
WU412,422,XZU413,423..5F T=2.50-2.55,MARK C |
1 | ||
| 90520-34023 |
WU412,422,XZU413,423..5F T=2.65-2.70,MARK F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37130 |
WU412,422,XZU413,423..5F |
1 | ||
| 33421-37131 |
WU412,422,XZU413,423..5F |
1 | ||
| 33421D - NUT(FOR COUNTER GEAR REAR) | ||||
| 90179-36007 |
WU412,422,XZU413,423..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37030 |
WU412,422,XZU413,423..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-10530 |
WU412,422,XZU413,423..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-10021 |
WU412,422,XZU413,423..5F |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37040 |
WU412,422,XZU413,423..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-37090 |
WU412,422,XZU413,423..5F..(65T,75T) N=6,MARK 6X23-25 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-05012 |
WU412,422,XZU413,423..5F |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 35775-37020 |
WU412,422,XZU413,423..5F |
1 | ||
| Common parts | ||||
| 90179-52001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
