XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 33403 33403 33403A 33403A 33403C 33403C 33404 33404 33404A 33404A 33404A 33404A 33404B 33404C 33404C 33404C 33404E 33404F 33404F 33485 9161140610 9318016012 9451200600
Part # Description Qty Price
Common parts
91611-40610
93180-16012
94512-00600

(0010- )MTM

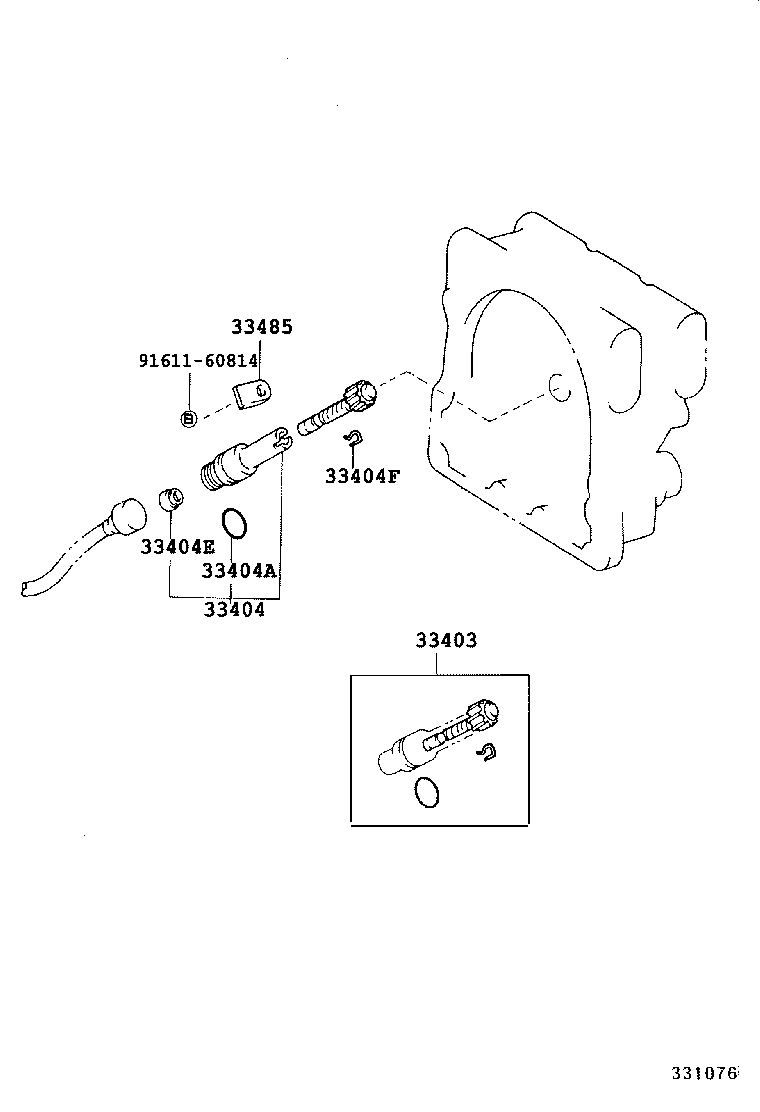

Click highlighted areas on diagram

H260,H350

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39235

WU420..75T;WU41#,422,XZU413,423..5F..(65T,75T)..(GCC,GEN)

N=23,MARK 23:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-36020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
Common parts
91611-60814

(0610- )WU412,422,XZU413,423..5F

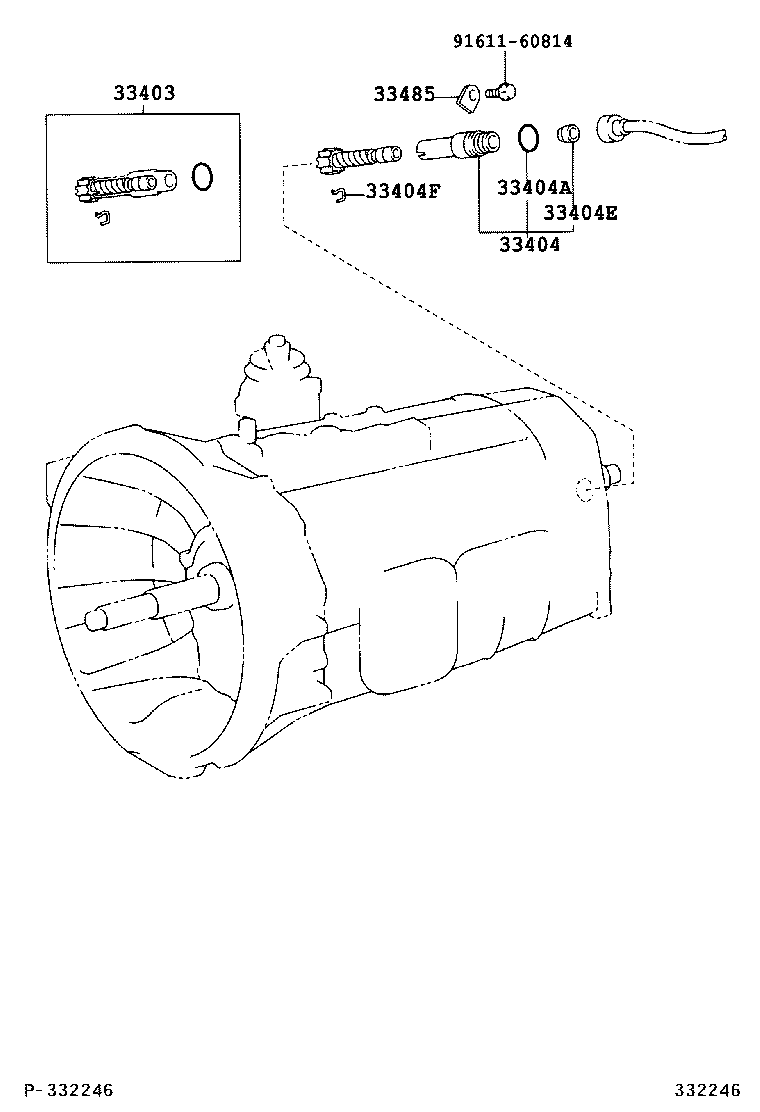

Click highlighted areas on diagram

M550

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39235

WU420..75T;WU41#,422,XZU413,423..5F..(65T,75T)..(GCC,GEN)

N=23,MARK 23:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-36020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
Common parts
91611-60814
