XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

AUSTRALIA SPEC & STACK TAIL PIPE

diagram 1672178010 1672178010 1672178010 17410 17410A 17410B 17420 17430 17430 17505 17509A 17551 17552 17561B 17561B 17567 17567 17567A 17567A 17567B 17567B 17571 17571 17572 17573 17573A 17573B 17575 17575 17576A 17576A 17576A 17578 17578 17578 17578 17578 17578 17578 4711 9003119100 9011908B95 9017910015 9017910015 9017910015 9017910015 9091708011 9162160814 9162160814 9164180825 9164180825 9164180825 9164180825 9164180825 9164180825 9164180825 9164281035 9164281035 9164281035 9164281035 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
Common parts
16721-78010
90031-19100
90119-08B95
90179-10015
90917-08011
91621-60814
91641-80825
91642-81035
94185-60800
94185-61000
Linked diagrams
4711

(0610- )N04C,W04D..WU412,422,XZU413,423,433

Click highlighted areas on diagram

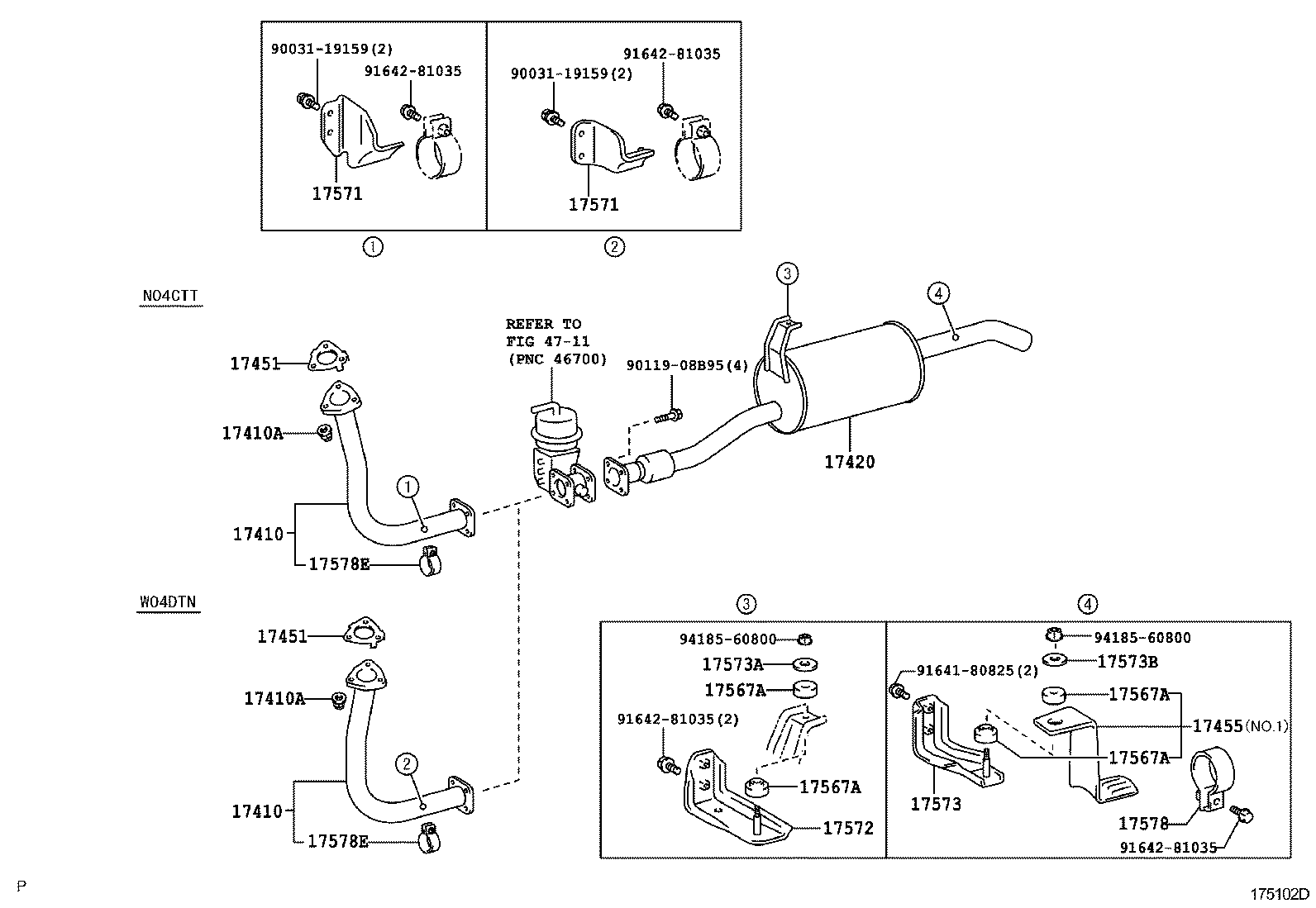

SHORT TAIL PIPE

diagram 17410 17410 17410A 17410A 17420 17451 17451 17455 17567A 17567A 17571 17571 17572 17573 17573A 17573B 17578 17578E 17578E 4711 9003119159 9003119159 9011908B95 9164180825 9164281035 9164281035 9164281035 9164281035 9418560800 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78320

N04C..XZU413,423,433

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78320

N04C..XZU413,423,433

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78840

N04C..XZU413,423..GEN

 1
17403-78860

N04C,W04D..WU412,422,XZU413,423,433

SHORT TAIL PIPE

 1
17455 - BRACKET, EXHAUST PIPE
17455-78070

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

NO.1

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78072

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78082

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17573-78082

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
16721-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
16721-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17578 - CLAMP, PIPE
17578-78030

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17578-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
Common parts
90031-19159
90119-08B95
91641-80825
91642-81035
94185-60800
Linked diagrams
4711

(0610- )N04C..XZU413,423..GEN ; (0801- )W04D..WU41#,422..GCC

Click highlighted areas on diagram

LONG TAIL PIPE

diagram 17410 17410A 17420 17430 17430 17451 17561B 17561C 17561D 17567A 17567A 17567A 17567A 17567A 17567A 17567C 17567C 17569C 17571 17572 17573 17573A 17573B 17574 17575 17576A 17577 17578 17578A 17578A 17578E 4711 9003119159 9011908B95 9017910015 9164180825 9164180825 9164281035 9164281035 9164281035 9164281035 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78320

N04C..XZU413,423,433

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78840

N04C..XZU413,423..GEN

 1
17403-78860

N04C,W04D..WU412,422,XZU413,423,433

SHORT TAIL PIPE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78390

N04C..XZU413

NO.1

 1
17405-78C80

N04C..XZU413,423..GEN

NO.2

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78390

N04C..XZU413

NO.1

 1
17405-78C80

N04C..XZU413,423..GEN

NO.2

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78010

N04C..XZU413,417,423,427..LHD

 2
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-78030

N04C..XZU413,417,423,427..LHD

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78080

N04C..XZU413,417,423,427..LHD

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 4
17567-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 2
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78010

N04C..XZU413,417,423,427..LHD

 2
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78010

N04C..XZU413,417,423,427..LHD

 2
17569C - BOLT, EXHAUST PIPE SUPPORT
17569-78010

N04C..XZU413,417,423,427..LHD

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78072

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78082

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17573-78082

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
16721-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
16721-78010

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78110

N04C..XZU413,417,423,427..LHD

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78120

N04C..XZU413,417,423,427..LHD

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
16721-78010

N04C..XZU413,423..GEN;W04D..WU412..GCC..IV3;N04C,W04D..WU422,XZU417,427..GCC,TAIW

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
16721-78010

N04C..XZU413,417,423,427..LHD

 1
17578 - CLAMP, PIPE
17578-78030

N04C..XZU413,417,423,427..LHD

EXHAUST TAIL PIPE=REAR

 2
17578-78010

W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433

 1
17578A - CLAMP, MUFFLER
17578-78040

N04C..XZU413,417,423,427..LHD

NO.1

 2
17578-78020

N04C..XZU413,417,423,427..LHD

NO.2

 1
17578A - CLAMP, MUFFLER
17578-78040

N04C..XZU413,417,423,427..LHD

NO.1

 2
17578-78020

N04C..XZU413,417,423,427..LHD

NO.2

 1
Common parts
90031-19159
90119-08B95
90179-10015
91641-80825
91642-81035
94185-60800
94185-61000
Linked diagrams
4711
