XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011

Engine N04C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0010- )

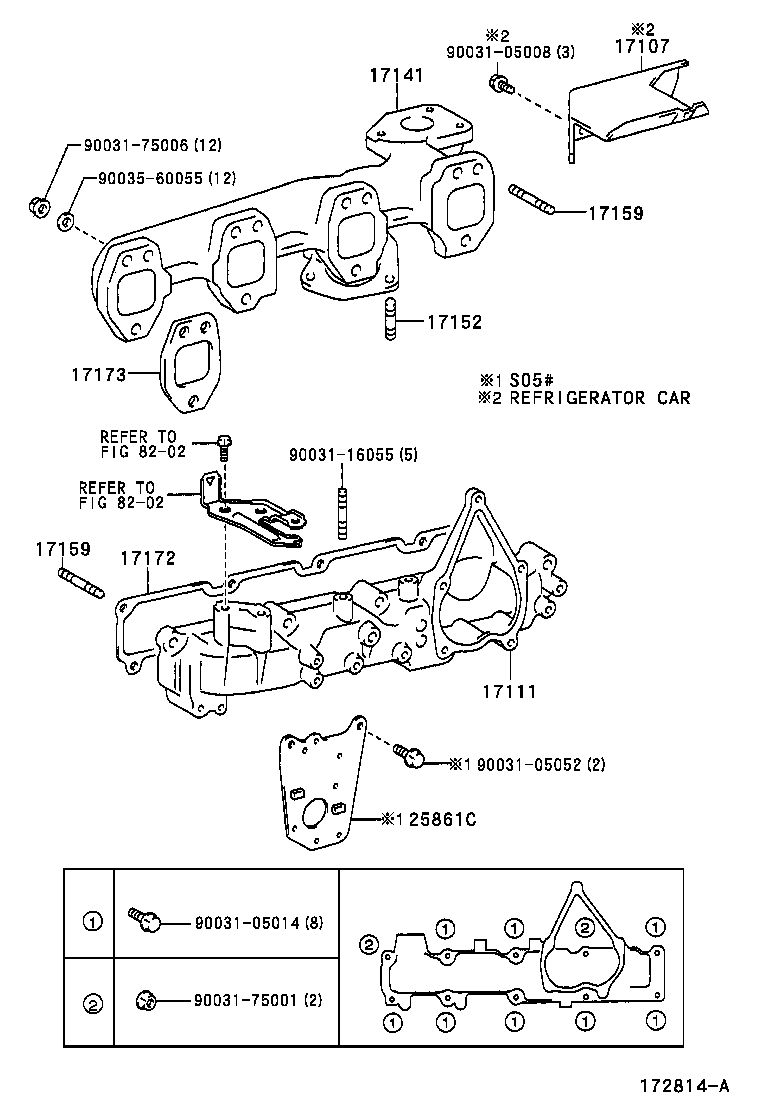

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90031-05008
90031-05014
90031-05052
90031-16055
90031-75001
90031-75006
90035-60055
Linked diagrams
8202

(0610-0705)N04C..XZU413,423

Click highlighted areas on diagram

Part #	Description	Period	Qty
15407 - PIPE SUB-ASSY, TURBO OIL INLET
29601-78100	N04C..XZU413,423,433	10/2006 - 06/2011	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90031-09073	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	1
90034-01010	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90031-09073	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	1
90034-01010	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15472 - GASKET, TURBO OIL OUTLET, NO.1
15471-78011	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15472-78011	N04C..XZU413,423,433	10/2006 - 06/2011	1
15474 - PIPE, TURBO OIL OUTLET
29601-78210	N04C..XZU413,423,433	10/2006 - 06/2011	1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-78161	N04C..XZU413,415,417,423,425,427,433,435..DCRTK	10/2006 - 11/2008	1
17107-78162	N04C..XZU41#,42#,43#	11/2008 - 12/2999	1
17111 - MANIFOLD, INTAKE
17111-78050	N04C..XZU413,415,417,423,425,427,433,435..DCRTK	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17141 - MANIFOLD, EXHAUST
17141-78081	N04C..XZU413,423,433	10/2006 - 06/2011	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90031-16069	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	6
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-78020	N04C..XZU413,423	05/2007 - 01/2008	1
17148-78040	N04C..XZU413,423,433	01/2008 - 06/2011	1
17148-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-78020	N04C..XZU413,423	05/2007 - 01/2008	1
17148-78040	N04C..XZU413,423,433	01/2008 - 06/2011	1
17148-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17148B - GASKET, EGR INLET
25685-78020	N04C..XZU413,423,433	05/2007 - 06/2011	1
25685-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17148B - GASKET, EGR INLET
25685-78020	N04C..XZU413,423,433	05/2007 - 06/2011	1
25685-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90031-16091	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16085	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16085	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17201 - TURBOCHARGER SUB-ASSY
17201-78190	N04C..XZU413,423,433	10/2006 - 03/2008	1
17201-78192	N04C..XZU413,423	08/2010 - 06/2011	1
17201-78191	N04C..XZU413,423,433	03/2008 - 08/2010	1
17271 - INSULATOR, TURBO, NO.1
17271-78030	N04C..XZU413,423,433	10/2006 - 06/2011	1
17279 - GASKET, TURBINE OUTLET ELBOW
17278-78030	N04C..XZU413,423,433	10/2006 - 06/2011	1
17291 - ELBOW, TURBINE OUTLET
17291-78042	N04C..XZU413,423,433	10/2006 - 06/2011	1
17293 - STAY, TURBOCHARGER
17455-78140	N04C..XZU413,423,433	10/2006 - 06/2011	1
25625B - BRACKET, EGR VALVE
25625-78012	N04C..XZU413,423,433	10/2006 - 11/2008	1
S1705-E0010	N04C..XZU413,423,433	11/2008 - 06/2011	1
25627A - GASKET, EGR HOLE COVER PLATE, NO.1
17173-78060	N04C..XZU413,423,433	10/2006 - 06/2011	1
Common parts
82702-37520
90031-01187
90031-05107
90031-05123
90031-05124
90031-05125
90031-05126
90031-05131
90031-05143
90031-16055
90031-16085
90031-16090
90031-16091
90031-16107
90031-19155
90031-75001
90031-75006
90031-75007
90035-60055
90035-60074
90179-08210
91651-60830
94150-80800
Linked diagrams
1703

(0705- )N04C..XZU413,423,433

Click highlighted areas on diagram

Part #	Description	Period	Qty
15407 - PIPE SUB-ASSY, TURBO OIL INLET
29601-78100	N04C..XZU413,423,433	10/2006 - 06/2011	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90031-09073	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	1
90034-01010	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90031-09073	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	1
90034-01010	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90201-12030	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.1	10/2006 - 12/2999	2
90201-14014	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
15472 - GASKET, TURBO OIL OUTLET, NO.1
15471-78011	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15472-78011	N04C..XZU413,423,433	10/2006 - 06/2011	1
15474 - PIPE, TURBO OIL OUTLET
29601-78210	N04C..XZU413,423,433	10/2006 - 06/2011	1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-78161	N04C..XZU413,415,417,423,425,427,433,435..DCRTK	10/2006 - 11/2008	1
17107-78162	N04C..XZU41#,42#,43#	11/2008 - 12/2999	1
17111 - MANIFOLD, INTAKE
17111-78050	N04C..XZU413,415,417,423,425,427,433,435..DCRTK	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17113 - PIPE, INTAKE
17113-78280	N04C..XZU413,423,433 NO.3	10/2006 - 06/2011	1
17113-78090	N04C..XZU413,423,433 NO.2	10/2006 - 06/2011	1
17141 - MANIFOLD, EXHAUST
17141-78081	N04C..XZU413,423,433	10/2006 - 06/2011	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90031-16069	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	6
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-78020	N04C..XZU413,423	05/2007 - 01/2008	1
17148-78040	N04C..XZU413,423,433	01/2008 - 06/2011	1
17148-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17148B - GASKET, EGR INLET
25685-78020	N04C..XZU413,423,433	05/2007 - 06/2011	1
25685-78020	N04C..XZU413,423	10/2006 - 05/2007	2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90031-16091	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16085	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16085	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16085	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK NO.2	10/2006 - 12/2999	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040	N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK	10/2006 - 12/2999	4
17201 - TURBOCHARGER SUB-ASSY
17201-78190	N04C..XZU413,423,433	10/2006 - 03/2008	1
17201-78192	N04C..XZU413,423	08/2010 - 06/2011	1
17201-78191	N04C..XZU413,423,433	03/2008 - 08/2010	1
17271 - INSULATOR, TURBO, NO.1
17271-78030	N04C..XZU413,423,433	10/2006 - 06/2011	1
17279 - GASKET, TURBINE OUTLET ELBOW
17278-78030	N04C..XZU413,423,433	10/2006 - 06/2011	1
17291 - ELBOW, TURBINE OUTLET
17291-78042	N04C..XZU413,423,433	10/2006 - 06/2011	1
17293 - STAY, TURBOCHARGER
17455-78140	N04C..XZU413,423,433	10/2006 - 06/2011	1
25625B - BRACKET, EGR VALVE
25625-78012	N04C..XZU413,423,433	10/2006 - 11/2008	1
S1705-E0010	N04C..XZU413,423,433	11/2008 - 06/2011	1
25627A - GASKET, EGR HOLE COVER PLATE, NO.1
17173-78060	N04C..XZU413,423,433	10/2006 - 06/2011	1
Common parts
17444-78160
82702-37540
90031-01187
90031-05107
90031-05123
90031-05124
90031-05125
90031-05126
90031-05131
90031-16055
90031-16085
90031-16090
90031-16091
90031-16107
90031-19155
90031-75001
90031-75006
90031-75007
90035-60055
90035-60074
90179-08210
91651-60830
Linked diagrams
1703
