XZU413L-TKMRD3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16400R 16400S 16401 16403F 16441 16442 16453 16454 16461 16462 9165140830 91651B0820
Part # Description Qty Price
Common parts
91651-40830
91651-B0820

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 16291 16304 16321 16331A 16333 16346 16361 16400 16470 16470A 16470B 16470B 16470R 16471 16533B 16534 16561 16571 16571A 16571A 16572 16572A 16572A 1658178100 16583 16583 16584 16584 16584 16584 16585 16586 16592 16593 16594 16711 16721 16721 8202 8202 8202 8202 9003105010 9003105010 9003105050 9003105053 9003301047 9011906182 9017906293 9017908233 9017908233 9017908233 9017908233 9017908249 9046713020 9151160612 9151160612 9151160612 9165160616 91651B0822 91651B0822
Part # Description Qty Price
Common parts
16581-78100
90031-05010
90031-05050
90031-05053
90033-01047
90119-06182
90179-06293
90179-08233
90179-08249
90467-13020
91511-60612
91651-60616
91651-B0822
Linked diagrams
8202

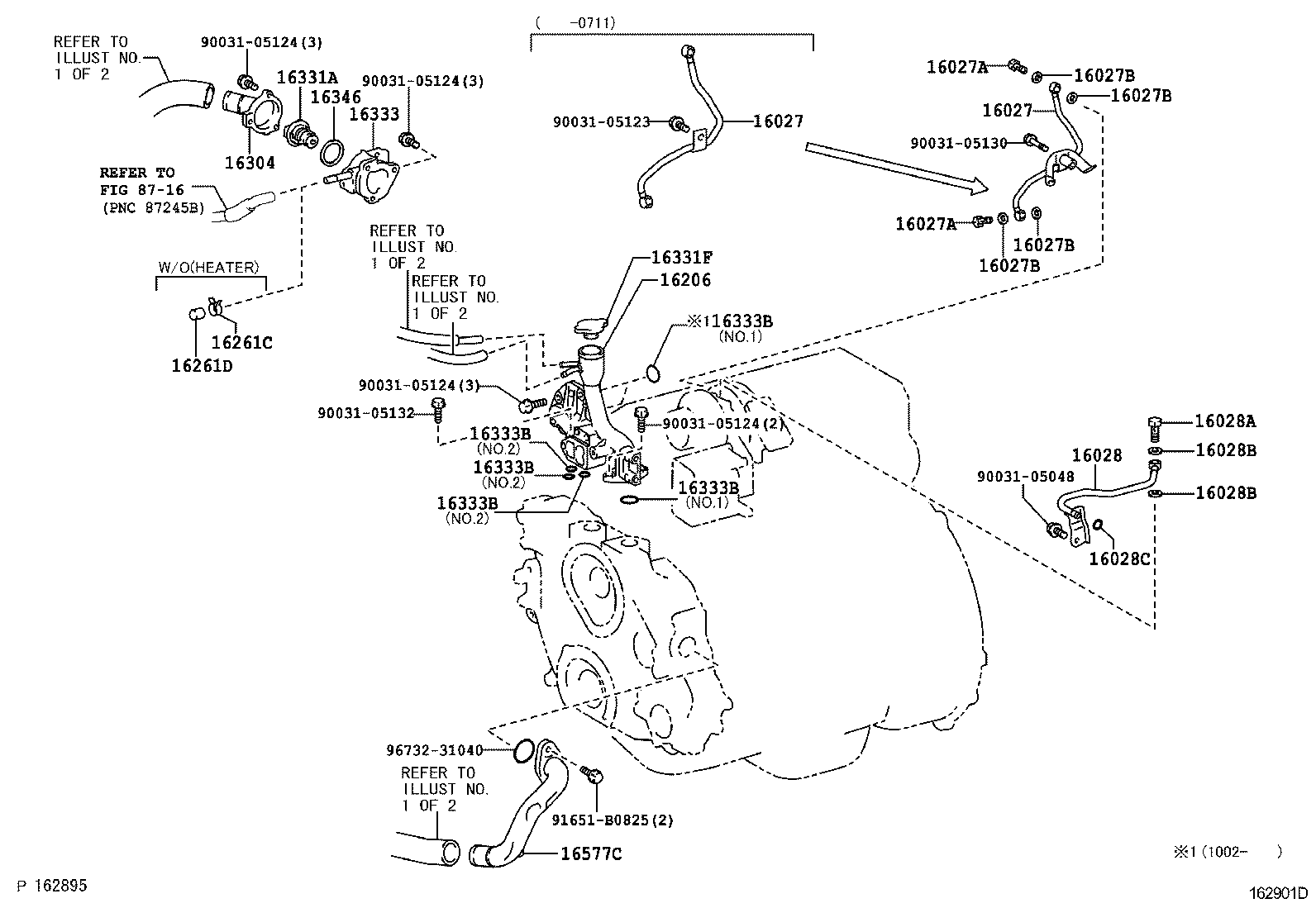

ILLUST NO. 2 OF 2(0610- )N04C..XZU413,423,433

Click highlighted areas on diagram

diagram 16027 16027 16027A 16027A 16027B 16027B 16027B 16027B 16028 16028A 16028B 16028B 16028C 16206 16261C 16261D 16304 16331A 16331F 16333 16333B 16333B 16333B 16333B 16333B 16346 16577C 8716 9003105048 9003105123 9003105124 9003105124 9003105124 9003105124 9003105130 9003105132 91651B0825 9673231040
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16302-78080

N04C..XZU413,423

 1
16206-78190

N04C..XZU413,423,433

 1
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16302-78080

N04C..XZU413,423

 1
16206-78190

N04C..XZU413,423,433

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
90034-01010

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 2
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
90034-01010

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 2
16027B - GASKET(FOR TURBO WATER PIPE)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 4
16027B - GASKET(FOR TURBO WATER PIPE)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 4
16027B - GASKET(FOR TURBO WATER PIPE)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 4
16027B - GASKET(FOR TURBO WATER PIPE)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 4
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16206-78050

N04C..XZU413,423,433

 1
16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2)
90034-01010

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 1
16028B - GASKET(FOR TURBO WATER PIPE NO.2)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 2
16028B - GASKET(FOR TURBO WATER PIPE NO.2)
90202-14004

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 2
16028C - RING, O(FOR TURBO WATER PIPE)
90301-09006

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-78410

N04C..XZU413,423

 1
16206-78231

N04C..XZU413,423,433

 1
16261C - CLAMP, W/O HEATER
90034-67032

N04C..XZU413,423..GEN

 1
16261D - PLUG, W/O HEATER
90339-16001

N04C..XZU413,423..GEN

 1
16304 - OUTLET SUB-ASSY, WATER
16304-78070

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

 1
16331A - THERMOSTAT
90038-33015

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16545-78010

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

 1
16545-78012

N04C..XZU41#,42#,439

 1
16545-78011

N04C..XZU41#,42#,439

 1
16333 - HOUSING, WATER OUTLET
16303-78090

N04C..XZU413,423,433

 1
16303-E0192

N04C..XZU413,423

 1
16303-78091

N04C..XZU413,423

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
90033-01068

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

NO.1

 1
90033-01101

N04C..XZU41#,42#,43#

NO.2

 3
90301-19005

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

NO.2

 3
90033-01068

N04C..XZU41#,42#,439

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
90033-01068

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

NO.1

 1
90033-01101

N04C..XZU41#,42#,43#

NO.2

 3
90301-19005

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

NO.2

 3
90033-01068

N04C..XZU41#,42#,439

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
90033-01068

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

NO.1

 1
90033-01101

N04C..XZU41#,42#,43#

NO.2

 3
90301-19005

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

NO.2

 3
90033-01068

N04C..XZU41#,42#,439

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
90033-01068

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

NO.1

 1
90033-01101

N04C..XZU41#,42#,43#

NO.2

 3
90301-19005

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

NO.2

 3
90033-01068

N04C..XZU41#,42#,439

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
90033-01068

N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK

NO.1

 1
90033-01101

N04C..XZU41#,42#,43#

NO.2

 3
90301-19005

N04C..XZU413,415,417,423,425,427,433,435..DCRTK

NO.2

 3
90033-01068

N04C..XZU41#,42#,439

NO.1

 3
Common parts
90031-05048
90031-05123
90031-05124
90031-05130
90031-05132
91651-B0825
96732-31040
Linked diagrams
8716
