XZU413L-TKMRD3 (2006)
Toyota Dyna
(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90033-63032 | ||||
| 90038-01017 | ||||
| 90038-01020 | ||||
| 90038-01022 | ||||
| Linked diagrams | ||||
| 1302 | ||||

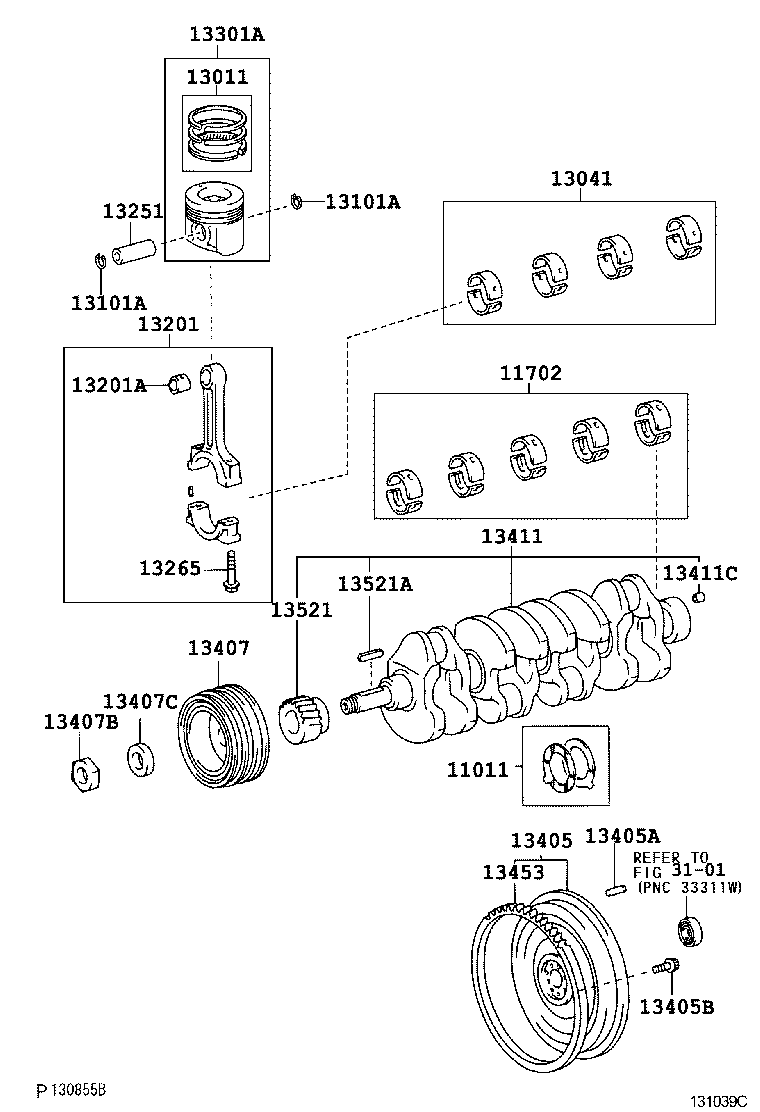

(0610-1008)N04C..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11708-78020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.50 |
1 | ||
| 11708-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.25 |
1 | ||
| 11708-78040 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 1.00 |
1 | ||
| 11708-78030 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.75 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78230 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-78030 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 13271-89102 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89103 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| 13301-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78090 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13450-78170 |
N04C..XZU41#,42#,439 |
1 | ||
| 13450-78091 |
N04C..XZU41#,42#,43# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK L=24,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZU41#,42#,439 |
8 | ||
| 90031-05112 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
6 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13407-78011 |
N04C..XZU41#,42#,439 |
1 | ||
| 13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER) | ||||
| 90170-27001 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13407C - SPACER(FOR CRANKSHAFT DAMPER) | ||||
| 90560-27006 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13478-78020 |
N04C..XZU41#,42#,439 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13400-78080 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13411-78081 |
N04C..XZU41#,42#,439 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90387-14013 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-89102 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13453-78020 |
N04C..XZU41#,42#,43# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90281-06001 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 90032-81009 |
N04C..XZU41#,42#,439 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
(1008- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11708-78020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.50 |
1 | ||
| 11708-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.25 |
1 | ||
| 11708-78040 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 1.00 |
1 | ||
| 11708-78030 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK U/S 0.75 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78230 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-78030 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 13271-89102 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89103 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
8 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| 13301-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78090 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13450-78170 |
N04C..XZU41#,42#,439 |
1 | ||
| 13450-78091 |
N04C..XZU41#,42#,43# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK L=24,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZU41#,42#,439 |
8 | ||
| 90031-05112 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
6 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-78010 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13407-78011 |
N04C..XZU41#,42#,439 |
1 | ||
| 13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER) | ||||
| 90170-27001 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13407C - SPACER(FOR CRANKSHAFT DAMPER) | ||||
| 90560-27006 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13478-78020 |
N04C..XZU41#,42#,439 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13400-78080 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13411-78081 |
N04C..XZU41#,42#,439 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90387-14013 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-89102 |
N04C..XZU413,415,417,423,425,427,433,435..DCRTK |
1 | ||
| 13453-78020 |
N04C..XZU41#,42#,43# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90281-06001 |
N04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK |
1 | ||
| 90032-81009 |
N04C..XZU41#,42#,439 |
1 | ||
| Common parts | ||||
| 90301-41003 | ||||
| Linked diagrams | ||||
| 3101 | ||||
