XZU412R-TKMMW (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )J05C,S05C..XZU412,420,422,430

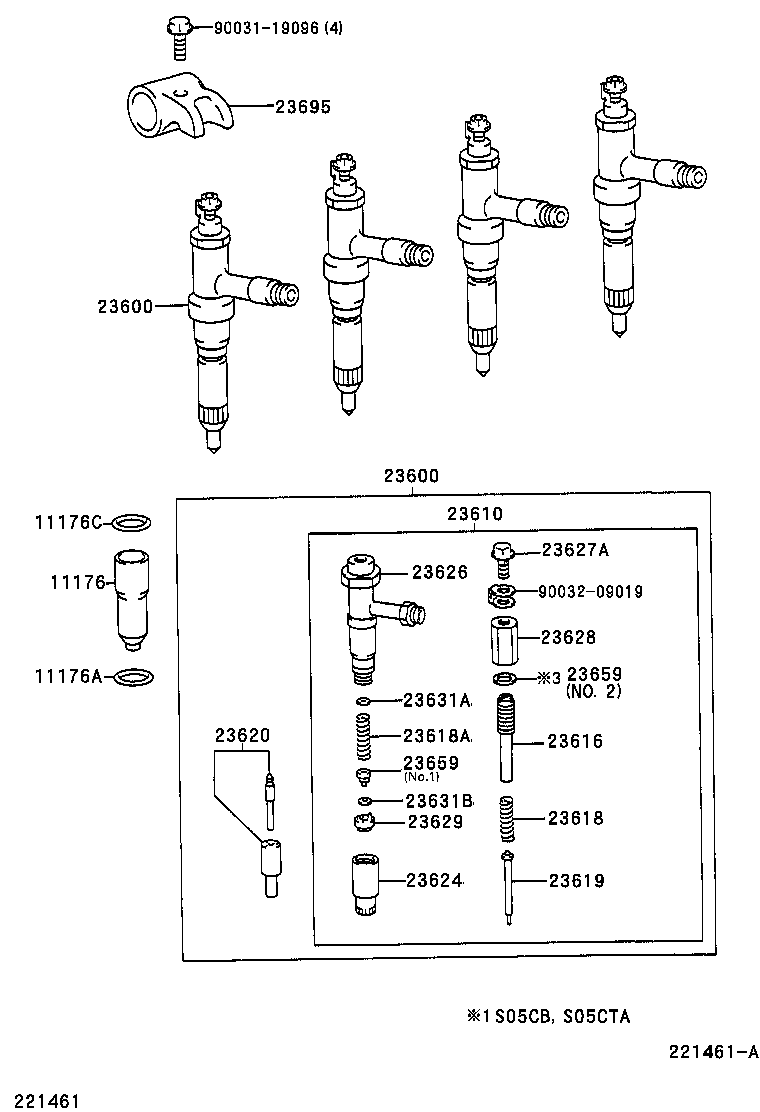

Click highlighted areas on diagram

diagram 11176 11176A 11176C 23600 23600 23610 23616 23618 23618A 23619 23620 23624 23626 23627A 23628 23629 23631A 23631B 23659 23659 23695 9003119096 9003209019
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-89101

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
11176A - GASKET(FOR INJECTION NOZZLE SEAT)
90034-30039

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
90034-30039

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-78060

S05C..XZU412,422..5F..TD

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-78060

S05C..XZU412,422..5F..TD

 4
23610 - HOLDER ASSY, NOZZLE
23610-78060

S05C..XZU412,422..5F..TD

 4
23616 - SCREW, CAP NOZZLE HOLDER
23616-89102

S05C..XZU412,422

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-89101

S05C..XZU412,422

 4
23618A - SPRING, NOZZLE HOLDER PRESSURE, NO.1
23618-89102

S05C..XZU412,422

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-89101

S05C..XZU412,422

 4
23620 - NOZZLE ASSY
23620-89109

S05C..XZU412,422..5F..TD

 4
23624 - NUT, NOZZLE RETAINING
23624-89103

S05C..XZU412,422

 4
23626 - BODY SUB-ASSY, NOZZLE
23626-78060

S05C..XZU412,422..TD

 4
23627A - SCREW, FOLLOW(FOR NOZZLE)
23656-89101

S05C..XZU412,422..5F

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-89101

S05C..XZU412,422..TD

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-89101

S05C..XZU412,422

 4
23631A - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)
23631-89102

S05C..XZU412,422

T=1.4

 4
23631-89103

S05C..XZU412,422

T=1.425

 4
23631-89108

S05C..XZU412,422

T=1.55

 4
23631-89106

S05C..XZU412,422

T=1.5

 4
23631-89111

S05C..XZU412,422

T=1.625

 4
23631-89112

S05C..XZU412,422

T=1.65

 4
23631-89107

S05C..XZU412,422

T=1.525

 4
23631-89113

S05C..XZU412,422

T=1.675

 4
23631-89120

S05C..XZU412,422

T=1.35

 4
23631-89141

S05C..XZU412,422

T=1.725

 4
23631-89110

S05C..XZU412,422

T=1.6

 4
23631-89119

S05C..XZU412,422

T=1.325

 4
23631-89104

S05C..XZU412,422

T=1.45

 4
23631-89105

S05C..XZU412,422

T=1.475

 4
23631-89116

S05C..XZU412,422

T=1.25

 4
23631-89109

S05C..XZU412,422

T=1.575

 4
23631-89118

S05C..XZU412,422

T=1.3

 4
23631-89115

S05C..XZU412,422

T=1.225

 4
23631-89144

S05C..XZU412,422

T=1.8

 4
23631-89143

S05C..XZU412,422

T=1.775

 4
23631-89114

S05C..XZU412,422

T=1.7

 4
23631-89142

S05C..XZU412,422

T=1.75

 4
23631-89121

S05C..XZU412,422

T=1.375

 4
23631-89117

S05C..XZU412,422

T=1.275

 4
23631-89152

S05C..XZU412,422

T=2.0

 4
23631-89155

S05C..XZU412,422

T=2.075

 4
23631-89153

S05C..XZU412,422

T=2.025

 4
23631-89146

S05C..XZU412,422

T=1.85

 4
23631-89145

S05C..XZU412,422

T=1.825

 4
23631-89148

S05C..XZU412,422

T=1.9

 4
23631-89149

S05C..XZU412,422

T=1.925

 4
23631-89151

S05C..XZU412,422

T=1.975

 4
23631-89159

S05C..XZU412,422

T=1.075

 4
23631-89158

S05C..XZU412,422

T=1.05

 4
23631-89162

S05C..XZU412,422

T=1.15

 4
23631-89156

S05C..XZU412,422

T=2.1

 4
23631-89161

S05C..XZU412,422

T=1.125

 4
23631-89157

S05C..XZU412,422

T=1.025

 4
23631-89147

S05C..XZU412,422

T=1.875

 4
23631-89150

S05C..XZU412,422

T=1.95

 4
23631-89160

S05C..XZU412,422

T=1.1

 4
23631-89163

S05C..XZU412,422

T=1.175

 4
23631-89164

S05C..XZU412,422

T=1.2

 4
23631-89182

S05C..XZU412,422

T=1.0

 4
23631-89154

S05C..XZU412,422

T=2.05

 4
23631B - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)
23631-89122

S05C..XZU412,422

T=1.3

 4
23631-89133

S05C..XZU412,422

T=1.5

 4
23631-89128

S05C..XZU412,422

T=1.42

 4
23631-89132

S05C..XZU412,422

T=1.48

 4
23631-89131

S05C..XZU412,422

T=1.46

 4
23631-89126

S05C..XZU412,422

T=1.38

 4
23631-89130

S05C..XZU412,422

T=1.44

 4
23631-89124

S05C..XZU412,422

T=1.34

 4
23631-89135

S05C..XZU412,422

T=1.54

 4
23631-89123

S05C..XZU412,422

T=1.32

 4
23631-89125

S05C..XZU412,422

T=1.36

 4
23631-89127

S05C..XZU412,422

T=1.4

 4
23631-89136

S05C..XZU412,422

T=1.56

 4
23631-89134

S05C..XZU412,422

T=1.52

 4
23631-89139

S05C..XZU412,422

T=1.62

 4
23631-89138

S05C..XZU412,422

T=1.6

 4
23631-89166

S05C..XZU412,422

T=1.66

 4
23631-89165

S05C..XZU412,422

T=1.64

 4
23631-89137

S05C..XZU412,422

T=1.58

 4
23631-89169

S05C..XZU412,422

T=1.43

 4
23631-89168

S05C..XZU412,422

T=1.7

 4
23631-89173

S05C..XZU412,422

T=1.51

 4
23631-89172

S05C..XZU412,422

T=1.49

 4
23631-89167

S05C..XZU412,422

T=1.68

 4
23631-89170

S05C..XZU412,422

T=1.45

 4
23631-89175

S05C..XZU412,422

T=1.55

 4
23631-89171

S05C..XZU412,422

T=1.47

 4
23631-89176

S05C..XZU412,422

T=1.57

 4
23631-89177

S05C..XZU412,422

T=1.59

 4
23631-89180

S05C..XZU412,422

T=1.65

 4
23631-89178

S05C..XZU412,422

T=1.61

 4
23631-89174

S05C..XZU412,422

T=1.53

 4
23631-89179

S05C..XZU412,422

T=1.63

 4
23631-89181

S05C..XZU412,422

T=1.67

 4
23659 - PACKING, TIP(FOR NOZZLE)
23659-89102

S05C..XZU412,422

NO.2

 4
23659-89101

S05C..XZU412,422

NO.1

 4
23659 - PACKING, TIP(FOR NOZZLE)
23659-89102

S05C..XZU412,422

NO.2

 4
23659-89101

S05C..XZU412,422

NO.1

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-89102

S05C..XZU412,422..5F

 4
Common parts
90031-19096
90032-09019
