XZU412L-TKMTW3 (2002)
Toyota Dyna
ILLUST NO. 2 OF 2(0110-0701)BU410,420,WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN,TAIW ; (0212-
VACUUM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78140 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78140 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 27690-78080 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 27690-78080 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37350 |
BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44763F - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 44771-37230 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37370 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44779J - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44779-37150 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 95446-09400 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||

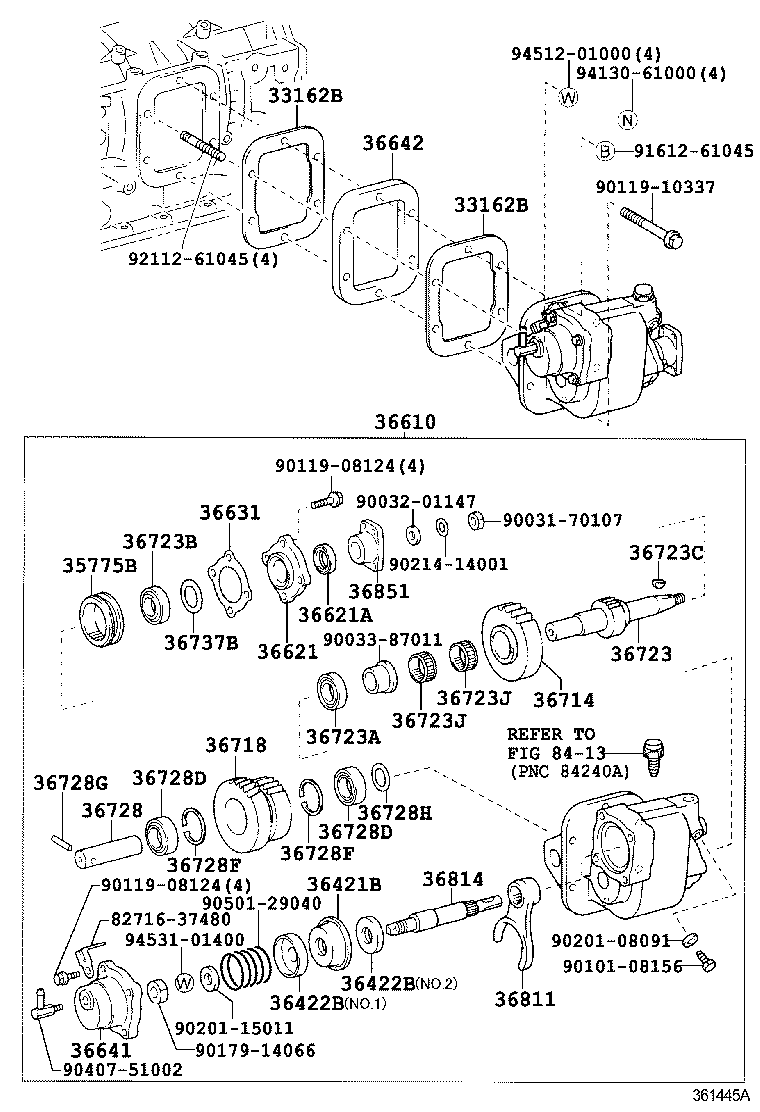

ILLUST NO. 1 OF 2(0110-0610)XZU404,412,414,422,424..5F
VACUUM TYPE 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 35775-37030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
1 | ||
| 36422-93101 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
1 | ||
| 36422-93101 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37200 |
XZU412,422..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37190 |
XZU412,422..5F;XZU404,414..55T..ARL VACUUM TYPE 25KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36632-93101 |
WU410,XZU404,41#,42#,434..ARL,GCC,GEN |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36642 - SPACER, POWER TAKE-OFF COVER | ||||
| 36642-37040 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37090 |
XZU404,41#,422,424..5F |
1 | ||
| 36714-37091 |
XZU404,412,414,422,424..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37090 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37030 |
XZU404,412,414,422,424..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN VACUUM TYPE 25KG |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XZU404,412,414,422,424..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU404,412,422..5F;XZU414,424..RHD..5F VACUUM TYPE 25KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU404,412,422..5F;XZU414,424..RHD..5F VACUUM TYPE 25KG |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.1 |
1 | ||
| 90564-25003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.2 |
1 | ||
| 90564-25001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.05 |
1 | ||
| 90564-25004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.07-0.13 |
1 | ||
| 90564-42001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.02-0.08 |
1 | ||
| 90564-42003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.17-0.23 |
1 | ||
| 90564-42004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN VACUUM TYPE 25KG |
1 | ||
| 36814-37060 |
XZU412,422..5F;XZU414,424..LHD..GEN MANUAL LEVER TYPE 25KG |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10337 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 91612-61045 | ||||
| 92112-61045 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||

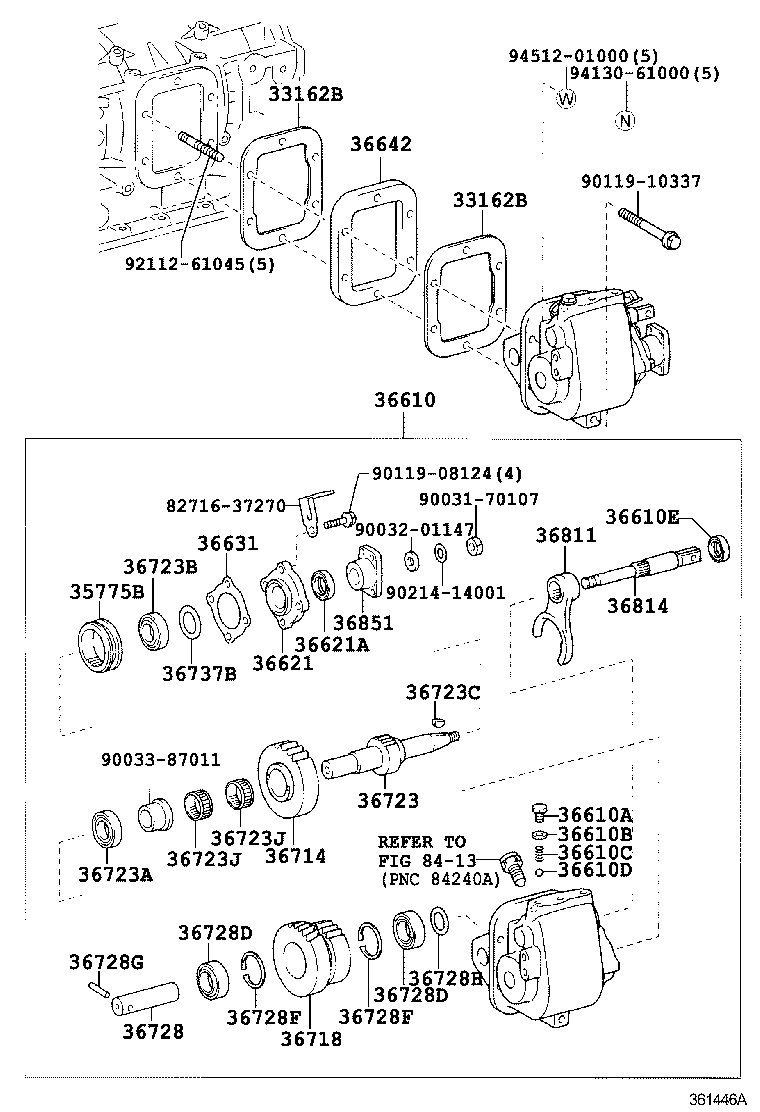

(0212-0610)XZU412,422..5F ; (0212-0610)XZU414,424..LHD..GEN
MANUAL LEVER TYPE 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 35775-37030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37200 |
XZU412,422..5F MANUAL LEVER TYPE 25KG |
1 | ||
| 36610-37190 |
XZU412,422..5F;XZU404,414..55T..ARL VACUUM TYPE 25KG |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90031-01180 |
XZU412,422..5F;XZU414,424..LHD..GEN |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
XZU412,422..5F;XZU414,424..LHD..GEN T=0.5 |
1 | ||
| 90430-12006 |
XZU412,422..5F;XZU414,424..LHD..GEN T=1 |
1 | ||
| 90430-12004 |
XZU412,422..5F;XZU414,424..LHD..GEN T=2 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
XZU412,422..5F;XZU414,424..LHD..GEN |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
XZU412,422..5F;XZU414,424..LHD..GEN |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU412,422..5F;XZU414,424..LHD..GEN |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36632-93101 |
WU410,XZU404,41#,42#,434..ARL,GCC,GEN |
1 | ||
| 36642 - SPACER, POWER TAKE-OFF COVER | ||||
| 36642-37040 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37090 |
XZU404,41#,422,424..5F |
1 | ||
| 36714-37091 |
XZU404,412,414,422,424..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37090 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37030 |
XZU404,412,414,422,424..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN VACUUM TYPE 25KG |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XZU404,412,414,422,424..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU404,412,422..5F;XZU414,424..RHD..5F VACUUM TYPE 25KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU404,412,422..5F;XZU414,424..RHD..5F VACUUM TYPE 25KG |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.1 |
1 | ||
| 90564-25003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.2 |
1 | ||
| 90564-25001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.05 |
1 | ||
| 90564-25004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.07-0.13 |
1 | ||
| 90564-42001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.02-0.08 |
1 | ||
| 90564-42003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.17-0.23 |
1 | ||
| 90564-42004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN VACUUM TYPE 25KG |
1 | ||
| 36814-37060 |
XZU412,422..5F;XZU414,424..LHD..GEN MANUAL LEVER TYPE 25KG |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82716-37270 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90119-08124 | ||||
| 90119-10337 | ||||
| 90214-14001 | ||||
| 92112-61045 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8413 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
