XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )LHD..GCC,GEN,TAIW

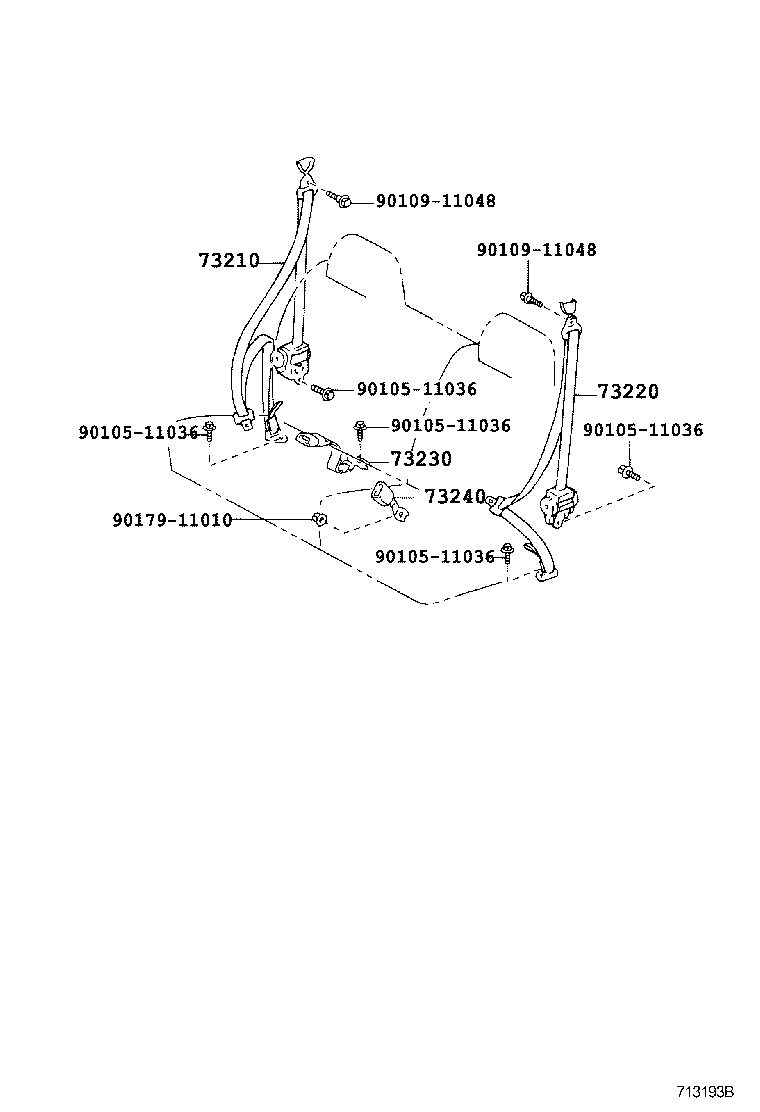

Click highlighted areas on diagram

diagram 73150 73210 73220 73230 73240 9010511036 9010511036 9010511036 9010511036 9010511036 9010911048 9010911048 9017911010
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37100B0

WU410,XZU412,414,422,424..LHD..5F..GEN

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37110B0

BU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(EUR,GEN,TAIW)..(DCR,DSL,TD)

DK.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90109-11048
90179-11010

(0212- )XZU412,422..LHD..GEN ; (0212- )WU41#,422,XZU413,414,423,424..LHD..5F.

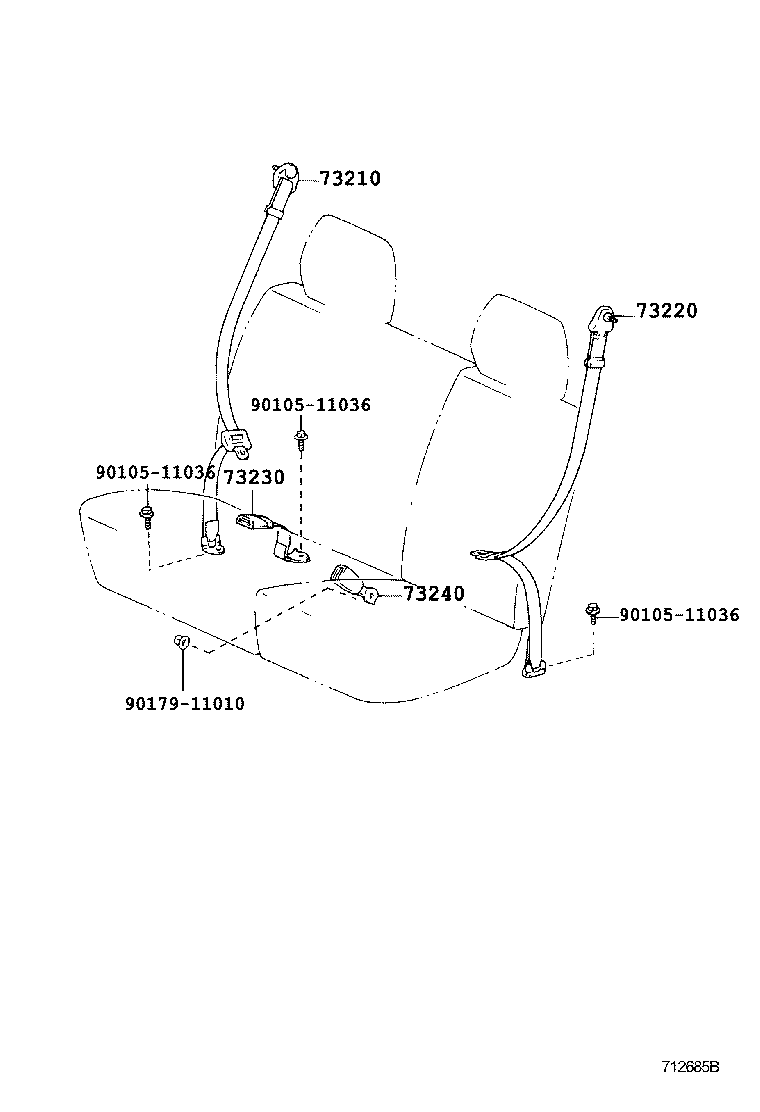

Click highlighted areas on diagram

NON-RETRACTOR TYPE SEAT BELT

diagram 73210 73220 73230 73240 9010511036 9010511036 9010511036 9017911010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37110B0

BU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(EUR,GEN,TAIW)..(DCR,DSL,TD)

DK.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90179-11010

(0212- )XZU412,422..LHD..GEN ; (0212- )WU41#,422,XZU413,414,423,424..LHD..5F.

Click highlighted areas on diagram

W/O(CENTER SEAT BELT)

diagram 73210 73220 73230 73240 9010511036 9010511036 9010511036 9010511036 9010511036 9010911048 9010911048 9017911010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37110B0

BU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(EUR,GEN,TAIW)..(DCR,DSL,TD)

DK.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90109-11048
90179-11010
