XZU412L-TKMRS3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

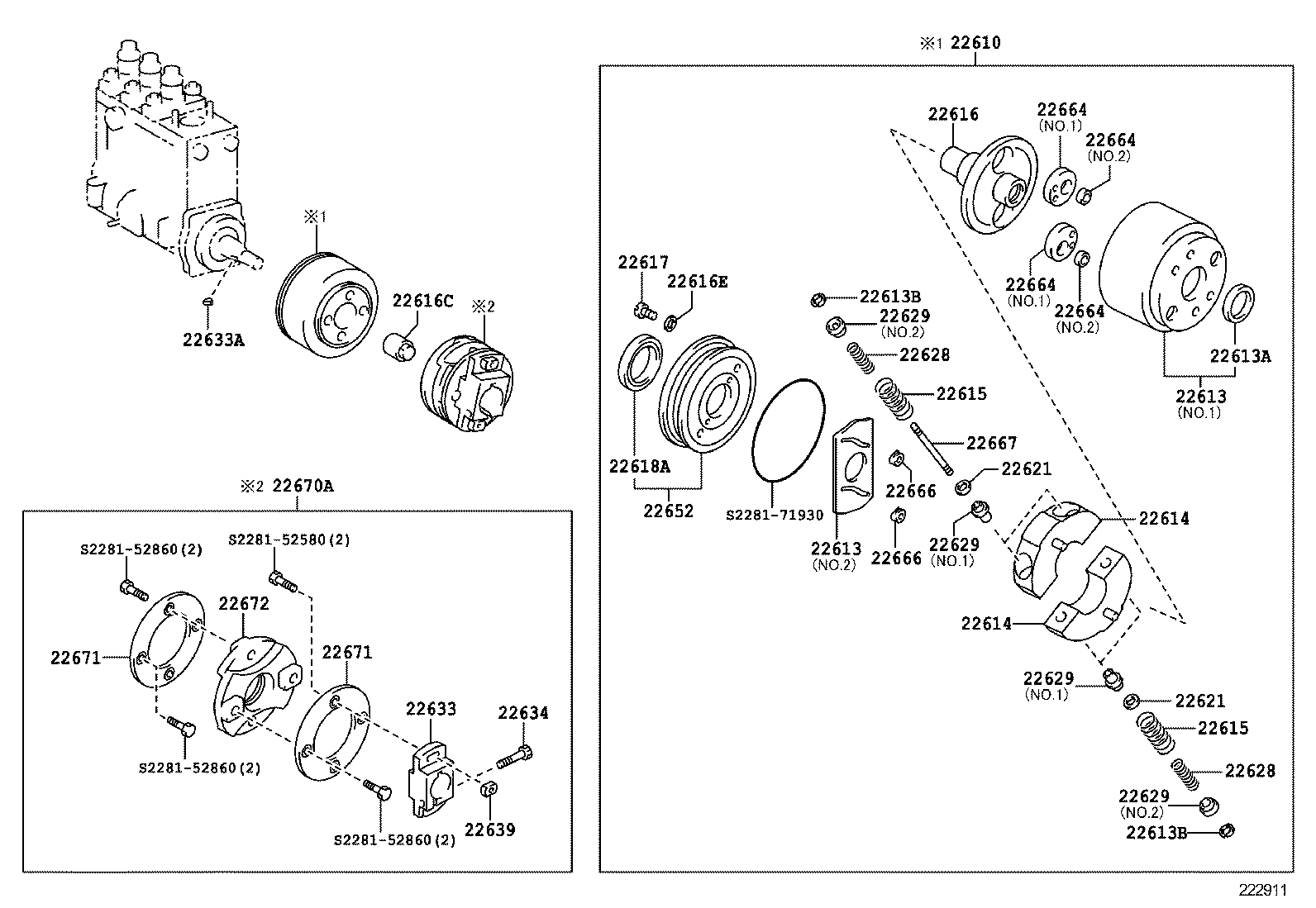

| 22610 - TIMER ASSY, AUTOMATIC | ||||
| S2251-03080 |
S05C..XZU412,422..DSL |
1 | ||
| 22613 - FLANGE, TIMER DRIVING | ||||
| S2251-32670 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2251-32420 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22613 - FLANGE, TIMER DRIVING | ||||
| S2251-32670 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| S2251-32420 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| 22613A - SEAL, OIL(FOR TIMER DRIVING FLANGE) | ||||
| S2282-71680 |
S05C..XZU412,422..DSL |
1 | ||
| 22613B - RETAINER, TIMER SPRING SEAT | ||||
| S2251-81110 |
S05C..XZU412,422..DSL |
4 | ||
| 22613B - RETAINER, TIMER SPRING SEAT | ||||
| S2251-81110 |
S05C..XZU412,422..DSL |
4 | ||
| 22614 - WEIGHT, TIMER | ||||
| S2251-44230 |
S05C..XZU412,422..DSL |
2 | ||
| 22614 - WEIGHT, TIMER | ||||
| S2251-44230 |
S05C..XZU412,422..DSL |
2 | ||
| 22615 - SPRING, TIMER | ||||
| S2251-57160 |
S05C..XZU412,422..DSL |
4 | ||
| 22615 - SPRING, TIMER | ||||
| S2251-57160 |
S05C..XZU412,422..DSL |
4 | ||
| 22616 - HUB, TIMER | ||||
| S2251-62070 |
S05C..XZU412,422..DSL |
1 | ||
| 22616C - NUT, TIMER COVER | ||||
| S2282-52240 |
S05C..XZU412,422..DSL |
1 | ||
| 22616E - WASHER, PLATE(FOR TIMER HUB) | ||||
| S2286-71500 |
S05C..XZU412,422..DSL T=1.0 |
2 | ||
| 22617 - SCREW, TIMER HUB | ||||
| S2286-51270 |
S05C..XZU412,422..DSL |
2 | ||
| 22618A - SEAL, OIL | ||||
| S2282-71690 |
S05C..XZU412,422..DSL |
1 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| S2288-57340 |
S05C..XZU412,422..DSL T=0.8 |
4 | ||
| S2288-55870 |
S05C..XZU412,422..DSL T=0.5 |
4 | ||
| S2288-57840 |
S05C..XZU412,422..DSL T=1.1 |
4 | ||
| S2288-55890 |
S05C..XZU412,422..DSL T=0.7 |
4 | ||
| S2288-55880 |
S05C..XZU412,422..DSL T=0.6 |
4 | ||
| S2288-57850 |
S05C..XZU412,422..DSL T=1.2 |
4 | ||
| S2288-57350 |
S05C..XZU412,422..DSL T=0.9 |
4 | ||
| S2288-57880 |
S05C..XZU412,422..DSL T=1.5 |
4 | ||
| S2288-57890 |
S05C..XZU412,422..DSL T=1.4 |
4 | ||
| S2288-57830 |
S05C..XZU412,422..DSL T=1.0 |
4 | ||
| S2288-57860 |
S05C..XZU412,422..DSL T=1.3 |
4 | ||
| 22621 - WASHER, TIMER SPRING ADJUST | ||||
| S2288-57340 |
S05C..XZU412,422..DSL T=0.8 |
4 | ||
| S2288-55870 |
S05C..XZU412,422..DSL T=0.5 |
4 | ||
| S2288-57840 |
S05C..XZU412,422..DSL T=1.1 |
4 | ||
| S2288-55890 |
S05C..XZU412,422..DSL T=0.7 |
4 | ||
| S2288-55880 |
S05C..XZU412,422..DSL T=0.6 |
4 | ||
| S2288-57850 |
S05C..XZU412,422..DSL T=1.2 |
4 | ||
| S2288-57350 |
S05C..XZU412,422..DSL T=0.9 |
4 | ||
| S2288-57880 |
S05C..XZU412,422..DSL T=1.5 |
4 | ||
| S2288-57890 |
S05C..XZU412,422..DSL T=1.4 |
4 | ||
| S2288-57830 |
S05C..XZU412,422..DSL T=1.0 |
4 | ||
| S2288-57860 |
S05C..XZU412,422..DSL T=1.3 |
4 | ||
| 22628 - SPRING, TIMER SUB | ||||
| S2251-57170 |
S05C..XZU412,422..DSL |
4 | ||
| 22628 - SPRING, TIMER SUB | ||||
| S2251-57170 |
S05C..XZU412,422..DSL |
4 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| S2251-71581 |
S05C..XZU412,422..DSL NO.1 |
4 | ||
| S2251-71600 |
S05C..XZU412,422..DSL NO.2 |
4 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| S2251-71581 |
S05C..XZU412,422..DSL NO.1 |
4 | ||
| S2251-71600 |
S05C..XZU412,422..DSL NO.2 |
4 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| S2251-71581 |
S05C..XZU412,422..DSL NO.1 |
4 | ||
| S2251-71600 |
S05C..XZU412,422..DSL NO.2 |
4 | ||
| 22629 - SEAT, SPRING(FOR TIMER SPRING) | ||||
| S2251-71581 |
S05C..XZU412,422..DSL NO.1 |
4 | ||
| S2251-71600 |
S05C..XZU412,422..DSL NO.2 |
4 | ||
| 22633 - FLANGE, COUPLING | ||||
| S2261-12181 |
S05C..XZU412,422..DSL |
1 | ||
| 22633A - KEY, WOODRUFF(FOR COUPLING FLANGE) | ||||
| S2289-11070 |
S05C..XZU412,422..DSL |
1 | ||
| 22634 - BOLT, COUPLING FLANGE SET | ||||
| S2281-52870 |
S05C..XZU412,422..DSL |
1 | ||
| 22639 - NUT, COUPLING FLANGE SET BOLT LOCK | ||||
| S2282-52510 |
S05C..XZU412,422..DSL |
2 | ||
| 22652 - COVER SUB-ASSY, TIMER | ||||
| S2250-11210 |
S05C..XZU412,422..DSL |
1 | ||
| 22664 - CAM, TIMER | ||||
| S2254-51330 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2254-51320 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22664 - CAM, TIMER | ||||
| S2254-51330 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2254-51320 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22664 - CAM, TIMER | ||||
| S2254-51330 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2254-51320 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22664 - CAM, TIMER | ||||
| S2254-51330 |
S05C..XZU412,422..DSL NO.1 |
2 | ||
| S2254-51320 |
S05C..XZU412,422..DSL NO.2 |
2 | ||
| 22666 - ROLLER, TIMER | ||||
| S2252-21090 |
S05C..XZU412,422..DSL |
2 | ||
| 22666 - ROLLER, TIMER | ||||
| S2252-21090 |
S05C..XZU412,422..DSL |
2 | ||
| 22667 - SLEEVE | ||||
| S2251-71590 |
S05C..XZU412,422..DSL |
2 | ||
| 22670A - COUPLING ASSY, INJECTION PUMP | ||||
| S2261-01860 |
S05C..XZU412,422..DSL |
1 | ||
| 22671 - PLATE, COUPLING | ||||
| S2260-11200 |
S05C..XZU412,422..DSL |
2 | ||
| 22671 - PLATE, COUPLING | ||||
| S2260-11200 |
S05C..XZU412,422..DSL |
2 | ||
| 22672 - COUPLING, CROSS | ||||
| S2261-51350 |
S05C..XZU412,422..DSL |
1 | ||
| Common parts | ||||
| S2281-52580 | ||||
| S2281-52860 | ||||
| S2281-71930 | ||||
