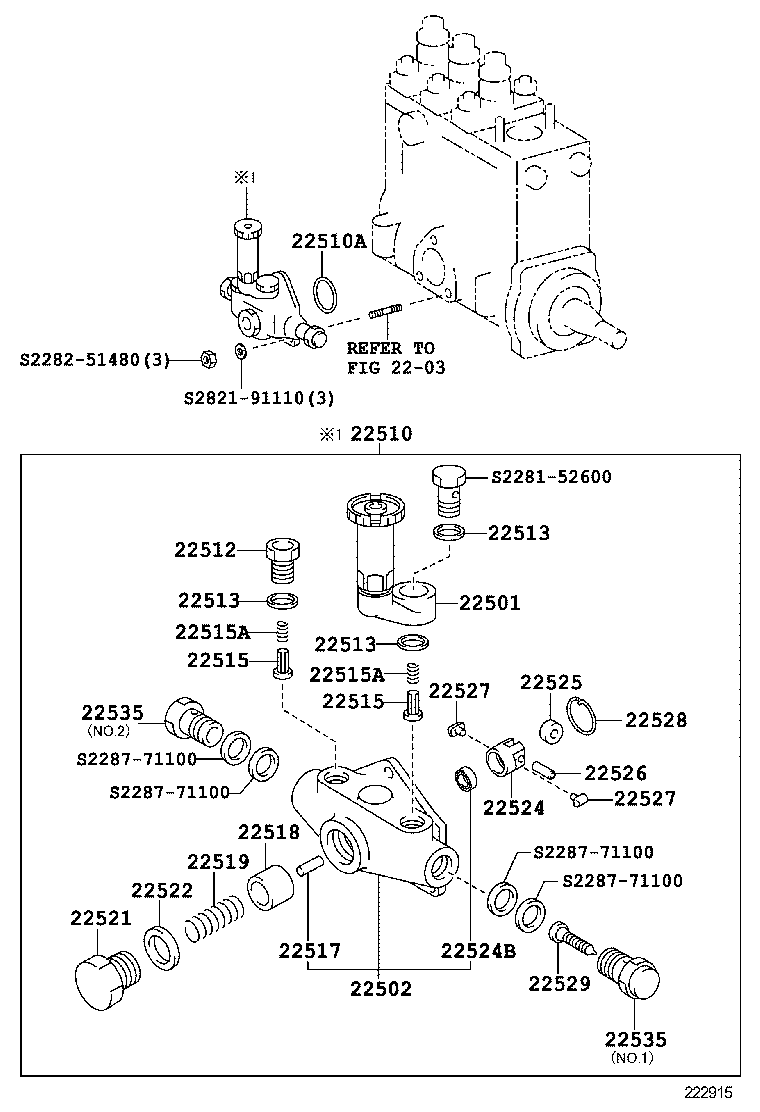

XZU412L-TKMRS3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22501 - PUMP SUB-ASSY, PRIMING | ||||
| S2250-91390 |
S05C..XZU412,422..DSL |
1 | ||
| 22502 - HOUSING SUB-ASSY, FUEL | ||||
| S2258-01210 |
S05C..XZU412,422..DSL |
1 | ||
| 22510 - PUMP ASSY, FUEL FEED | ||||
| S2257-01880 |
S05C..XZU412,422..DSL |
1 | ||
| 22510A - RING, O(FOR FUEL FEED PUMP) | ||||
| S2281-71540 |
S05C..XZU412,422..DSL |
1 | ||
| 22512 - PLUG, FEED PUMP CHECK VALVE CHAMBER | ||||
| S2284-51350 |
S05C..XZU412,422..DSL |
1 | ||
| 22513 - GASKET, CHECK VALVE CHAMBER PLUG | ||||
| S2284-71680 |
S05C..XZU412,422..DSL |
3 | ||
| 22513 - GASKET, CHECK VALVE CHAMBER PLUG | ||||
| S2284-71680 |
S05C..XZU412,422..DSL |
3 | ||
| 22513 - GASKET, CHECK VALVE CHAMBER PLUG | ||||
| S2284-71680 |
S05C..XZU412,422..DSL |
3 | ||
| 22515 - VALVE, FEED PUMP CHECK | ||||
| S2256-31041 |
S05C..XZU412,422..DSL |
2 | ||
| 22515 - VALVE, FEED PUMP CHECK | ||||
| S2256-31041 |
S05C..XZU412,422..DSL |
2 | ||
| 22515A - SPRING, FEED PUMP CHECK VALVE | ||||
| S2256-21020 |
S05C..XZU412,422..DSL |
2 | ||
| 22515A - SPRING, FEED PUMP CHECK VALVE | ||||
| S2256-21020 |
S05C..XZU412,422..DSL |
2 | ||
| 22517 - ROD, FEED PUMP PUSH | ||||
| S2256-51250 |
S05C..XZU412,422..DSL |
1 | ||
| 22518 - PISTON, FEED PUMP | ||||
| S2256-61200 |
S05C..XZU412,422..DSL |
1 | ||
| 22519 - SPRING, FEED PUMP PISTON | ||||
| S2256-71090 |
S05C..XZU412,422..DSL |
1 | ||
| 22521 - PLUG, FEED PUMP PISTON CHAMBER | ||||
| S2284-51360 |
S05C..XZU412,422..DSL |
1 | ||
| 22522 - GASKET, FEED PUMP PISTON PLUG | ||||
| S2284-71690 |
S05C..XZU412,422..DSL |
1 | ||
| 22524 - TAPPET, FEED PUMP | ||||
| S2256-81270 |
S05C..XZU412,422..DSL |
1 | ||
| 22524B - SEAL, OIL | ||||
| S2282-71700 |
S05C..XZU412,422..DSL |
1 | ||
| 22525 - ROLLER, FEED PUMP TAPPET | ||||
| S2256-91130 |
S05C..XZU412,422..DSL |
1 | ||
| 22526 - PIN, FEED PUMP TAPPET ROLLER | ||||
| S2257-11060 |
S05C..XZU412,422..DSL |
1 | ||
| 22527 - BLOCK, FEED PUMP TAPPET SLIDING | ||||
| S2257-21150 |
S05C..XZU412,422..DSL |
2 | ||
| 22527 - BLOCK, FEED PUMP TAPPET SLIDING | ||||
| S2257-21150 |
S05C..XZU412,422..DSL |
2 | ||
| 22528 - RING, FEED PUMP TAPPET SNAP | ||||
| S2288-71160 |
S05C..XZU412,422..DSL |
1 | ||
| 22529 - FILTER, FUEL PUMP | ||||
| S2257-41040 |
S05C..XZU412,422..DSL |
1 | ||
| 22535 - SCREW, FUEL PIPE FOLLOW | ||||
| S2283-51370 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2283-51590 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22535 - SCREW, FUEL PIPE FOLLOW | ||||
| S2283-51370 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2283-51590 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| Common parts | ||||
| S2281-52600 | ||||
| S2282-51480 | ||||
| S2287-71100 | ||||
| S2821-91110 | ||||
| Linked diagrams | ||||
| 2203 | ||||
