XZU412L-TKMRS3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422..DSL

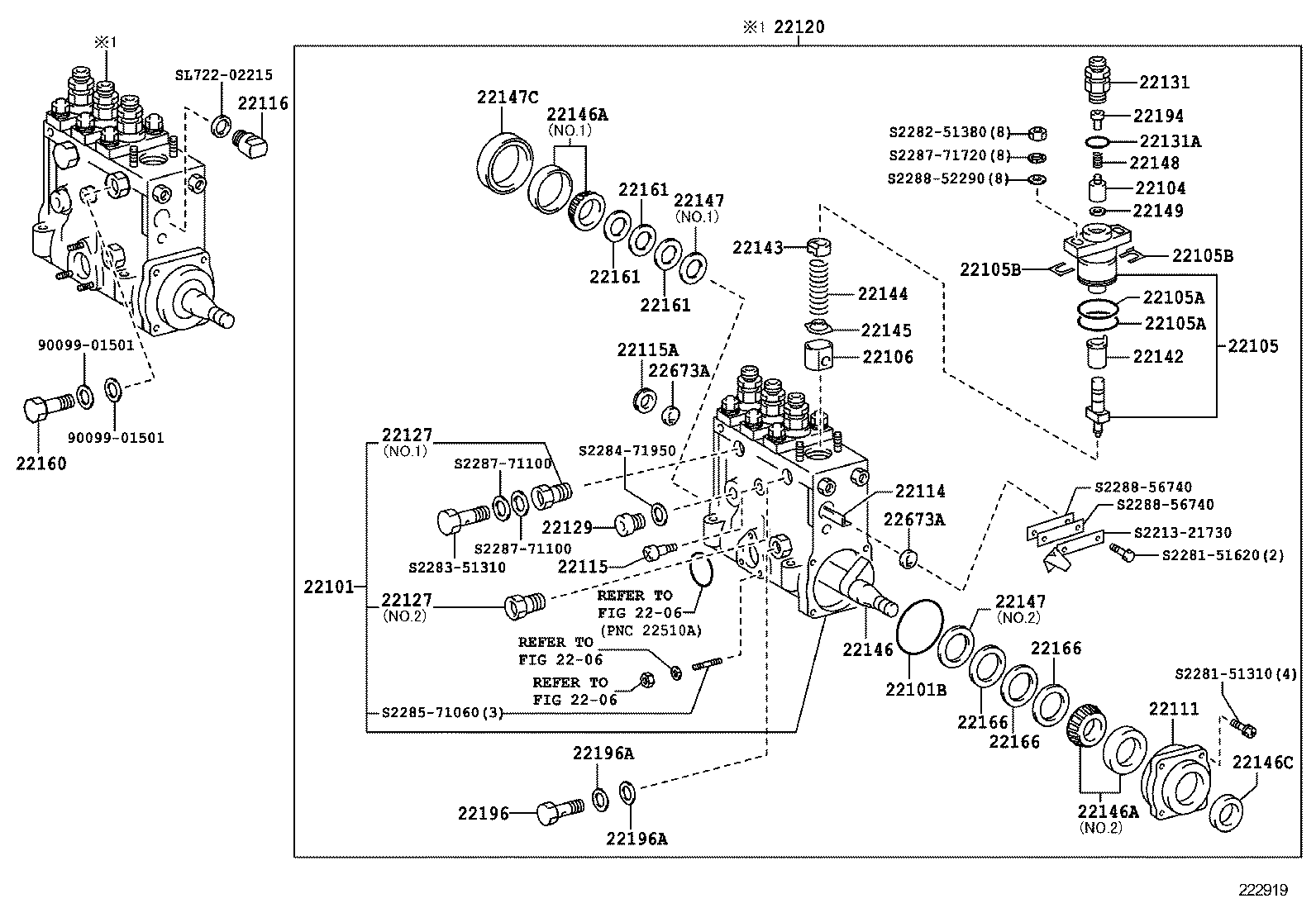

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| S2210-14380 |
S05C..XZU412,422..DSL |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| S2281-71470 |
S05C..XZU412,422..DSL |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| S2210-32390 |
S05C..XZU412,422..DSL |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| S2210-44321 |
S05C..XZU412,422..DSL |
4 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| S2281-72280 |
S05C..XZU412,422..DSL |
8 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| S2281-72280 |
S05C..XZU412,422..DSL |
8 | ||
| 22105B - SHIM(FOR INJECTION PUMP ELEMENT) | ||||
| S2288-52350 |
S05C..XZU412,422..DSL T=1.40 |
8 | ||
| S2288-52400 |
S05C..XZU412,422..DSL T=1.60 |
8 | ||
| S2288-52370 |
S05C..XZU412,422..DSL T=1.35 |
8 | ||
| S2288-58200 |
S05C..XZU412,422..DSL T=1.25 |
8 | ||
| S2288-52310 |
S05C..XZU412,422..DSL T=1.80 |
8 | ||
| S2288-52360 |
S05C..XZU412,422..DSL T=1.50 |
8 | ||
| S2288-58220 |
S05C..XZU412,422..DSL T=1.15 |
8 | ||
| S2288-52300 |
S05C..XZU412,422..DSL T=1.75 |
8 | ||
| S2288-52410 |
S05C..XZU412,422..DSL T=1.65 |
8 | ||
| S2288-52390 |
S05C..XZU412,422..DSL T=1.55 |
8 | ||
| S2288-58170 |
S05C..XZU412,422..DSL T=1.20 |
8 | ||
| S2288-52420 |
S05C..XZU412,422..DSL T=1.70 |
8 | ||
| S2288-58180 |
S05C..XZU412,422..DSL T=1.30 |
8 | ||
| S2288-57900 |
S05C..XZU412,422..DSL T=1.45 |
8 | ||
| 22105B - SHIM(FOR INJECTION PUMP ELEMENT) | ||||
| S2288-52350 |
S05C..XZU412,422..DSL T=1.40 |
8 | ||
| S2288-52400 |
S05C..XZU412,422..DSL T=1.60 |
8 | ||
| S2288-52370 |
S05C..XZU412,422..DSL T=1.35 |
8 | ||
| S2288-58200 |
S05C..XZU412,422..DSL T=1.25 |
8 | ||
| S2288-52310 |
S05C..XZU412,422..DSL T=1.80 |
8 | ||
| S2288-52360 |
S05C..XZU412,422..DSL T=1.50 |
8 | ||
| S2288-58220 |
S05C..XZU412,422..DSL T=1.15 |
8 | ||
| S2288-52300 |
S05C..XZU412,422..DSL T=1.75 |
8 | ||
| S2288-52410 |
S05C..XZU412,422..DSL T=1.65 |
8 | ||
| S2288-52390 |
S05C..XZU412,422..DSL T=1.55 |
8 | ||
| S2288-58170 |
S05C..XZU412,422..DSL T=1.20 |
8 | ||
| S2288-52420 |
S05C..XZU412,422..DSL T=1.70 |
8 | ||
| S2288-58180 |
S05C..XZU412,422..DSL T=1.30 |
8 | ||
| S2288-57900 |
S05C..XZU412,422..DSL T=1.45 |
8 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| S2210-51480 |
S05C..XZU412,422..DSL |
4 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| S2211-11320 |
S05C..XZU412,422..DSL |
1 | ||
| 22114 - RACK, CONTROL | ||||
| S2211-31870 |
S05C..XZU412,422..DSL |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| S2281-14850 |
S05C..XZU412,422..DSL |
1 | ||
| 22115A - BUSH, SCREW | ||||
| S2213-11190 |
S05C..XZU412,422..DSL |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| S2211-41200 |
S05C..XZU412,422..DSL |
1 | ||
| 22120 - BODY ASSY,INJECTION | ||||
| S2211-03690 |
S05C..XZU412,422..DSL |
1 | ||
| 22127 - UNION, INJECTION PUMP FUEL INLET | ||||
| S2213-11580 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2213-11590 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22127 - UNION, INJECTION PUMP FUEL INLET | ||||
| S2213-11580 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2213-11590 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22129 - PLUG, SCREW | ||||
| S2284-51280 |
S05C..XZU412,422..DSL |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| S2211-61230 |
S05C..XZU412,422..DSL |
4 | ||
| 22131A - RING, O(FOR DELIVERY VALVE HOLDER) | ||||
| S2281-71260 |
S05C..XZU412,422..DSL |
4 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| S2211-81320 |
S05C..XZU412,422..DSL |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| S2211-91090 |
S05C..XZU412,422..DSL |
4 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| S2212-11110 |
S05C..XZU412,422..DSL |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| S2212-21100 |
S05C..XZU412,422..DSL |
4 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| S2212-32390 |
S05C..XZU412,422..DSL |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| S2283-71180 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2283-71050 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| S2283-71180 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2283-71050 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT | ||||
| S2282-71750 |
S05C..XZU412,422..DSL |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| S2212-41090 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2212-41100 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| S2212-41090 |
S05C..XZU412,422..DSL NO.1 |
1 | ||
| S2212-41100 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 22147C - RETAINER, BEARING | ||||
| S2211-11310 |
S05C..XZU412,422..DSL |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| S2212-51430 |
S05C..XZU412,422..DSL |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| S2284-71550 |
S05C..XZU412,422..DSL |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22199-78290 |
S05C..XZU412,422 |
1 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2288-55700 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| S2288-55680 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-51580 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-55690 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-51560 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2288-51570 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56670 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2288-55700 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| S2288-55680 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-51580 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-55690 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-51560 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2288-51570 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56670 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| S2288-51550 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2288-55700 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| S2288-55680 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-51580 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-55690 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-51560 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2288-51570 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56670 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2212-91220 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2212-91210 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2212-91230 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56700 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-56730 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| S2212-91240 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-56690 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-56710 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2212-91220 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2212-91210 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2212-91230 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56700 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-56730 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| S2212-91240 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-56690 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-56710 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| S2212-91220 |
S05C..XZU412,422..DSL T=0.16 |
3 | ||
| S2212-91210 |
S05C..XZU412,422..DSL T=0.10 |
3 | ||
| S2212-91230 |
S05C..XZU412,422..DSL T=0.30 |
3 | ||
| S2288-56700 |
S05C..XZU412,422..DSL T=0.14 |
3 | ||
| S2288-56730 |
S05C..XZU412,422..DSL T=0.03 |
3 | ||
| S2212-91240 |
S05C..XZU412,422..DSL T=0.50 |
3 | ||
| S2288-56690 |
S05C..XZU412,422..DSL T=0.12 |
3 | ||
| S2288-56710 |
S05C..XZU412,422..DSL T=0.18 |
3 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| S2211-71310 |
S05C..XZU412,422..DSL |
4 | ||
| 22196 - SCREW, FUEL INLET FOLLOW | ||||
| S2283-51110 |
S05C..XZU412,422..DSL |
1 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2284-71900 |
S05C..XZU412,422..DSL |
2 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| S2284-71900 |
S05C..XZU412,422..DSL |
2 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| S2213-11200 |
S05C..XZU412,422..DSL |
2 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| S2213-11200 |
S05C..XZU412,422..DSL |
2 | ||
| Common parts | ||||
| 90099-01501 | ||||
| S2213-21730 | ||||
| S2281-51310 | ||||
| S2281-51620 | ||||
| S2282-51380 | ||||
| S2283-51310 | ||||
| S2284-71950 | ||||
| S2285-71060 | ||||
| S2287-71100 | ||||
| S2287-71720 | ||||
| S2288-52290 | ||||
| S2288-56740 | ||||
| SL722-02215 | ||||
| Linked diagrams | ||||
| 2206 | ||||
