XZU412L-TKMRS3 (2002)
Toyota Dyna
(0212- )S05C..XZU412,422..GEN..DSL
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

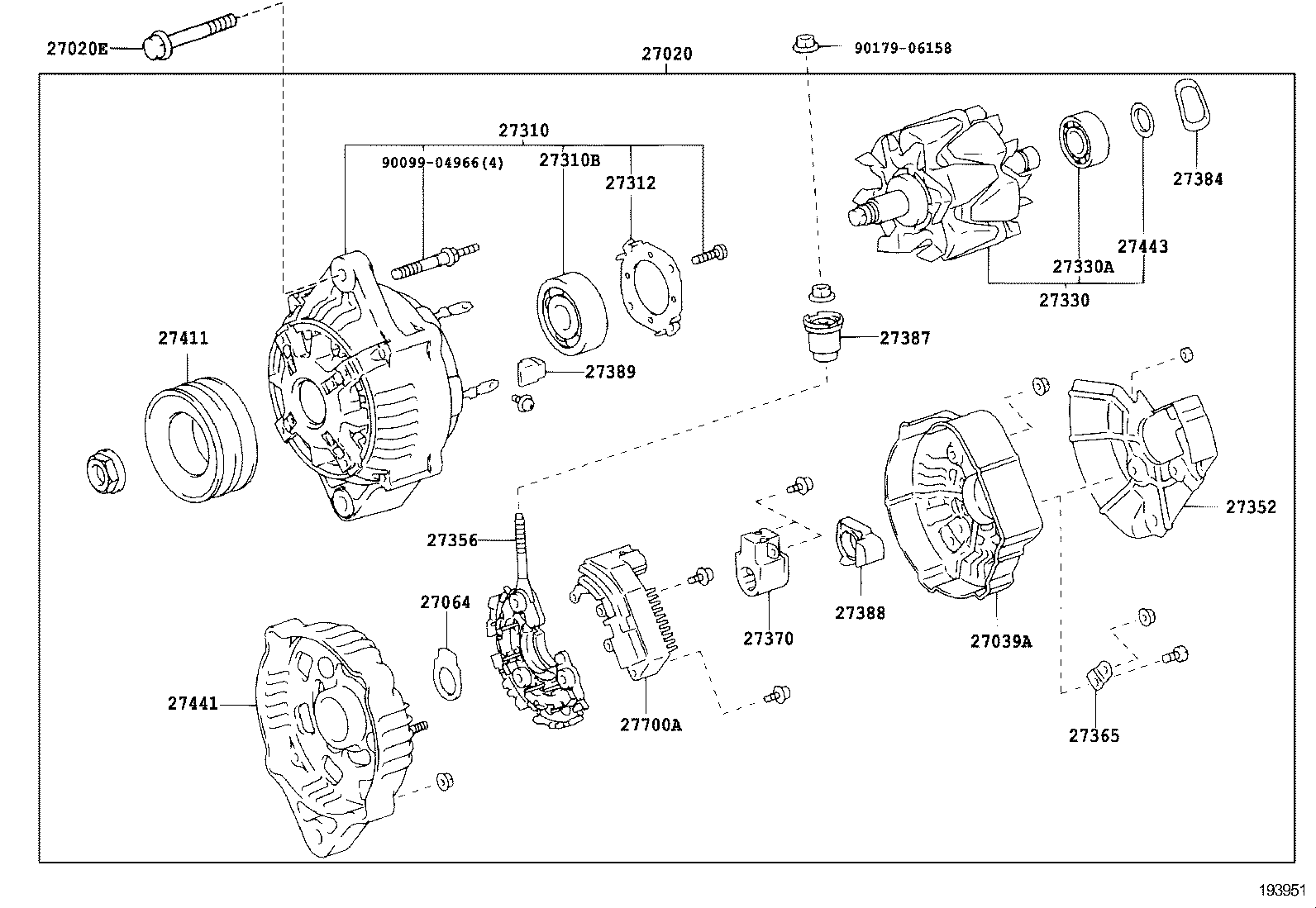

| 27020 - ALTERNATOR ASSY | ||||
| 27060-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN 24V 50A |
1 | ||
| 27060-78090 |
S05C..XZU412,422..GEN..DSL 24V 30A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
S05C..XZU412,422..5F |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-89107 |
S05C..XZU412,422..GEN..DSL 24V 30A |
1 | ||
| 27310-58080 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN 24V 50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58050 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89101 |
S05C..XZU412,422..GEN..DSL |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-89103 |
S05C..XZU412,422..GEN..DSL |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN 24V 50A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89102 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN 24V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-89101 |
S05C..XZU412,422..GEN..DSL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
S05C..XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-04966 | ||||
| 90179-06158 | ||||
