XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422..GEN..DSL

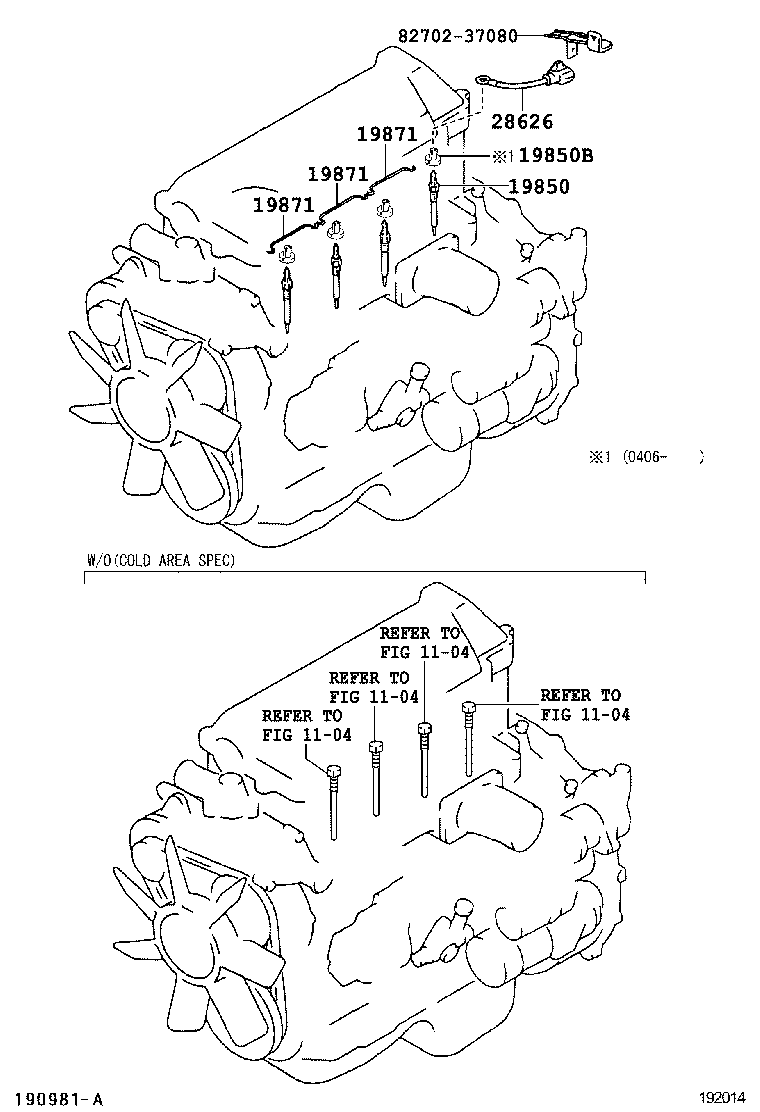

Click highlighted areas on diagram

diagram 1104 1104 1104 1104 19850 19850B 19871 19871 19871 28626 8270237080
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-78060

S05C..XZU412,422..GEN..DSL

*BV-GV=24V-23V

 4
19850-89101

S05C..XZU412,422..GEN..DSL

*BV-GV=24V-23V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

S05C..XZU412,422..GEN..DSL

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19879-89101

S05C..XZU412,422..GEN..DSL

 3
19871 - CONNECTOR, GLOW PLUG NO.1
19879-89101

S05C..XZU412,422..GEN..DSL

 3
19871 - CONNECTOR, GLOW PLUG NO.1
19879-89101

S05C..XZU412,422..GEN..DSL

 3
28626 - WIRE, GLOW PLUG
28626-78010

S05C..XZU412,422..GEN..DSL

 1
Common parts
82702-37080
Linked diagrams
1104
