XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422..DSL

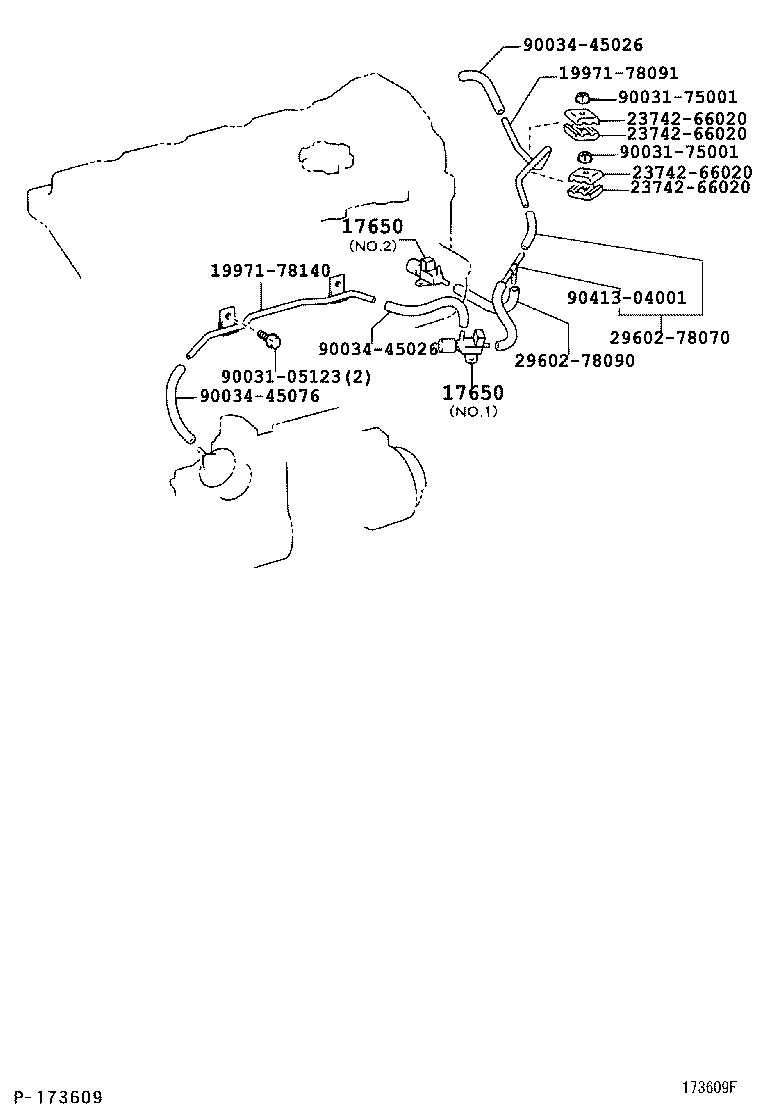

Click highlighted areas on diagram

diagram 17650 17650 1997178091 1997178140 2374266020 2374266020 2374266020 2374266020 2960278070 2960278090 9003105123 9003175001 9003175001 9003445026 9003445026 9003445076 9041304001
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89470-37040

S05C..XZU412,422..DSL

NO.2

 1
89470-37010

J05C,S05C..XZU412,420,422,430..DSL

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-37040

S05C..XZU412,422..DSL

NO.2

 1
89470-37010

J05C,S05C..XZU412,420,422,430..DSL

NO.1

 1
Common parts
19971-78091
19971-78140
23742-66020
29602-78070
29602-78090
90031-05123
90031-75001
90034-45026
90034-45076
90413-04001
