XZU412L-TKMRS3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422..DSL

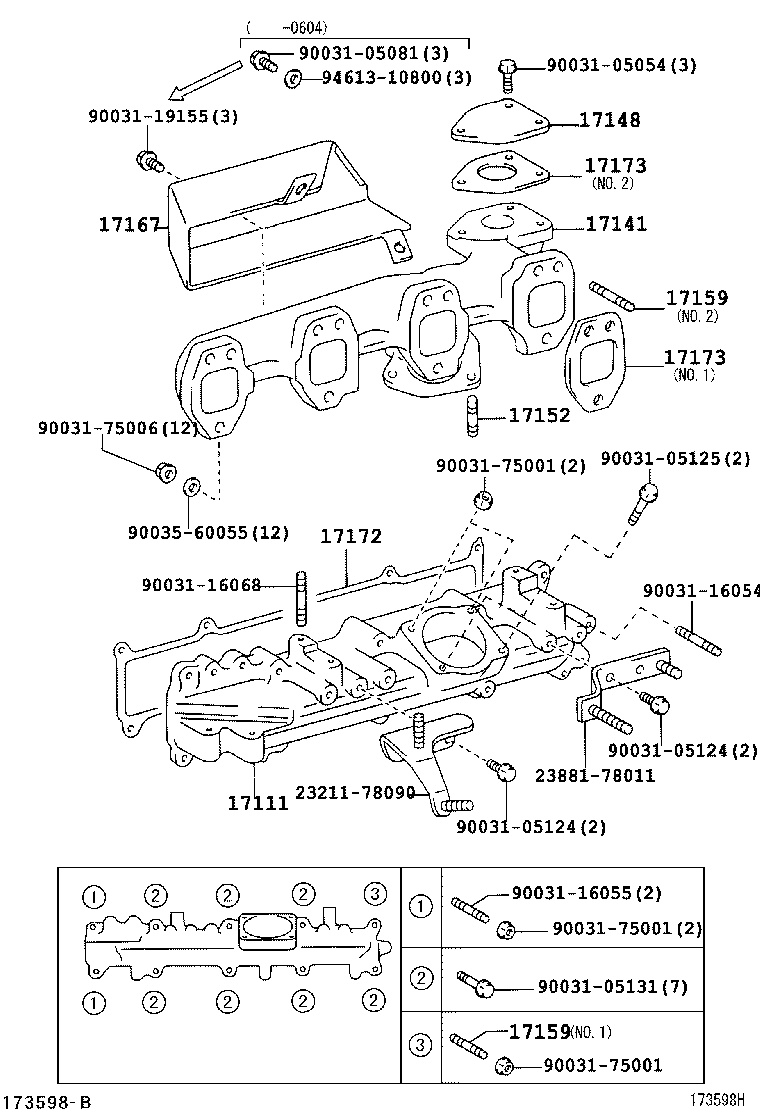

Click highlighted areas on diagram

diagram 17111 17141 17148 17152 17159 17159 17167 17172 17173 17173 2321178090 2388178011 9003105054 9003105081 9003105124 9003105124 9003105125 9003105131 9003116054 9003116055 9003116068 9003119155 9003175001 9003175001 9003175001 9003175006 9003560055 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-78040

S05C..XZU404,41#,422,424,434

 1
17111-78070

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
17141 - MANIFOLD, EXHAUST
17141-78031

S05C..XZU412,422..DSL

 1
17141-78030

J05C,S05C..XZU412,420,422,430..DSL

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-78010

S05C..XZU412,422..DSL

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90031-16063

S05C..XZU412,422..DSL

 3
90031-16091

S05C..XZU412,422..DSL

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16054

S05C..XZU412,422..DSL

NO.1

 2
90031-16069

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16054

S05C..XZU412,422..DSL

NO.1

 2
90031-16069

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

NO.2

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-78040

S05C..XZU412,422..DSL

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-89102

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78030

S05C..XZU412,422..DSL

NO.2

 1
17173-89102

S05C..XZU412,422..DSL

NO.1

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78030

S05C..XZU412,422..DSL

NO.2

 1
17173-89102

S05C..XZU412,422..DSL

NO.1

 4
Common parts
23211-78090
23881-78011
90031-05054
90031-05081
90031-05124
90031-05125
90031-05131
90031-16054
90031-16055
90031-16068
90031-19155
90031-75001
90031-75006
90035-60055
94613-10800
