XZU412L-TKMRS3 (2002)
Toyota Dyna

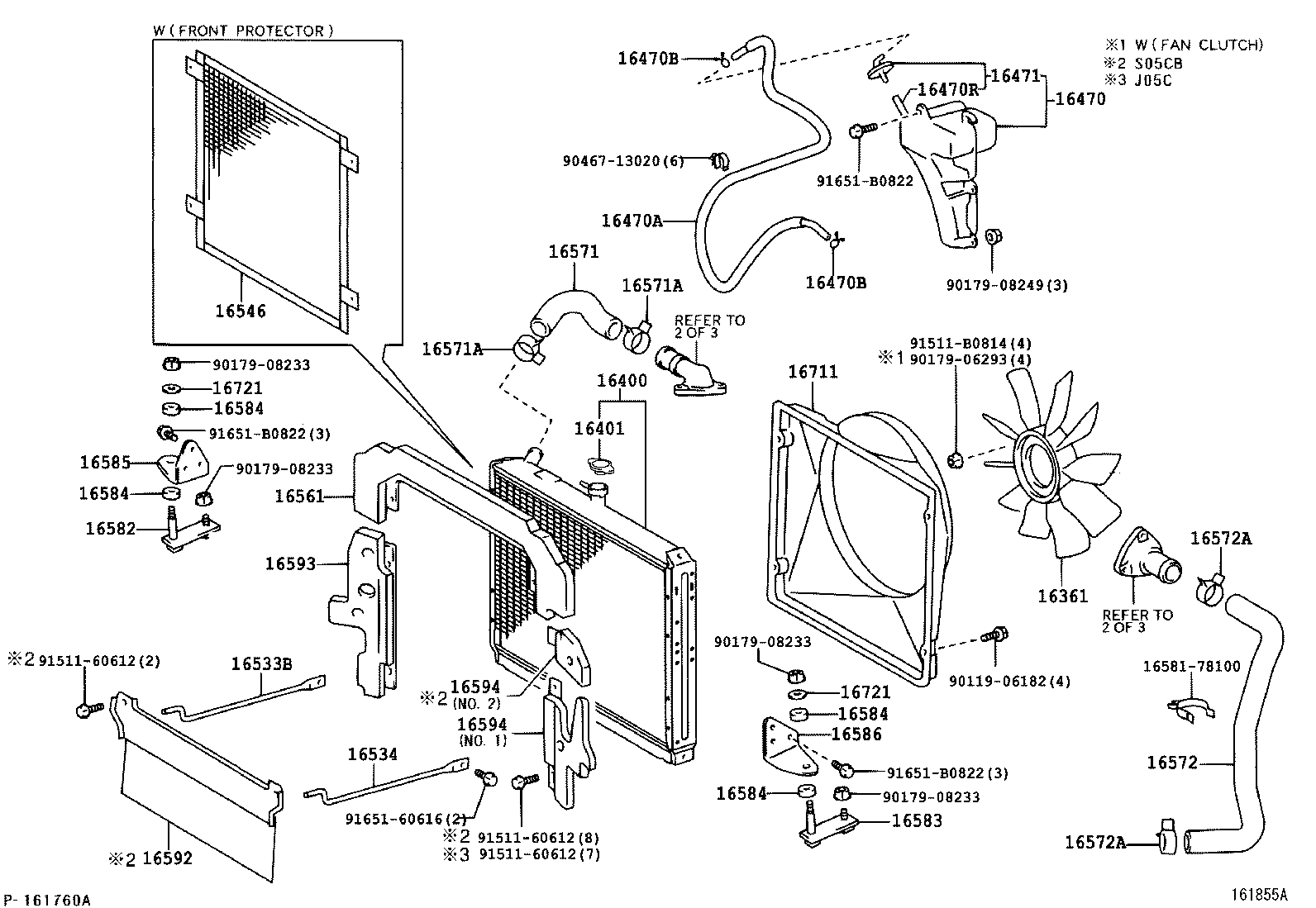

ILLUST NO. 1 OF 2(0212- )J05C,S05C..XZU412,420,422,430..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78030 |
S05C..XZU412,422..GEN..DSL W(FAN CLUTCH) |
1 | ||
| 16361-78080 |
S05C..XZU412,422..DSL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78230 |
S05C..XZU412,422..DSL |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-78100 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78070 |
S05C..XZU412,422..DSL L=1690 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78030 |
J05C,S05C..XZU412,420,422,430..DSL |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78030 |
J05C,S05C..XZU412,420,422,430..DSL |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-78010 |
S05C..XZU412,422..DSL |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78090 |
S05C..XZU412,422..DSL |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78070 |
S05C..XZU412,422..DSL |
1 | ||
| 16572-78071 |
S05C..XZU412,422..DSL |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16583-78020 |
S05C..XZU412,422..DSL |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78020 |
S05C..XZU412,422..DSL |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU412,422..DSL |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU412,422..DSL |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU412,422..DSL |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU412,422..DSL |
4 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78020 |
S05C..XZU412,422..DSL |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78040 |
S05C..XZU412,422..DSL |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78041 |
S05C..XZU412,422..DSL |
1 | ||
| 16593-78040 |
J05C,S05C..XZU412,420,422,430..DSL |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78041 |
S05C..XZU412,422..DSL |
1 | ||
| 16594-78080 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 16594-78040 |
J05C,S05C..XZU412,420,422,430..DSL NO.1 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78041 |
S05C..XZU412,422..DSL |
1 | ||
| 16594-78080 |
S05C..XZU412,422..DSL NO.2 |
1 | ||
| 16594-78040 |
J05C,S05C..XZU412,420,422,430..DSL NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78030 |
S05C..XZU412,422..DSL |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
S05C..XZU412,422..DSL |
2 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
S05C..XZU412,422..DSL |
2 | ||
| Common parts | ||||
| 16581-78100 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91511-B0814 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
